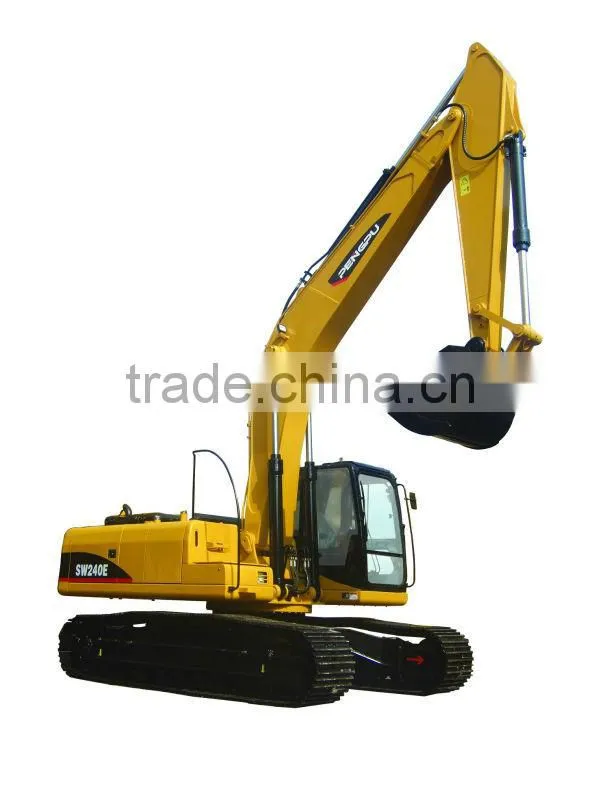

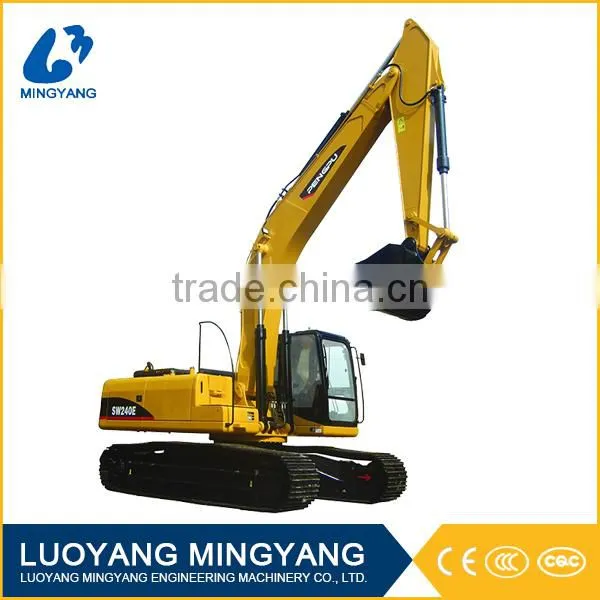

Hot Selling SW240E Crawler Excavator

Name: Hot Selling SW240E Crawler Excavator
Brand: PENGPU
SKU: 140742736

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

PENGPU

Model Number:

SW240E

Luoyang Mingyang Engineering Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

According to the contract

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name PENGPU

Model Number SW240E

Condition New

Moving Type Crawler Excavator

Operating Weight 24200kg

Bucket capacity 1.1m3

Maximum Digging Height 9730mm

Maximum Digging Depth 6930mm

Machine Weight 24200kg

Max Digging Radius 10360mm

After-sales Service Provided Engineers available to service machinery overseas

SW240E EXCAVATOR

NO.	DESCRIPTION			SPECIFICATON
	Main machine
	(1)	Working weight		24200kg
	(2)	Bucket capacity		1.1M3
	(3)	Track width		600mm/800mm
	(4)	Transport dimension		1005529903280(mm)
	(5)	Overall dimension	Length of track on ground	3840mm
			Ground clearance of counter weight	1070mm
			Tail swing radius	2950mm
			Total length	10045mm
			Total height	3280mm
			Total width	2990mm
			Track gauge	2390mm
			Min. ground clearance	460mm
			Track width	600/800mm
			Track height	950mm
	(6)	Working range	Max. working radius	10360mm
			Max. digging depth	6930mm
			Max. vertical digging depth	6320mm
			Max. digging height	9730mm
			Max. dumping height	6810mm
			Min. swing radius	3920mm
	(7)	Performance	Ground pressure	48Kpa/37.5Kpa
			Swing speed	12r/min
			Travelling speed high/low	5.5/3.5km/h
			Grade ability	35°
			Noise inside the cab	≤80db(A)
			Fuel tank	340L
	(5)	Engine	Company	Cummins 6BTA5.9-C
			Type	6 cylinder, inline, turbocharged
			Rated horsepower	133KW/2000rpm
			Bore-stroke	102*120mm
			Displacement	5.9L
			Min. fuel consumption	≤228g/kw.h
			Max. torque /revolution	651Nm/1500rpm
