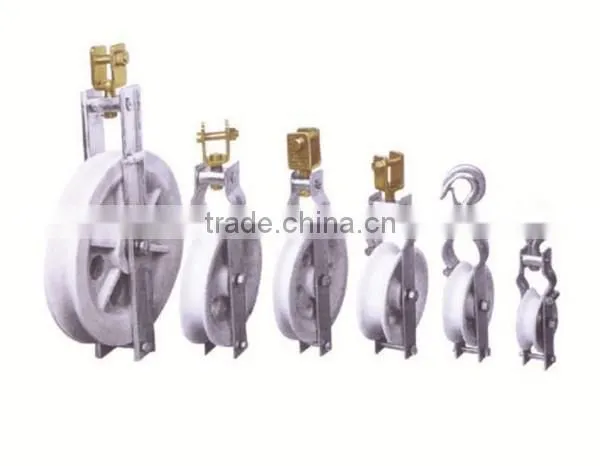

Single Sheave Stringing Nylon Pulley
Application
Single Sheave Stringing Nylon Pulley is used for releasing the aluminum wire, ACSR, insulated wire in pole and tower erection.
Features
The wheel groove can be through with clamp pipe, aluminum tube, connector etc..
The material is aluminum alloy and MC nylon .
Pulley pendant is combined plate and hook type.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.
Our Values
1,Take First-Class Quality as Target and First-class Service.
2,As Responsibility, To Succeed By Scientific Management.
3,Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data for Single Sheave Stringing Nylon Pulley
| Product No. | Model Type | Applicable Conductor ACSR(mm2) | Rated Load(KN) | Weight(kg) | Matetrial of wheel |
| 80344 | SHDN-120*30 | 25-70 | 5 | 1.5 | MC Nylon |
| 80345 | SHDN-160*40 | 95-120 | 10 | 2.4 | MC Nylon |
| 80346 | SHDN-200*40 | 150-240 | 15 | 2.6 | MC Nylon |
| 80347 | SHDN-200*60 | 150-240 | 15 | 3.1 | MC Nylon |
| 80348 | SHDN-250*40 | 150-240 | 20 | 3.7 | MC Nylon |
| 80349 | SHDN-250*60 | 300-400 | 20 | 3.9 | MC Nylon |
| 80350 | SHDN-270*60 | 300-400 | 20 | 4.4 | MC Nylon |
| 80351 | SHDN-320*60 | 300-400 | 20 | 7.5 | MC Nylon |
| 80352 | SHDN-408*75 | 400-500 | 20 | 11 | MC Nylon |
