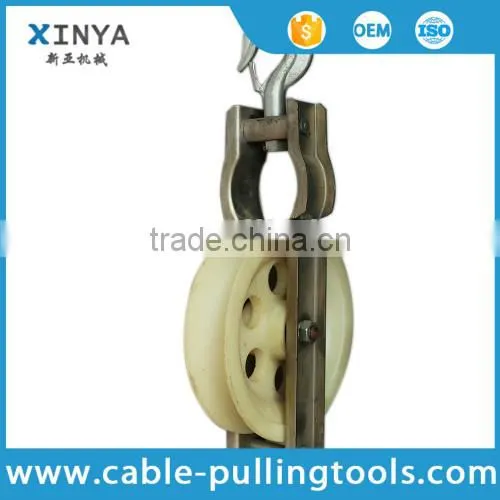

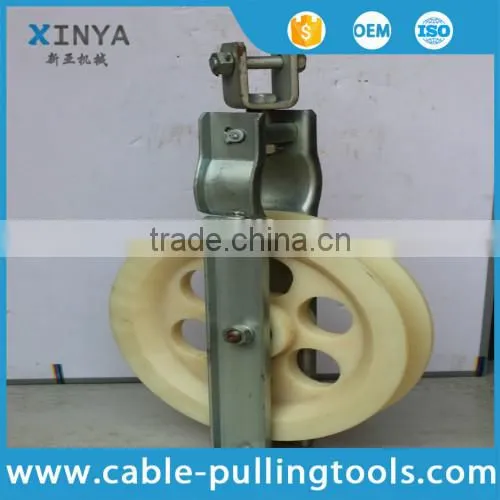

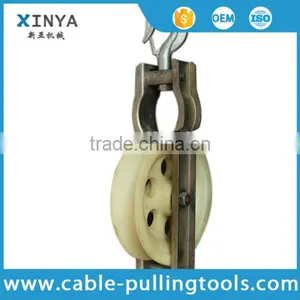

Model SHDN-320x60 Single Sheave Stringing Pulley Block for ACSR Conductor
US$ 20 - 200
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Type:
Other, Other, Single Sheave Stringing Block
Material:
Other, nylon, MC Nylon
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2T Nylon Single Sheave Stringing Pulley Block 250x60mmUS$ 20 - 200MOQ: 5 Pieces -
Model SHDN-200x60 Single Sheave Pulley Block for Stringing With Nylon WheelUS$ 20 - 200MOQ: 5 Pieces
-
Single Sheave Stringing Pulley Block 408x80mm Suitable for ACSR Conductor 400-500mm2US$ 50 - 70MOQ: 5 Pieces
-
Aluminum Cable Pulling Roller Cable Pulley Block for 50-150mm CableUS$ 10 - 60MOQ: 10 Pieces
-
10KN Two Sheave Steel Hoisting Pulley Block for 6mm Wire RopeUS$ 14 - 20MOQ: 5 Pieces
Type
Other, Other, Single Sheave Stringing Block
Material
Other, nylon, MC Nylon
Place of Origin
Jiangsu, China
Brand Name
XINYA
Model Number
SHDN-320x60
Model SHDN-320x60 Single Sheave Stringing Pulley Block for ACSR Conductor
Use and Characteristic
Pulley Block With Hook Single Sheave is used for releasing the aluminum wire, ACSR, insulated wire in pole and tower erection.
The wheel groove can be through with clamp pipe, aluminum tube, connector etc..
The material is aluminum alloy and MC nylon .
Pulley pendant is combined plate and hook type.

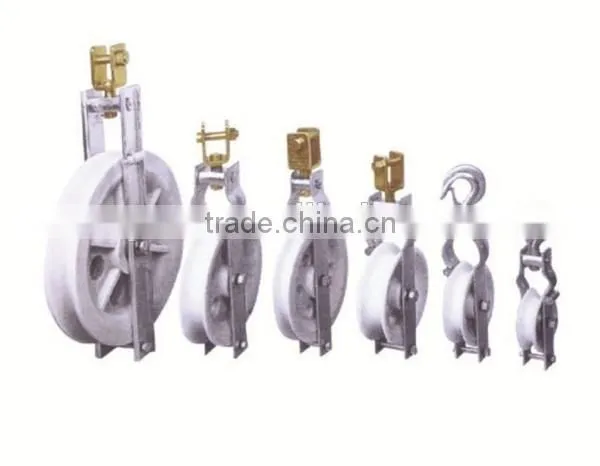

Technical Data for Pulley Block With Hook Single Sheave
| Product No. | Model Type | Applicable Condcutor(mm2) | Rated Load(KN) | Weight(kg) | Material of Wheel |
| 80335 | SHD-120*30 | LGJ25-70 | 5 | 2 | Aluminum wheel |
| 80336 | SHD-160*40 | LGJ95-120 | 10 | 3.2 | Aluminum wheel |
| 80337 | SHD-200*40 | LGJ150-240 | 15 | 3.8 | Aluminum wheel |
| 80338 | SHD-200*60 | LGJ150-240 | 15 | 4.2 | Aluminum wheel |
| 80339 | SHD-250*40 | LGJ150-240 | 20 | 5.2 | Aluminum wheel |
| 80340 | SHD-250*60 | LGJ300-400 | 20 | 5.5 | Aluminum wheel |
| 80341 | SHD-270*60 | LGJ300-400 | 20 | 6.8 | Aluminum wheel |
| 80342 | SHD-320*60 | LGJ300-400 | 20 | 10.5 | Aluminum wheel |
| 80343 | SHD-400*80 | LGJ400-500 | 20 | 12 | Aluminum wheel |
| Product No. | Model Type | Applicable Conductor ACSR(mm2) | Rated Load(KN) | Weight(kg) | Matetrial of wheel |
| 80344 | SHDN-120*30 | 25-70 | 5 | 1.5 | MC Nylon |
| 80345 | SHDN-160*40 | 95-120 | 10 | 2.4 | MC Nylon |
| 80346 | SHDN-200*40 | 150-240 | 15 | 2.6 | MC Nylon |
| 80347 | SHDN-200*60 | 150-240 | 15 | 3.1 | MC Nylon |
| 80348 | SHDN-250*40 | 150-240 | 20 | 3.7 | MC Nylon |
| 80349 | SHDN-250*60 | 300-400 | 20 | 3.9 | MC Nylon |
| 80350 | SHDN-270*60 | 300-400 | 20 | 4.4 | MC Nylon |
| 80351 | SHDN-320*60 | 300-400 | 20 | 7.5 | MC Nylon |
| 80352 | SHDN-408*75 | 400-500 | 20 | 11 | MC Nylon |
