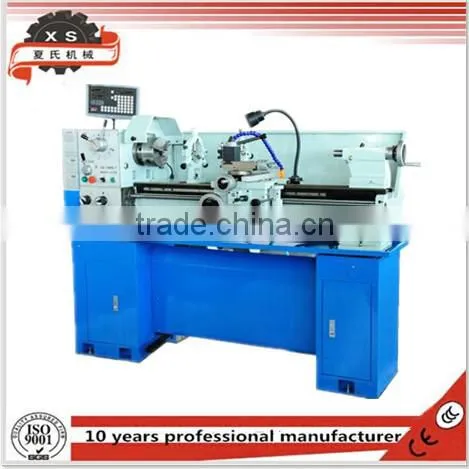

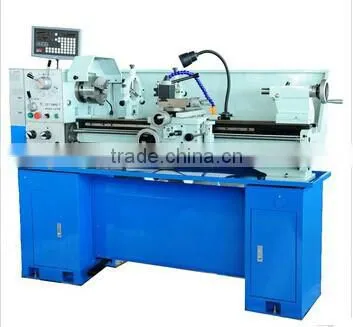

CZ1440G/1 Conventional Mini Lathe Bench Lathe for Sale
Product Description
Supersonic frequency hardened bed ways
Precision roller bearing for spindle
High quality steel, ground and hardened gear inside headstock
Easy and fast operating gearbox
Enough strong power motor
ASA D4 camlock spindle nose ,CZ1340G/1,CZ1440G/1
Various threads cutting functions available
| BENCH LATHE | CZ1340G/1 CZ1440G/1 | |||
| Main data | Swing over bed | φ 330mm / φ 355mm | ||
| Swing over carriage | φ 195mm / φ 220mm | |||
| Swing over gap | φ 476mm / φ 500mm | |||
| Width of bed-way | 186mm | |||
| Distance between centers | 1000mm | |||
| Spindle | Taper of spindle | M. T. 5 | ||
| Spindle diameter | φ 38mm | |||
| Step of speed | 8 Steps | |||
| Range of speed | 70-2000 rpm | |||
| Head | D1-4 | |||
| Thread and feed system | Metric thread | 26kinds (0.4~7mm) | ||
| Inch thread | 34kinds(4~56T. P. I) | |||
| Module thread | 16 kinds(0.35~5M. P) | |||
| Diametral thread | 36 kinds(6~104D. P) | |||
| Longitudinal feeds | 0.052~1.392mm (0.002” ~0.0548” ) | |||
| Cross feeds | 0.014~0.38mm (0.00055” ~0.015” ) | |||
| Main lead screw | Diameter lead screw | φ 22mm(7/8” ) | ||
| Pitch of lead screw | 3mm or 8T. P. I | |||
| Saddle and carriage | Saddle travel | 1000mm | ||
| Cross travel | 170mm | |||
| Compound travel | 74mm | |||
| Tailstock | Barrel travel | 95mm | ||
| Barrel diameter | φ 32mm | |||
| Taper of center | M. T. 3 | |||
| Power | Motor power | 1.5KW (2HP) | ||
| Motor for coolant system’ s power | 0.04KW (0.055HP) | |||
| Shipment data | Machine(L× W× H) | 1920× 760× 760 (mm) | ||
| Stand(left) (L× W× H) | 440× 410× 700 (mm) | |||
| Stand (right)(L× W× H) | 370× 410× 700 (mm) | |||
| Machine | 510/565 (kgs) | |||
| Stand | 70/75 (kgs) | |||
| Loading qauntity/20" container | 22 pcs | |||
1. 24-hours technical support by E-mail or telephone
2. Provide extra accessories for the machine
Also provide service of make program according to your drawings
Customized or special design is OK.
3. All of our products’ warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
Contact
1.Our working time: 8:30am~5:30pm
2. All inquiries will be replied within 24 hours, So please feel free to send us your
inquiry.
3. when our trade manager is off line, please feel free to leave a message, and tell us the
products with model you are interested in, and your E-mail address, we will reply to you within
24 hours.
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
