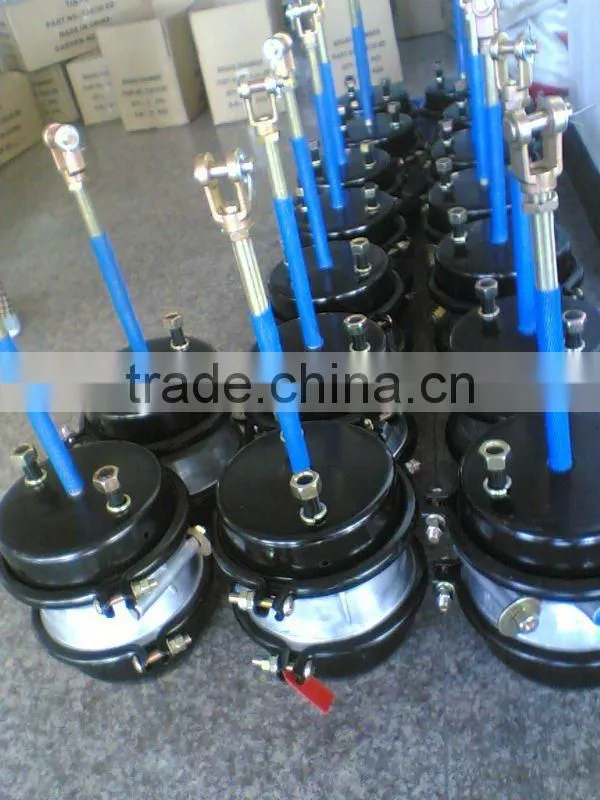

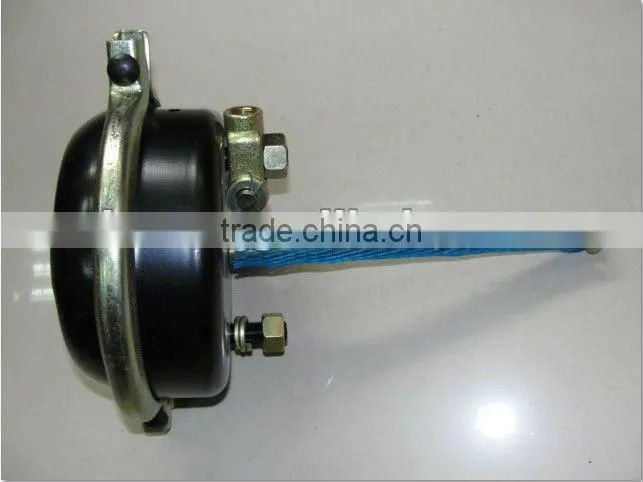

Diaphragm Brake Chamber

Diaphragm Brake Chamber thumbnail-1
Diaphragm Brake Chamber photo-1
US$ 6 - 21 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Type:
Brake Chamber
Truck Model:
Other, All truck, trailer
Material:
Rubber, Alloy,Steel,Aluminium
Contact Supplier Request Quote Chat Now
Xiamen Tinmy Autoparts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Brake Chamber
Truck Model Other, All truck, trailer
Material Rubber, Alloy,Steel,Aluminium
Size T30
OEM No. T30

Specifications

Diaphragm Brake Chamber
1)Type:Single & Double Room
2)Size: T12,T16,T20,T24,T30, T2024,T2424,T2430,T3030
3)ISO/TS16949

Diaphragm Brake Chamber:
1. Types: Single Room & Double Room

   (1) Single Air Brake Chamber: T09, T12, T16, T20, T24, T30

   (2) Double Air Brake Chamber: T2024, T2424, T2430, T3030
        DD, DP, Sealed type Double Air Brake Chamber
2. Color: Black, Golden Yellow

3. High quality, Competitive price, Fast delivery
4. Certificate: ISO9001:2000/TS16949



Single Room Air Brake Chamber:

Item No. Stroke R1 R2 L1 L2 L4  Push Rod Thread Air Inlet Thread Mounting Bolt Thread Weight
  mm mm mm             kg
TMC-T2024 64 110 88 220±5 75±5 50±4 M16*1.5 M16*1.5 M16*1.5 7.78
TMC-T2424 64 116 93 224±5 240±5 206±4 5/8"-18UNF2A 3/8"-18NPTF 5/8-11UNC2A 8.1
TMC-T2430 64 163 184 234±5 240±5 206±4 5/8"-18UNF2A 3/8"-18NPTF 5/8-11UNC2A 9.2
TMC-T3030 64 125 105 238±5 285±5 255±5 5/8"-18UNF2A 3/8"-18NPTF 5/8-11UNC2A 9.5



Double Room Air Brake Chamber:

Item No. Stroke R1 R2 L1 L2 L4 Push Rod Thread Air Inlet Thread Mounting Bolt Thread Weight
  mm mm mm             kg
TMC-T09 44.5 87 68 104±5 106±5 130±3 1/2"-20UNF 1/4"-18NPTF 7/16"-14UNC 1.9
TMC-T12 44.5 125 105 104±5 160±5 130±3 1/2"-20UNF 3/8"-18NPTF 7/16"-14UNC 2.3
TMC-T16 57 107 83 109±3 163±5 160±3 1/2"-20UNF 3/8"-18NPTF 7/16"-14UNC 3
TMC-T20 57 11 88 84±5 240±5 200±4 5/8"-18UNF2A 3/8"-18NPTF 5/8-11UNC2A 4
TMC-T24 64 116 93 123±5 240±5 206±4 5/8"-18UNF2A 3/8"-18NPTF 5/8-11UNC2A 4.1
TMC-T30 64 125 105 123±5 285±5 255±4 5/8"-18UNF2A 3/8"-18NPTF 5/8-11UNC2A



Diaphragm Brake ChamberDiaphragm Brake Chamber

Diaphragm Brake ChamberDiaphragm Brake Chamber
