Specifications
rotary dryer price1.High efficiency Rotary Dryer
2.Reasonable structure dryer
3.Low energy consumption
4.Operate reliable

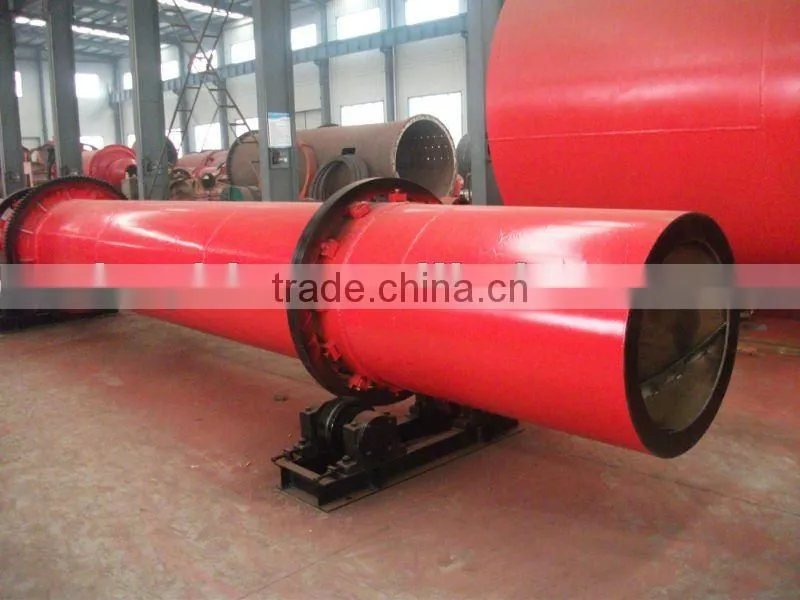

high efficiency rotary dryer with reasonable price
The main internal structure of rotary drier:
In order to increase the material evenly distributed in the rotor parts of the cross section in good contact with the drying medium, in the cylinder body installation raise plates.There are several types of raise plate.
1). Lifting type: For large or easy to bond the material in the tube wall.
2).Four formats type: Suitable for big density, not crisp or not easily scattered materials.The raise plate will be divided into four pane,and were mutually connected fan-shaped workout room, Materials and the contact surface of the hot gas than large of the lifting type, And also can increase of the filling material rate and reduce material landing height and reduce dust quantity loss and so on.
3).Cross-shaped or frame-shaped:applicable to brittle and easy dispersion small pieces of material,make the material can be evenly dispersed in cylinder whole section.
4).Sleeve type:For double entry Heat transfer for the double (or half the diameter heating) rotary drum dryer raise plate.
5).Separate format(fan): For very fine particles and the material prone to flying powder.materials accumulate on grid board when it into,then cylinder rotates, the material is turning and continue contacts with the hot gases, at the same time, the decrease of height landing, reducing the dry material being gas away possibility.
Main technical parameters of rotary dryer:
Production specifications (m) |
Production capacity (t/h) |
Motor |
Reductor |
Weight (t) |
||
Model |
Power(kw) |
Model |
Speed ratio |
|||
φ1×10m |
1.0-3.5 |
Y132M2-6 |
5.5 |
ZL350-|I-25 |
|
7.5 |
φ1.2×10m |
2.5 |
Y160M-6 |
7.5 |
ZL50-16-1 |
|
13.5 |
φ1.5×12m |
3.3-4.9 |
180L-6 |
15 |
JZQ500-|I|-2F |
|
18.9 |
φ1.5×15m |
4-6 |
Y200L-6 |
18.5 |
JZQ650-|I|2F |
|
21 |
φ1.8×12m |
4-6 |
Y160L-6 |
18.5 |
ZQ50-16|I-2 |
|
22.83 |
φ2.2×12m |
7-12 |
Y200L-6 |
22 |
JZQ650-|I| |
16.46 |
37.6 |
φ2.2×14m |
7-12 |
Y200L-6 |
22 |
JZQ650-|I| |
31.5 |
40 |
φ2.2×16m |
12 |
Y225M-6 |
22 |
JZQ750-|I| |
31.5 |
45 |
φ2.4×14m |
12 |
Y250M-6 |
37 |
|
31.5 |
51 |
φ2.4×18m |
10-13 |
Y250M-6 |
37 |
ZL85-13-1 |
27.16 |
54 |
φ2.4×20m |
10-14 |
Y250M-6 |
37 |
ZL85-13-1 |
27.16 |
54.14 |
φ3×20m |
25 |
Y280M-6 |
55 |
ZL100-16-1 |
41.52 |
78 |
φ3×25m |
32-36 |
YR280M-4 |
75 |
ZL100-16-1 |
41.52 |
104.9 |
