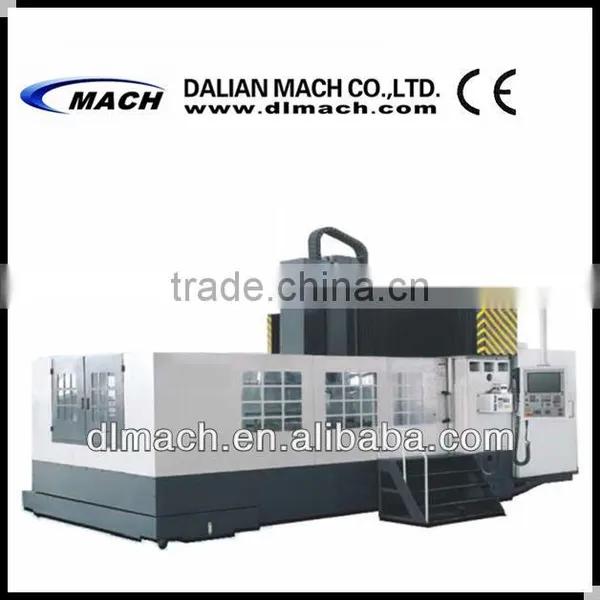

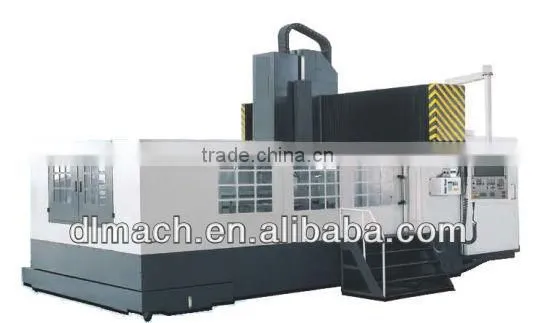

GMC1225A CNC gantry-type heavy cut machining center
1.Specification:
SPECIFICATION |
UNIT |
GMC1225A |
GMC1225(X LINEAR GUIDEWAY) |
|
TABLE SIZE |
MM |
2500×1250 |
2500×1250 |
|
SPINDLE HOLE TAPER |
|
BT50 |
BT50 |
|
TABLE LONGITUDINAL TRAVEL |
MM |
2000 |
2700 |
|
SLIDE CARRIAGE CROSS TRAVEL |
MM |
1700 |
1700 |
|
MILLING HEAD VERTICAL TRAVEL |
MM |
750 |
1000 |
|
MAX.LOAD OF TABLE |
KG |
6000 |
5000 |
|
NO./WIDTH/DISTANCE OF T-SLOT |
MM |
7-28-160 |
7-28-160 |
|
GANTRY WIDTH |
MM |
1600 |
1750 |
|
DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE |
MM |
150-900 |
150-1150 |
|
SPINDLE SPEED |
R/MIN |
30-4000 |
30-3200 |
|
SPINDLE MOTOR POWER |
KW |
15/18.5 |
15/18.5 |
|
FEED SPEED |
X,Y |
MM/MIN |
1-4000 |
1-4000 |
Z |
MM/MIN |
1-2000 |
1-2000 |
|
RAPID FEED |
X,Y |
MM/MIN |
10000 |
12000 |
Z |
8000 |
8000 |
||
POSITIONING ACCURACY(X,Y,Z) |
MM |
0.030,0.025,0.022 |
0.030,0.025,0.022 |
|
REPEAT POSITIONING ACCURACY |
MM |
0.014,0.013,0.012 |
0.014,0.013,0.012 |
|
OVERALL DIMENSION(L×W×H) |
MM |
7200×4000×4500 |
7200×4000×4500 |
|
NET WEIGHT |
KG |
24000 |
23000 |
|
Standard configuration:
1.FANUC 0i MD CNC system
2.Chain-type tool magazine capability 32 tools
Optional configuration:
1.HEIDENHATN ITNC320 or MITSUB-ISHI M70 CNC system
2.Chain-type tool magazine capability 40 tools
3.Taiwan GONG YANG N75 angular head
4.Automatic chip conveyor

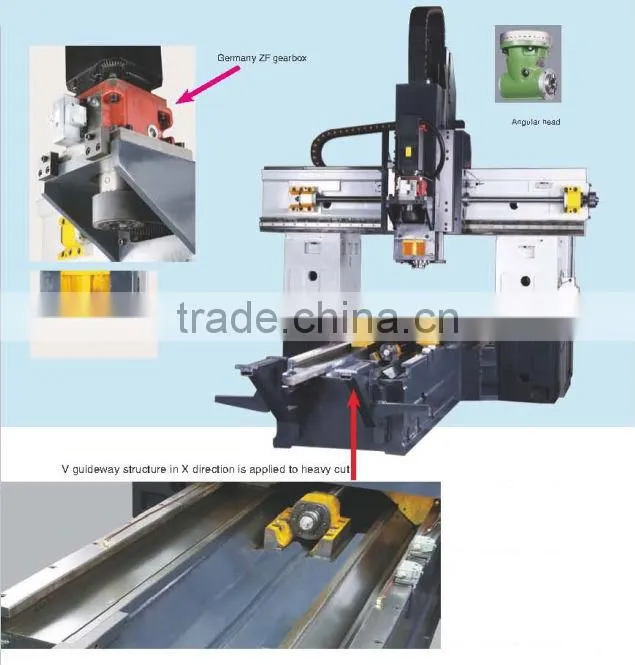

2. Parts of Machine:
3. About our company:
We are one of biggest manufacturer of producing CNC milling machine, Universal Milling Machine, CNC Lathe, etc in China. Our factory entered the top 8 machine tool builders in the world. Our universal milling machine sell to more than 100 countries and regions worldwide
...
