Help CenterGold Spiral Separator
Related Products
Specifications
1. Reliable performance.2. Convenient maintenance.
3. light weight,strong mobility...

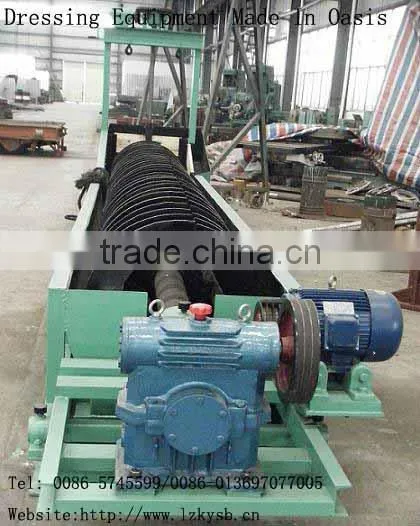

FG,FC Spiral classifier
Spiral classifier is suitable for ore, nonmetal materials were classified, dehydration, to take off the mud and demedium operation.
This series of hierachial machine using solid particle size, shape and density of different and who have different medium in the principle of settling velocity will mineral classification, mainly for the wet grinding system jade grinding units into closed-circuit circulation flow, grinding machine is available through the mineral fine grains of relief and coarse grained return sand two products.

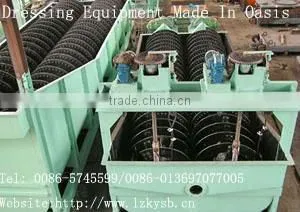

This hierachial machine points are: high dam type single hierachial machine, high dam type double helix sorting machine, sunk type single hierachial machine, sunk type double helix grade machine.
model |
spiral diameter |
spiral speed |
output |
power |
external form
|
weight |
|||
circulating |
overflow quantity |
Drive motor |
jacking motor
|
Kg |
|||||
|
mm |
r/min |
t/24h |
kw |
mm |
t |
|||
300 |
300 |
83-22 |
35-100 |
10-30 |
1.1 |
|
3840/645/835 |
690 |
|
500 |
500 |
8-15 |
54-260 |
77-130 |
1.5 |
|
5480/942/1270 |
1620 |
|
750 |
750 |
2-9 |
100-440 |
31-163 |
3 |
|
6720/1273/1580 |
2750 |
|
1000 |
1000 |
1.6-7.3 |
130-700 |
50-160 |
5.5 |
|
8000/1576/1934 |
4280 |
|
1200 |
1200 |
5-7 |
1140-1370 |
150 |
7.5 |
1.5 |
7970/1703/3080 |
7710 |
|
1500 |
1500 |
2.5-6 |
1120-2680 |
230 |
11 |
3 |
10196/1976/4080 |
11280 |
|
2000 |
2000 |
3.6 |
3240-5940 |
400 |
15 |
3 |
40590/4634/4491 |
19930 |
|
2400 |
2400 |
3.6 |
13600 |
1100 |
22 |
4 |
12710/5436/5690 |
25500 |
|
Send Inquiry to This Supplier
