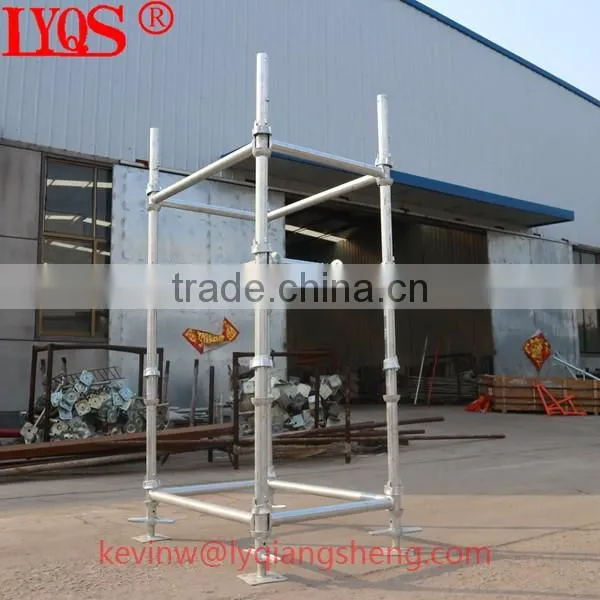

EN Standard Steel Cuplock Scaffolding System
US$ 10 - 20
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
LYQS
Model Number:
Cuplock Scaffolding
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Scaffolding Systems Hot Dipped Galvanized Cuplock ScaffoldingUS$ 10 - 20MOQ: 100 Pieces -
Construction Tools Hot Dipped Galvanized Cuplock ScaffoldingUS$ 10 - 20MOQ: 100 Pieces
-
Cuplock Scaffolding Parts Forged Top Cup for Cuplock StandardUS$ 0.8 - 1MOQ: 10000 Pieces
-
Made in China Best Price Construction Cuplock Scaffolding for SaleUS$ 1,000 - 1,500MOQ: 24 Tons
-
Cuplock System Standard Steel Best Price ScaffoldingUS$ 1,000 - 1,500MOQ: 25 Tons
Place of Origin
Shandong, China
Brand Name
LYQS
Model Number
Cuplock Scaffolding
Cuplock Scaffolding
Specification
1. Product: Cuplock scaffold
2. Standard Specification: 48.3*3.2mm
3. Material: Q235, Q345
4. Surface: Hot dipped Galvanized, Painted
5. Application: Highways / Subways, Bridges, Tunnels and Fire Electrical Engineering, Marine Engineering
| Componets Name | Sizes |
| Cuplock standards ( mm) | 500,1000,1300,1500,1800,2000,2300,2500,2800,3000 |
| Cuplock ledger ( mm) | 600,900,1000,1200,1300,1600,1800,2500 |
| Transom Beam ( mm) | 565,795,1200,1300,1800,2500 |
| Diagonal brace (mm) | 1300*2000, 1800*2000,2500*2000 |
| Bracket (mm) | 565/6.6kg, 795/7.6kg |

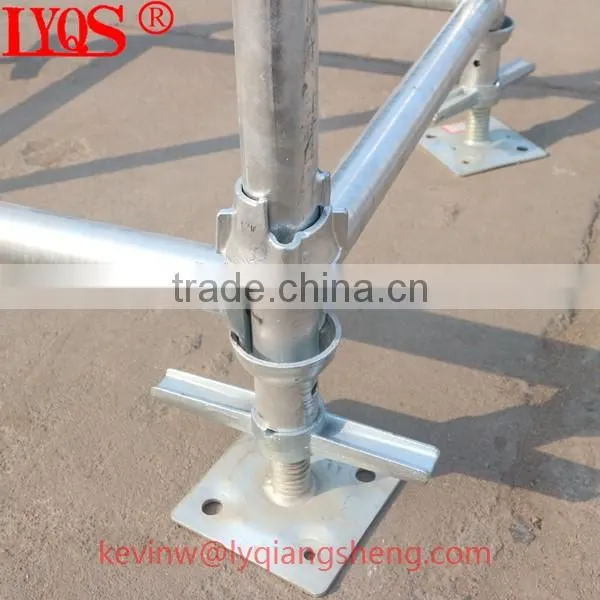

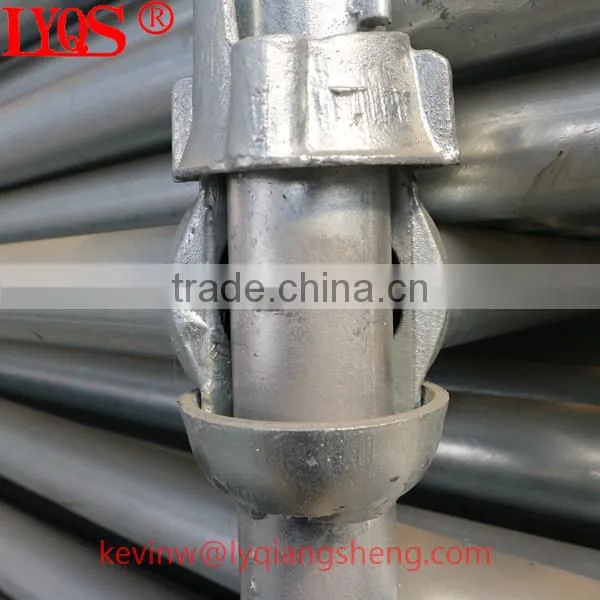

| Top Up | Bottom Cup | Ledger Blade | |
| Material | malleable casting iron,drop forged steel | pressed carbon mid steel plate | malleable casting iron,drop forged steel |
| Type | 3 lugs & 4 lugs | closed & open | |
| Weight | 0.41kg -0.46kg | 0.19kg-0.22kg | 0.19kg-0.25kg |
| Surface | self color | self color | self color |

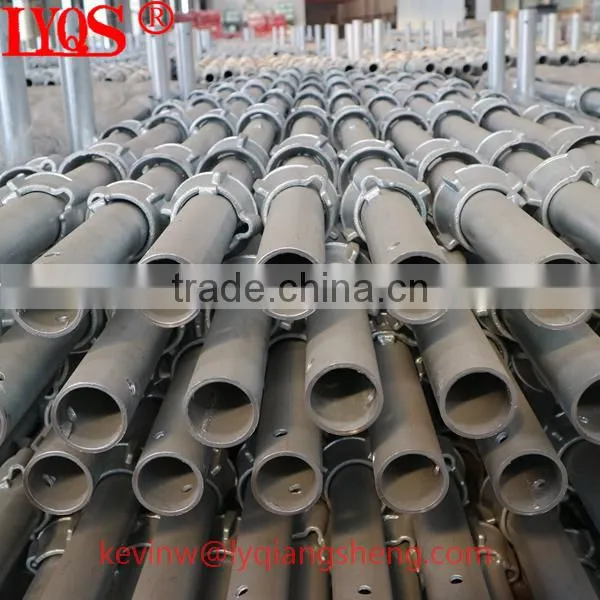

Detailed Imagines
Production
Cold rolled tube with better loading capacity.
Welding work by auto-welding machine
Finished by galvanization, powder coating or HDG

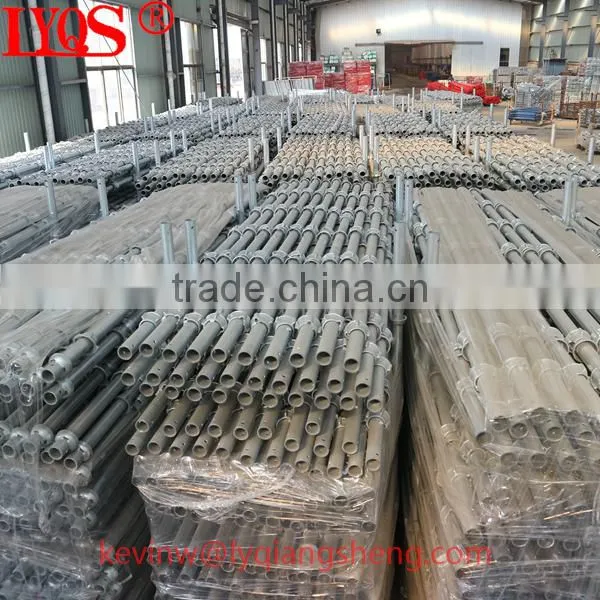

Package detailes
Steel pallet or we use the cuplock scaffolding parts
