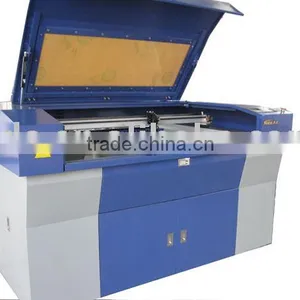

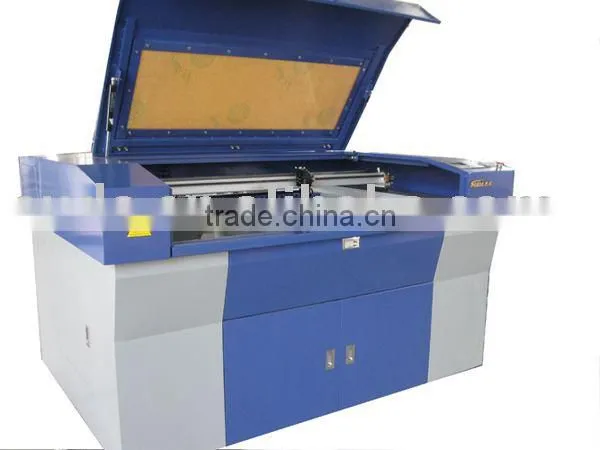

SELL SUDA ACRYLIC LASER MACHINE----SL1290

Name: SELL SUDA ACRYLIC LASER MACHINE----SL1290
Brand: SUDA
SKU: 144390720

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Laser Type:

CO2

Engraving Area:

1200*900

Engraving Speed:

3000

Tongxing Technology Development Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Laser Type CO2

Engraving Area 1200*900

Engraving Speed 3000

CNC or Not Yes

Cooling Mode Water Cooling

Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Graphic Format Supported PLT, DXF, BMP, DXP

Place of Origin Anhui, China

Brand Name SUDA

Model Number SL1290

Certification CE

Specifications

laser tube for 80w
DSP controlling system
lifting plateforma
CE certificate
can cut acrylic ,wood, and others

Laser engraving/cutting machine SL1290

Laser power :	80W100w
Laser type:	SL1290
Power supply:	AC220V±10%,50HZ
Working area:	1200*900mm
Max cutting speed:	200mm/sec
Max engraving speed:	2000mm/sec
Worktable:	Lifting platform (optional )
motor	Standard stepper, SERVO import from Japan ( optional)
Locating precision:	0.1mm
Min shaping character:	Engrving 0.8mm, cutting 2mm
Operating temperature:	0°c-45°c
Work degree of humidity	5-95%(have no Ning water)
Resolution ratio:	0.025mm
Control configuration:	Advanced DSP controlling system
Data transfer interface:	USB flash disk / directly from computer
System environment:	Above Window 2000, window XP
Cooling way:	Water cooling ,we present the chilling machine for each laser machine
Graphic format supported:	BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF, etc.
Compatible software	Transmit files directly form Coreldraw, AutoCAD, etc.
Cutting thickness	20mm
Color separation	200
Sloping engraving	90°--180°
Cuts off the water supply the protection	yes
Machine dimention	194014401380mm
Red point as standard	not
Air pump as standard	Yes
Gross weight	480kg
packing	Standard non-woody
Machine colour	Can optional
Certificate	CE
