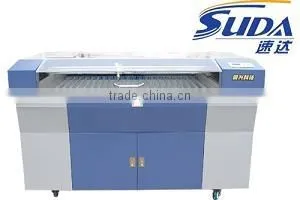

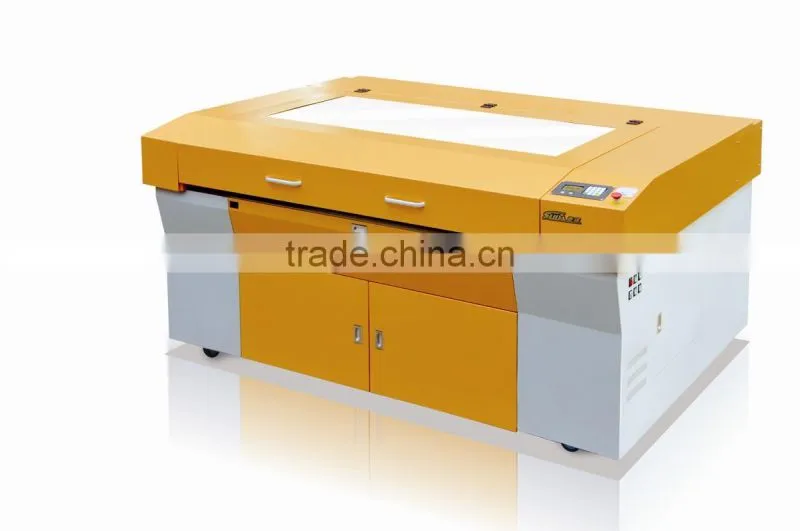

Help CenterSUDA Laser Wood Cutting Machine --SL1290( Sample )
Related Products
-
SUDA Acrylic Laser Engraving Machine3d Laser ---SL1290 SAMPLEUS$ 6,200 - 8,000MOQ: 1 Piece -
SUDA Laser Acrylic Engraving Machine Laser Equipment ---SL4030US$ 1,800 - 3,000MOQ: 1 Piece
-
SUDA Laser Cutting Machine for Acrylic ---SL1290US$ 6,200 - 8,000MOQ: 1 Piece
-
SUDA CO2 Laser Rubber Cutting Machine --SL9060 SampleUS$ 3,500 - 5,000MOQ: 1 Set
-
SUDA CO2 Laser Rubber Engraving Machine --SL9060 SampleUS$ 3,500 - 5,000MOQ: 1 Set
Specifications
American lensimportedTHK linear rail .
co2 laser tube
CE
large power for laser tube
First,distinguished features
Optimization of mechanical and electrical design, processing speed can be up to 2000mm/s
Configured high power laser tube,can cut acrylic of 20mm thickness in one step
With multi-function,FPGA controlling system can effectively engrave on plane,gradient engraving by 360,cutting and drilling holes,etc.Support to output of USB flash disk and work 0ff-line of the computer
Restoring from power-off,continuation on break point
Transmit files directly ftom coreldraw,AutoCAD etc.
Configured laser lens from America,can ensure the cutting effect perfect
Second, application
Applicable to material:Acrylic, PVC board,Woody products,Bamboo ware,Crystal,Rubber,Plastic products,Double plate,PCB board,Paper&Leather,Tiles,etc.
Applied to industries
Applied to Advertising,Decoration&Furnishings,Costume,Fur&Leather Industry,Footwear& Headwear Industry,Model Industry (construction model,aeromodels/navigation models),Artcraft and Electronic&electrical Apparatus industries etc.
Typical Application
Signs plates,Acrylic products,Stamps,Costume design draft,Printing,Artcraft,Construction models making etc.
Thrid, technical data
Optional, equipped with Panasonic AC servo motor
Model |
SL-6040 |
SL-9060 |
SL1290 |
SL-1216 |
||
Engraving Size |
600mm*400mm |
900mm*600mm |
1200mm*900mm |
1200mm*1600mm |
||
Power |
40W-50W |
60W-70W |
80W-100W |
≥100W |
||
Resolution |
0.025mm |
|||||
Setting Accuracy |
0.1mm |
|||||
Repetition Accuracy |
0.1mm |
|||||
max.cutting speed |
200mm/sec |
|||||
max.engraving speed |
2000mm/sec |
|||||
min.size of engraved letters |
Chinese letter engraving 1.5mm,cutting 3mm;English letters engraving 0.8mm,cutting 2mm |
|||||
max.cutting thickness |
≥Acrylic 10mm |
≥Acrylic 15mm |
≥Acrylic 15mm |
|||
Dictate Format |
HPGL(transmit files directly from Coreldraw,AutoCAD etc.) |
|||||
|
|
|
|
|
|
|
