Help Center64 Inch Industrial Multi Needle Quilting Machine
Related Products

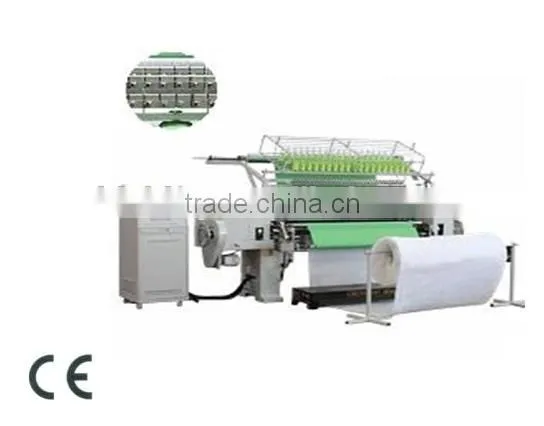

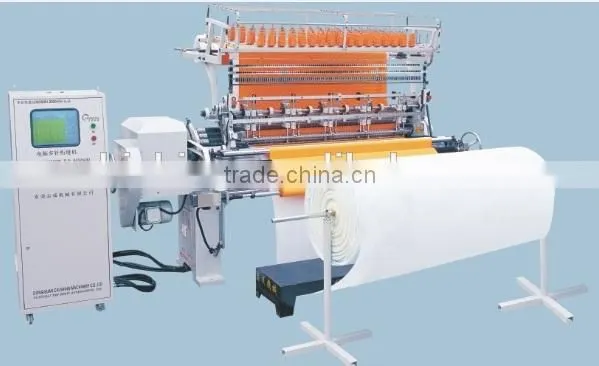

CSDB64"-3 Quilting Machine
1. D: Digital control model; B: Big shuttle (HQ10)
2.64": 64inch width (1626mm)
3.3: Three needle row
4. Overall Dimensions: 3800*1200*1650mm
5: Weight: 2600kg
6: Running speed: 200-500r/m
7: Needle distance: 25.4mm
8. Rating power: 3.5kw
9. Thickness: ≤30mm (foam) 400g/m2 polyester fiber
10. Max pattern size is 12inch by 12inch

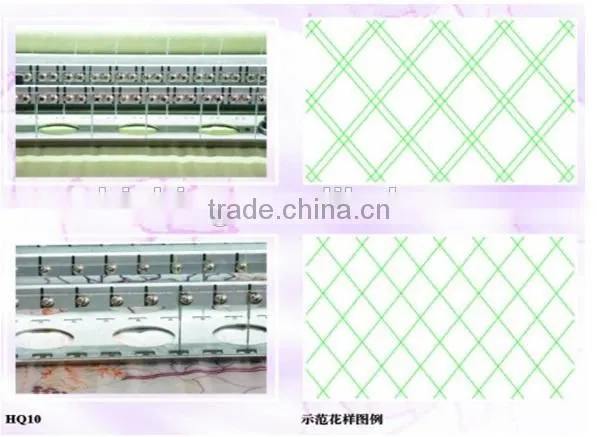

11. The shuttle size is HQ10 (Japanese) .
Applications:
This kind of quilting machinery adopt digital control program. It is widely used for quilting high-quality bedding covers ,quilt covers, garments, handbags, sofa and mattress protectors, seat-covers, kitchen sets(aprons, oven glovers, potholders) and household ornaments. Different patterns are available.
Technical data:
|
Computerized quilt making machine (CS64)
| ||
|
Function and Spec
|

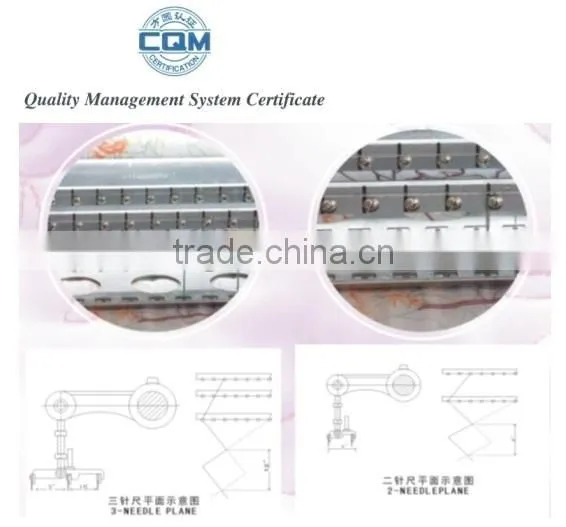

2 Needle row (64 Inch) | 3 Needle row (64 Inch) |
| Size | 3600 * 1100 * 1600cm |
3800 * 1200 * 1650cm |
|
Weight
|
2300KG | 2600KG |
|
MAX.Needles Quantity
|
128 pcs | 192pcs |
|
Stroke
|
203.2mm(8") | 304.8mm(12") |
|
Quilting Width
|
1626mm | 1626mm |
|
Running Rate
|
200-500r/m | 200-500r/m |
|
Rating Power
|
3.5kw | 3.5kw |
|
Voltage
|
380v | 380v |
|
Needle Model
|
16/19 | 16/19 |
|
Quilting Thickness
|
≤30mm ≤400g/m2 | ≤30mm ≤400g/m2 |

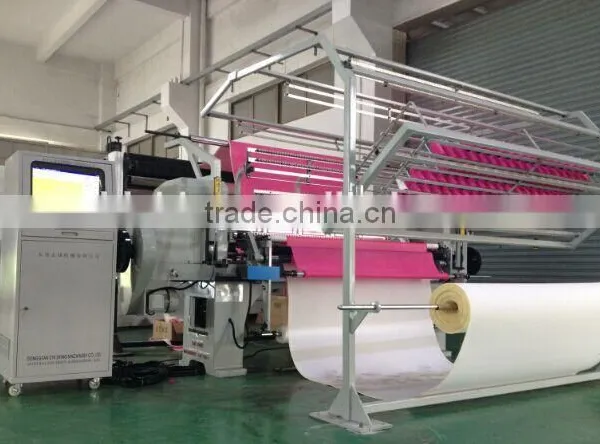

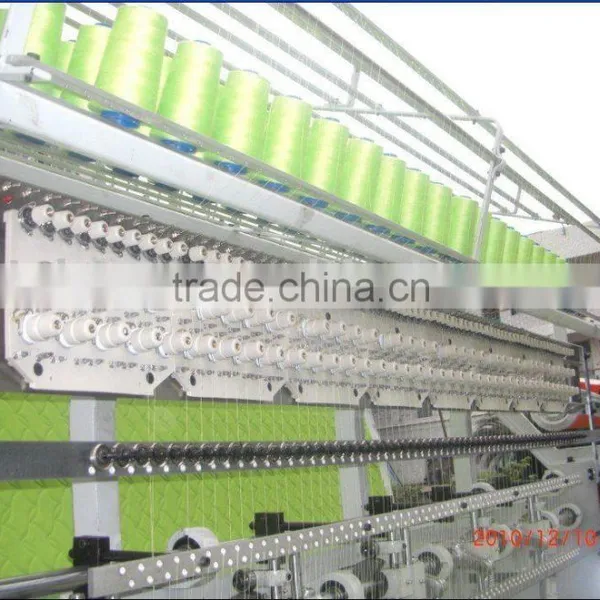

Detailed pictures:
Main Feature and Function:
*this quilting machine Adopting digital control program.
*Saddles and rollers driven by Panasonic servo devices.
*The revolution of the spindle controlled by Panasonic frequency conversion control devices.
*Large number of built-in quilting patterns for your choice.
*Easy and quick make new designs.
*360 degrees quilting .
*Tack and jump function included
*stitches between 2mm-6mm adjustable.
*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.
*Simulation display of quilting.
*Automatic needle raising and location brake system.
*Function of automatic stop on breaking of thread (optional)
*Infrared sensors to guarantee the safety of the operator.
HS Code: |
8452 |
Trademark: |
ChiShing |
Model: |
CSDB64"-3 |
Standard: |
ISO9000-2000 ;CE |
Productivity: |
30-60sets per month |
Origin: |
China |
Packing: |
Export Packing |
Min. Order: |
1 |
Transportation: |
By Sea. |
|
|
