TGS3870-B00 Methane and Carbon Monoxide Gas Sensor Features:
* Miniature size and low power consumption
* High sensitivity and selectivity to both methane and carbon monoxide (CO)
* Low sensitivity to alcohol vapor
* Long life and low cost
TGS3870-B00 Methane and Carbon Monoxide Gas Sensor Applications:
* Combination methane and carbon monoxide detectors

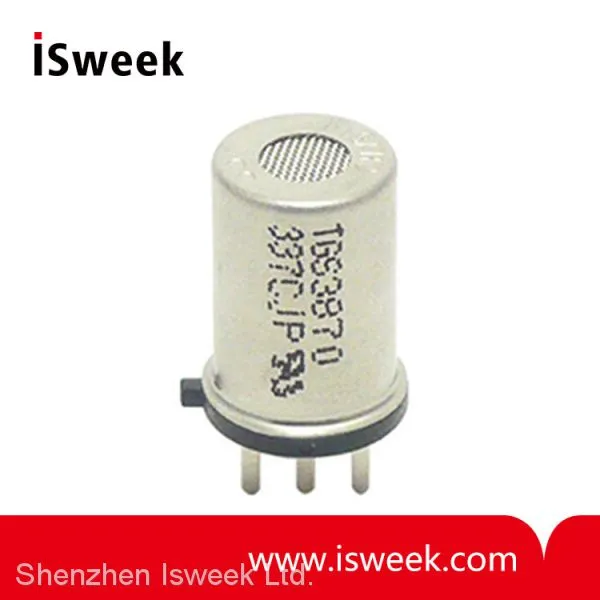

TGS3870-B00 is a micro-bead type semiconductor gas sensor for the detection of both methane and carbon monoxide. Using a micro-bead gas sensing structure, both methane and carbon monoxide can be detected with a single sensor element by periodic application of two different heater voltages (high and low). Miniaturization of the gas sensing bead results in a heater power consumption of only 38mW (average).
TGS3870-B00 has low sensitivity to alcohol vapors (a typical interference gas in the residential environment) and has high durability, making the sensor ideal for consumer market gas alarms.
TGS3870-B00 Methane and Carbon Monoxide Gas Sensor Specifications:
|
Model number |
TGS3870-B00 |
|||
|
Sensing principle |
MOS type |
|||
|
Standard package |
Plastic base and metal can |
|||
|
Target gases |
Methane and Carbon Monoxide |
|||
|
Typical detection range |
Methane 500 ~ 12,500ppm
Carbon monoxide 50~1,000ppm
|
|||
|
Standard circuit conditions |
Heater Voltage |
VH |
VHH = 0.9V±3% for 5 sec.
VHL = 0.2V±3% for 15sec.
|
|
|
Circuit voltage |
VC |
5.0±0.2V DC pulse
(refer to Technical Information for TGS3870-B00)
|
||
|
Load resistance |
RL |
variable (>0.75kΩ) |
||
|
Heater resistance |
RH |
3Ω±0.3Ω at room temp. |
||
|
Heater power
consumption
|
PH |
120mW |
VHH = 0.9V DC |
|
|
11mW |
VHL = 0.2V DC |
|||
|
38mW |
average |
|||
|
Sensor resistance |
Rs |
0.35kΩ~3.5kΩ in 3000ppm methane
|
||
|
1.8kΩ~24kΩ in 150ppm CO | ||||
|
Sensitivity
(change ratio of Rs)
|
β |
0.50~0.65 |
Rs (3000ppm CH4 )
Rs (1000ppm CH4)
|
|
|
0.1~0.6 |
Rs (300ppm CO)
Rs (150ppm CO)
|
|||
|
Standard test
conditions
|
Test gas conditions |
Target gas in air
at 20±2˚C, 65±5%R
|
||
|
Circuit conditions |
VHH = 0.9V±2% for 5 sec.
VHL = 0.2V±2% for 15 sec. Vc = 5.0±0.02V DC pulse (refer to Technical Information for TGS3870-B00)
|
|||
|
Conditioning period
before test
|
≥5 days | |||
