Automatic Toilet Paper Roll Production Line (DC-TP-PL1092-2800)

Automatic Toilet Paper Roll Production Line (DC-TP-PL1092-2800) thumbnail-1
Automatic Toilet Paper Roll Production Line (DC-TP-PL1092-2800) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DC
Place of Origin:
China
Model Number:
DC-TP-PL1092-2800
Contact Supplier Request Quote Chat Now
DC Internation Group Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen port
Delivery Detail:
60 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DC
Place of Origin China
Model Number DC-TP-PL1092-2800
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty one year
Weight 20T
Dimension(L*W*H)
Voltage 380V
Product Type Toilet Tissue
Condition New
Power(W) 30Kw~50Kw
Processing Type Paper Slitting and Rewinding Machine
I. Introduction
Automatic Toilet Paper Production Line,Toilet roll Machine,toilet paper machine,toilet roll making machines,toilet paper manufacturing machine,toilet roll production plant,toilet roll production line,kitchen towel roll production line,kitchen towel production plant
Model name: DC-TP-PL1092-2800

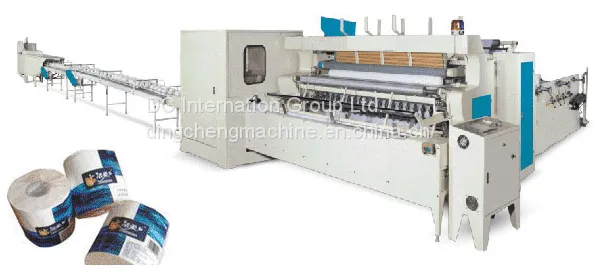

This machine is used to produce the toilet paper rolls and kitchen towel rolls as the picture shown above.
II. Function and Features

1.This DC-TP-PL1092-2800 Economical line will automatically change core and unload the finished products, and automatically trim and seal the tails of the logs, leaving a lip about 20mm to make it easy for consumers to start using the rolls without tearing the paper at the seal.
2. All the driven system to be by means of synchronous belts, nylon belts and gears, for years of free maintenance. Electrical eyes will be mounted on the different parts of the line to monitor the machine and stop it in case it runs out of paper, cores or any other unforeseen problems. The lubrication systems will be provided on the major parts of the line.
3.The motor power is 30kW. Variable frequency control depending on the final specifications and requirements.
III. Technical Parameter
1. Jumbo roll width: 1700mm--2800mm
2. Dia. of raw material(mm): Up to Φ1500mm
3. Inner diameter of core: 76.2mm(other size, please point out)
4. Speed: 0-325m/min depending on model
5. Operating speed: 0-300m/min, 6 cycles(logs)/min
6. Finished roll outside diameter: toilet paper:Φ80-150mm
7. Finished roll outside diameter: Kitchen towel:Φ80-150mm
8. Perforation distance: Variable
9. Sheet count: Increments of one sheet
10. Inner diameter of core of finished product: Φ25-80mm
11. Raw material: 1 or 2 plies ，15-30g
12. Power: 30Kw~50Kw

IV. Export Details
1. Delivery time :80 days（Need time to promise the processing precision ,assembling precision ,of course if there is any special situation which needs shorter time ,it can be discussed）
2. Load port: Xiamen port in Fujian Province
3. Packing: In standard export wooden cases
4. Contained in a 40,20 feet container (It depends on the quantity of the machines)
5. Machine installation and operation training: Seller will assign professional technicians and engineers to buyer’s plant to install the machine and train the workers .The round air ticket, lodge and board fee, and salary will be on buyer’s side.
6. Warranty: One year(Except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to solve any problem may occur.
7. Our company also provides the raw material to match with the machine.
