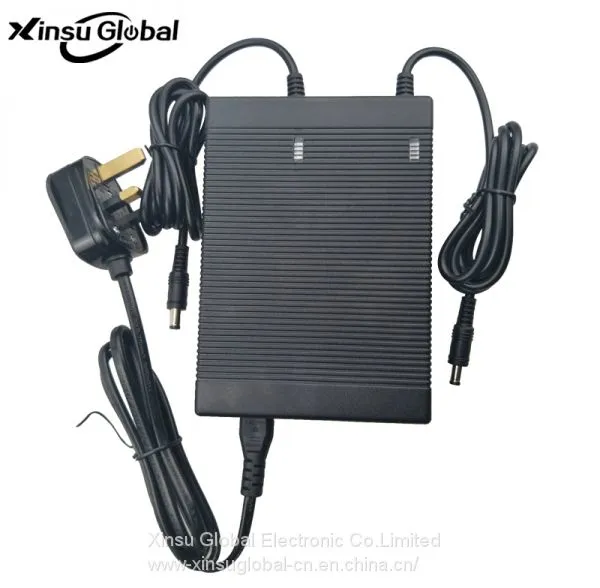

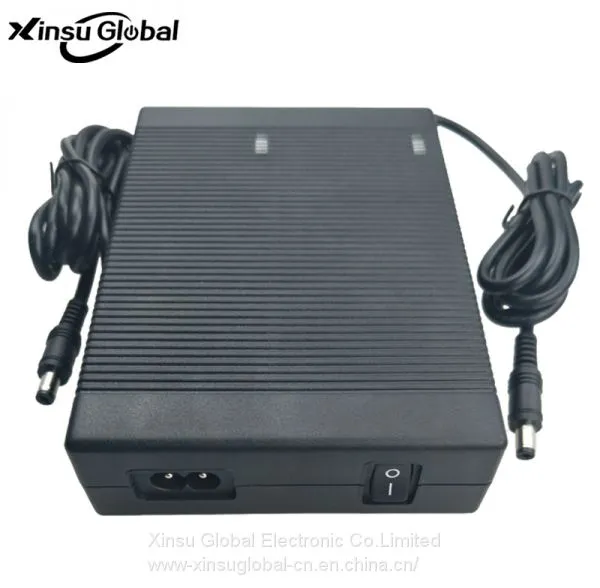

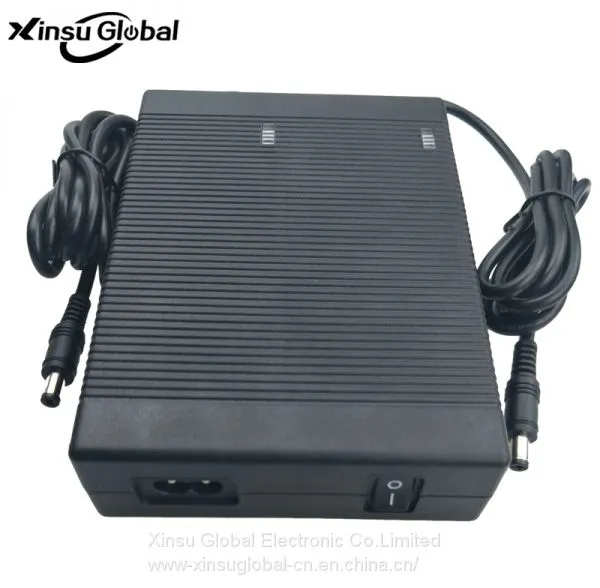

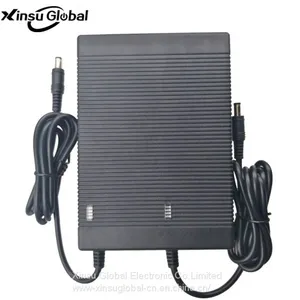

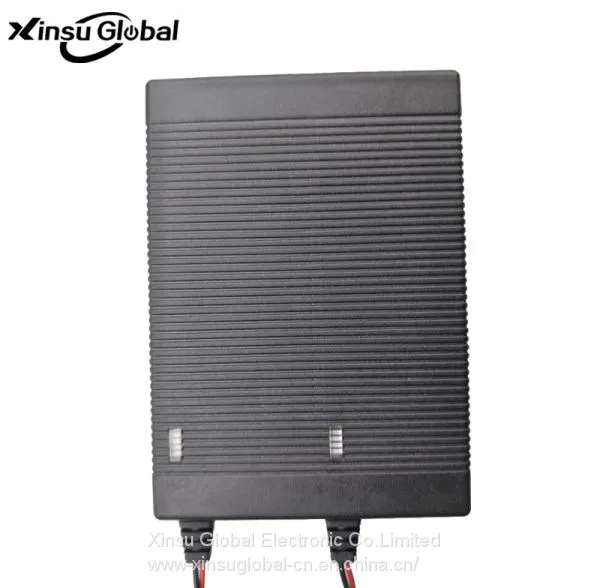

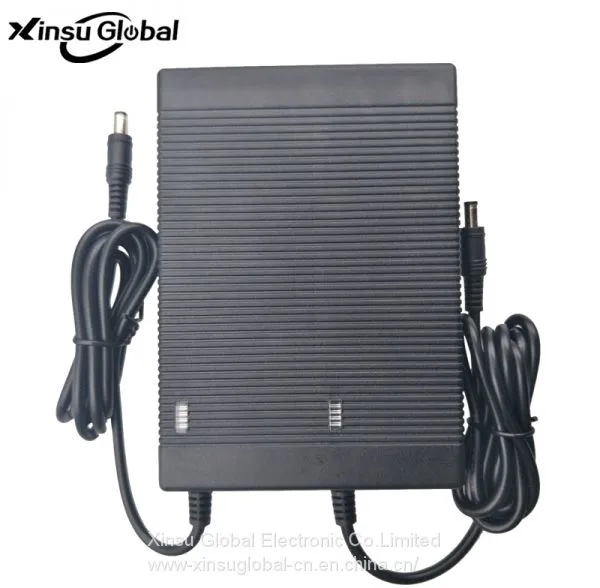

Help CenterDouble Output Battery Charger 16.8V 3A With Switch on off and GS UL Certificates
Related Products
-
Two-path Output Battery Charger 12.6V 4A 5A With Good EMIUS$ 19 - 20MOQ: 200 Pieces -
37.8V 3A 4A Li-ion Battery Charger for Clean Air Machine Lithium Battery ChargerUS$ 16 - 17MOQ: 200 Pieces
-
29.4V 7A 8A Intelligent Lithium Li-ion Battery Charger for Ice Cream Machine and RobotUS$ 32.2 - 33.1MOQ: 100 Pieces
-
Battery Chareger 42v 0.8A 1A 1.5A 2A Lithium li Ion for Slender/folding Skateboard/one DriveUS$ 7.6 - 8.4MOQ: 300 Pieces
-
Electric Type AC 100-240v Lithium Ion Battery Charger 54.6v 2a 3a for Auto Rickshaw UseUS$ 23 - 24MOQ: 100 Pieces
product description
Product Electronics Parameter | ||
Product name |
double output battery charger 16.8V 3A with switch on off and GS UL certificates |
|
Model number |
XSG1683000 |
|
AC input |
Input Voltage range: |
90~264Vac |
Reted input voltage: |
100~240Vac |
|
InputFrequency Range: |
47~62hz |
|
Input current max: |
2.5A |
|
Inrush current: |
35A Max/240V |
|
Efficiency: |
||
No load Input power |
||
Leakage current: |
||
Switch |
On/Off |
|
DC output 1 oulet |
Max charging voltage: |
16.8V |
Output voltage tolerance: |
5% |
|
Max charging current: |
3A |
|
Ripple and noise: |
||
Charging mode: |
3- stage, CC,CV,trickle charging |
|
Cut off current when charged full |
Optional |
|
LED indicator 1 |
Charging: Red, Charged full: Green |
|
Charging current when charged full |
||
DC output 2 oulet |
Max charging voltage: |
16.8V |
Output voltage tolerance: |
5% |
|
Max charging current: |
3A |
|
Ripple and noise: |
||
Charging mode: |
3- stage, CC,CV,trickle charging |
|
Cut off current when charged full |
Optional |
|
LED indicator 2 |
Charging: Red, Charged full: Green |
|
Charging current when charged full |
||
Protection |
Over current protection |
PASS |
Over voltage protection | ||
Short circuit protection | ||
Over Temp protection | ||
Anti-flow protection | ||
Environment |
Operating Temp: |
0℃~+45℃ |
Storage Temp: |
-30℃~+70℃ |
|
Relative Humidity: |
10%~90% |
|
Vibration and shock |
Meet MIL-STD-810D |
|
Safety |
Safety standard |
EN60950,EN61558,EN60335 |
EMC/EMI |
Meet FCC CLASS B,EN55022 CLASS B. |
|
EMS |
EN61000-4-2 |
|
EN61000-4-3 | ||
EN61000-4-4 | ||
EN61000-4-5 | ||
A Harmonic source |
Pass |
|
HI-pot: Primary to Secondary |
3KVAC,5mA,60s |
|
Drop Test |
As per UL regulation |
|
Burning test |
100%,4-5 hours |
|
Life |
MTBF |
50000 hours |
Warranty |
3 years |
|
DC connecter
Certificates
