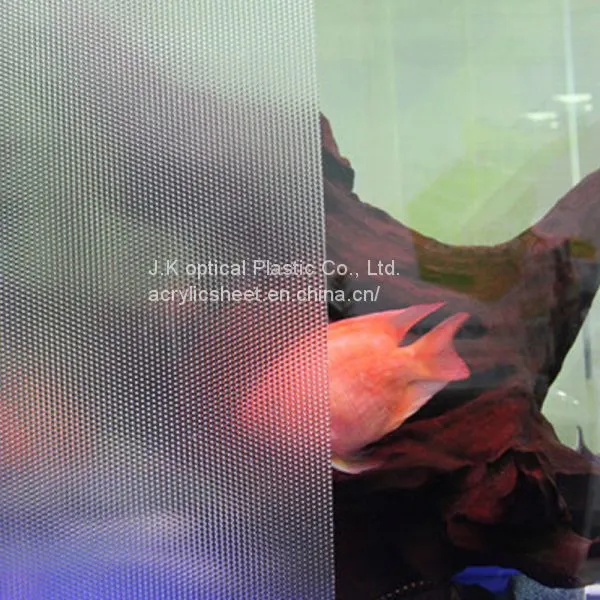

Pearl Shaped Patterned Acrylic Sheet
Textured Acrylic Plate
Acrylic Pearl Shaped Prismatic sheet, or Acrylic Pearl Shaped patterned sheet, This kind of textured acrylic sheet, has a raised prismatic pattern of male cones running parallel and perpendicular to the lens and width of sheet, the overall pattern provides good lamp cut-off minimize lamp images and provide very low brightness at angels close to the horizontal.
Product Details
Specification
Dimension(L*W*T) | ||
Length(L) |
Width(W) |
Thickness(T) |
2500mm |
1250mm |
2-6mm |
Pearl diameter(mm) |
0.4mm(T=2mm) |
|
The other size and thickness can be made to order. | ||
Character
Item |
Test Method |
Unit |
Value |
Light Transmission |
ASTM D1003 |
- |
90% |
Water Absorption |
ASTM D570-98 |
% |
0.01 |
Vicat Softening Temp |
ASTM D1525-09 |
℃ |
104.0 |
Heat Distortion Temp |
ASTM D648-07 |
℃ |
88.4 |
Coefficient of Thermal Expansion |
ASTMD696 |
In/IN-F |
0.000033 |
Rockwell hardness |
ASTM D785-08 |
- |
M-95 |
Flammability |
UL 94-1996 |
- |
HB |
