Diamond Diffuser Plate(K12 Pattern)
Textured Acrylic Plate

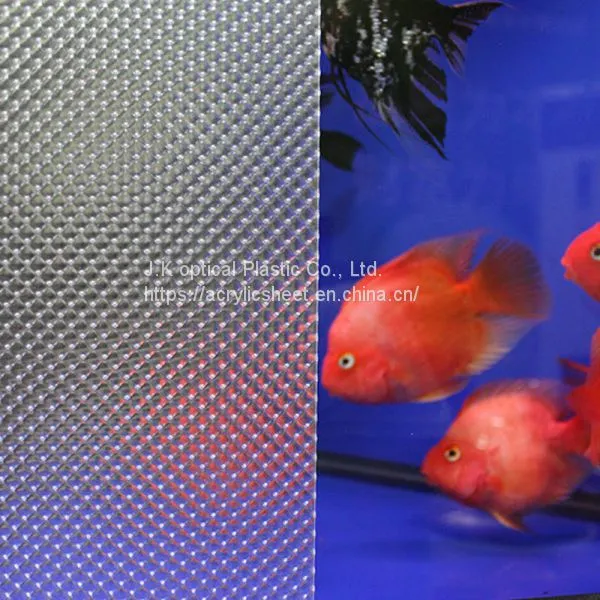

Diamond Diffuser Plate, also named Acrylic prismatic sheet, or called Acrylic prismatic panel is of kind of textured acrylic, looked like diamond shape, is a quality extruded lens that provides very good low brightness control with excellent light output. It utilizes a diagonally oriented prism pattern, features a 5*5mm square base female conical prism placed on a 45째 axis, that are optically designed to provide excellent light control, meanwhile resulting in a high level of visual comfort.
Product Details
Specification
Dimension(L×W×T) | ||
Length(L) |
Width(W) |
Thickness(T) |
2500mm |
1250mm |
2~6mm |
Prism pattern(mm) |
5*5mm |
|
Prism height(mm) |
1.9mm(T=2.5mm) |
|
Remark: The diamond shaped patterned sheet is a brand new design, more brightness, more precious, can reduce the glare effectively
Character
Item |
Test Method |
Unit |
Value |
Light Transmission |
ASTM D1003 |
- |
90% |
Water Absorption |
ASTM D570-98 |
% |
0.01 |
Vicat Softening Temp |
ASTM D1525-09 |
℃ |
104.0 |
Heat Distortion Temp |
ASTM D648-07 |
℃ |
88.4 |
Coefficient of Thermal Expansion |
ASTMD696 |
In/IN-F |
0.000033 |
Rockwell hardness |
ASTM D785-08 |
- |
M-95 |
Flammability |
UL 94-1996 |
- |
HB |
