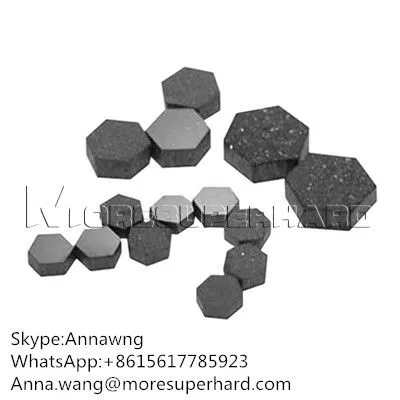

Help CenterCVD Diamond Die Blanks
US$ 1 - 2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MORE
Place of Origin:
China
Model Number:
PCD Die Blanks
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
Solid CBN Inserts RNMN,SNMN,TNGN,CNMN,RCMN,RCMXUS$ 1 - 2MOQ: 1 Piece -
PDC CutterUS$ 1 - 2MOQ: 1 Piece
-
Manufacturer 1304 1308 PDC Inserts 1913 1613 1308 PDC Cutters for PDC Cutter BitUS$ 1 - 2MOQ: 1 Piece
-
1308 PDC Cutter Used for Coal Mine Drill BitUS$ 1 - 2MOQ: 1 Piece
-
1308,1304,1313,1613,1619 Oil/gas Drilling Pdc Cutter,PDC Cutter for Coal MiningUS$ 1 - 2MOQ: 1 Piece
Brand Name
MORE
Place of Origin
China
Model Number
PCD Die Blanks
Size
all
Type
Other, PCD Die Blanks
Applications Of CVD Diamond Die Blanks:
CVD Diamond Die Blanks Can Be Used In Cold And Hot Wire Drawing Of Various Kinds Of Metal, Especially Tungsten, Forceps, High Hardness Steel, Aluminum And Copper Wires.
Features Of CVD Diamond Die Blanks:
High Wear Resistance And Temperature Resistance
No Directional Wear In The Process Of Processing And Using, For Its Isotropic
Excellent Surface Finish And Long Service Life

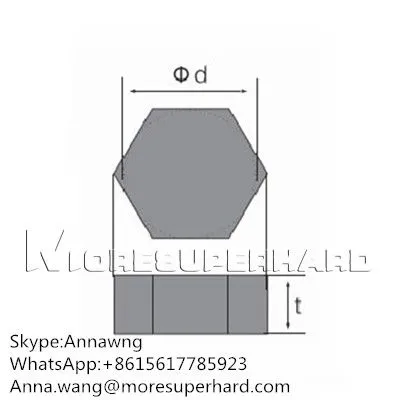

Specifications Of CVD Diamond Die Blanks(R/H)(Mm):
Product Code |
Diamond Diameter (Mm) | Diamond Thickness (Mm) | Grain Sizes Available (Um) |
| 1208 | 1.2 | 0.8 | 5,10,15 |
| 1210 | 1.2 | 1.0 | 5,10,15 |
| 1508 | 1.5 | 0.8 |
5,10,15 |
| 1510 | 1.5 | 1.0 | 5,10,15 |
| 1515 | 1.5 | 1.0 | 5,10,15 |
| 1808 |
1.8 | 0.8 |
5,10,15 |
| 2008 | 2.0 | 0.8 | 5,10,15 |
| 2015 | 2.0 |
1.5 | 5,10,15 |
| 2508 |
2.5 | 0.8 | 5,10,15 |
| 2510 |
2.5 |
1.0 |
5,10,15 |
| 2515 |
2.5 | 1.5 | 5,10,15 |
| 3010 |
3.0 | 1.0 |
5,10,15 |
| 3015 |
3.0 | 1.5 | 5,10,15 |
| 3215 | 3.2 | 1.5 | 5,10,15 |
| 3820 |
3.8 | 2.0 | 5,10,15 |
| 4020 |
4.0 | 2.0 | 5,10,15 |
| 5225 |
5.2 |
2.5 | 5,10,15 |
