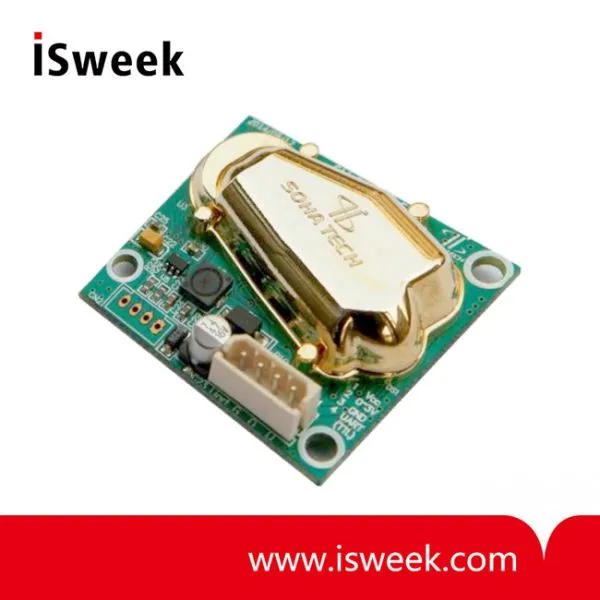

SH-300-DS Dual Light Wavelength NDIR Carbon Dioxide (CO2) Sensor Module
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SOHA
Place of Origin:
South Korea
Model Number:
SH-300-DS
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
LOX-02-S LuminOx Sealed Optical Oxygen Sensor (O2 Sensor)US$ 65 - 100MOQ: 1 Piece -
SH-300-NDC NDIR Carbon Dioxide (CO2) Sensor Module (Dual Wavelength)NegotiableMOQ: 1 Piece
-
SH-300-NDTH NDIR Carbon Dioxide (CO2) Sensor ModuleNegotiableMOQ: 1 Piece
-
SenseH2-R Hydrogen Sensor Refrigerant Gas Tolerant SensorNegotiableMOQ: 1 Piece
-
IRM-AT Infrared Methane (CH4) Sensor Thermopile DetectorNegotiableMOQ: 1 Piece
Brand Name
SOHA
Place of Origin
South Korea
Model Number
SH-300-DS
Usage
Gas Sensor
Theory
Other, NDIR Gas Sensor
SH-300-DS NDIR Carbon Dioxide Sensor Module Features
• Best Extremely Precise Sensor
• Quick Response Time
• Long Time Use, Stable performance at High & Low Temperature
• Waterproof Filter for anti static filters fine dust and humidity in the air
• One-way air indraft for represent average value when momentary CO2 Value change in the air
• Low Current consumption
• Output support: UART, 0~3V Analog
SH-300-DS NDIR Carbon Dioxide Sensor Module Application
• CO2 Control for Indoor Air Quality
• CO2 Measuring for Ventilation Control
• CO2 Control for Building, Hospital, School
• CO2 Control for Air cleaner, Air conditioner.
• Mushroom Control, Boiler Control
SH-300-DS NDIR Carbon Dioxide Sensor ModuleTechnical Specification
| Measuring Type | Dual Light Wavelength Non-Dispersive Infrared (NDIR) |
| Measuring Range | 0 ~ 3,000 / 5,000 / 50,000 / 100,000 ppm |
| Accuracy | ±2% FS, ±3% measured value @ 0 ~ 50°C |
| Response Time | Every 2.0 Seconds |
| Warm-Up Time @25°C | |
| Operating Condition | -10 ~ 50°C, 0 ~ 99.5% RH (Non Condensing) |
| Output | Analog : 0~3VDC (0~3000, 5000, 10,000 ppm) |
| UART: 9600bps [CN1] / TTL Level 3.3V | |
| Power Input | DC 5V ~ 9V Input (5 ~ 7V recommendation) |
| Consumption Current | Normal 35mA, Peak 80mA |
| Interface | 4PIN Header[CN1] |
| Molex 5267 With 2.54mm spacing. | |
| Size | (W)40mm x (H)36mm x (D)11.9 mm |
| Weight |
12g |
