Home > Industrial Equipment & Components > Bearing > Spherical Roller Bearing > CSF20-XRB Crossed Roller Bearings for Harmonic Drive Unit
CSF20-XRB Crossed Roller Bearings for Harmonic Drive Unit
US$ 10 - 500
MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
BRSZC
Place of Origin:
China
Model Number:
CSF20-XRB
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
60 days
Related Products
-
SHF-17 Harmonic Reducer Output BearingUS$ 10 - 500MOQ: 10 Sets -
CSF-14 Harmonic Drive Gear Units BearingUS$ 10 - 500MOQ: 10 Sets
-
CSF-17 Crossed Roller Bearing for CSF CSG Harmonic Drive Gear UnitsUS$ 10 - 500MOQ: 10 Sets
-
CSF-25 Crossed Roller Bearings for CSF CSG Strain Wave DriveUS$ 10 - 500MOQ: 10 Sets
-
CSF-40 Harmonic Drive Units Bearing CSG-40 Harmonic Reducer BearingUS$ 10 - 500MOQ: 10 Sets
Brand Name
BRSZC
Place of Origin
China
Model Number
CSF20-XRB
Number of Row
Single Row
Seals Type
NBR
Precision Rating
P5
Outside Diameter
70,
Bore Size
14,

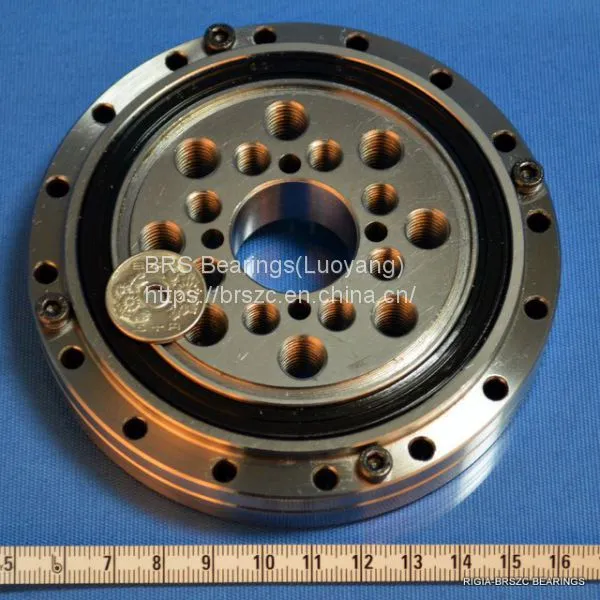

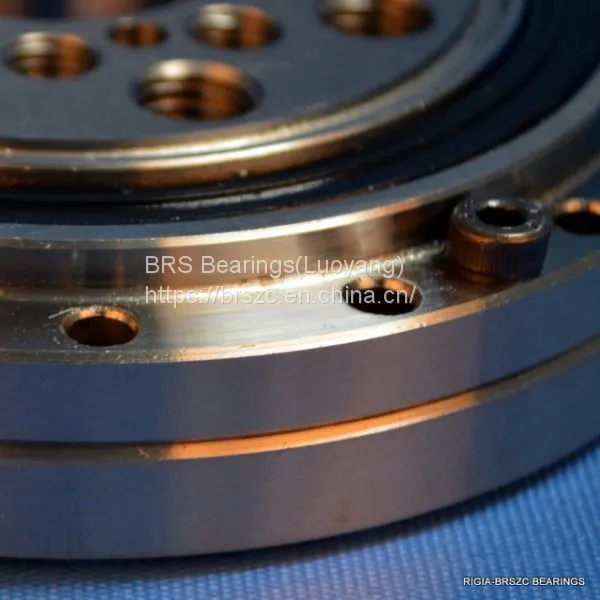

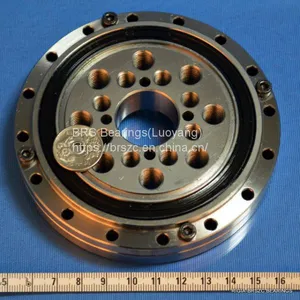

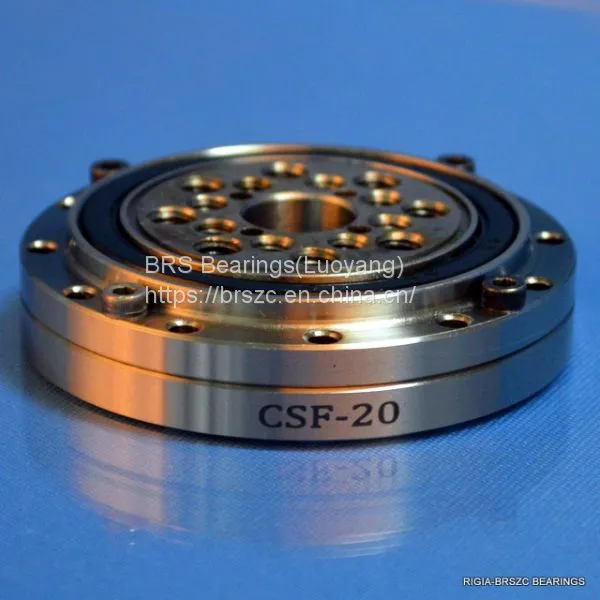

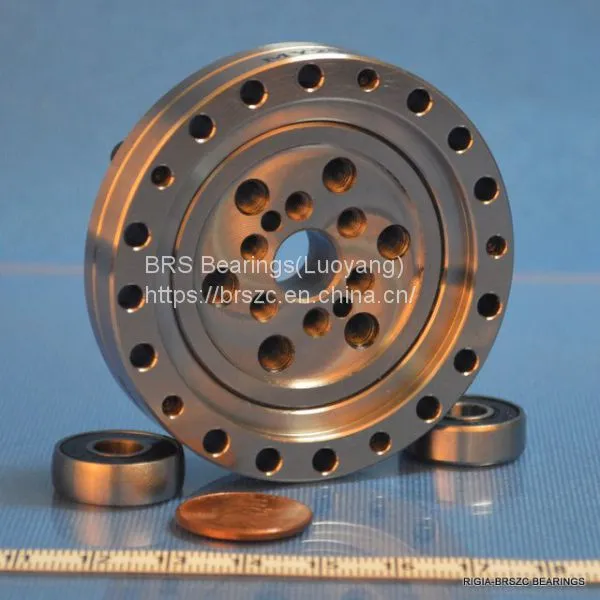

CSF20-XRB crossed roller bearings for harmonic drive unit
model: CSF20-XRB
structure: crossed roller bearings, separable outer ring
size: 14*70*16.5mm
mass:0.36kg
BRS Harmonic Reducer Bearing CSF-XRB Series is characterized by high precision, compact structure, good sealing effect, high loading capacity and high rigidity, it is specially designed for CSF/CSG harmonic reducer. Both inner ring and outer ring contain multilayers of precision holes for connecting with working parts.
More CSF crossed roller bearing models:
| Models | Boundary Dimension (mm) | Mass | ||
| D | d | H | kg | |
| CSF14-XRB | 55 | 9 | 16.5 | 0.25 |
| CSF17-XRB | 62 | 10 | 16.5 | 0.27 |
| CSF20-XRB | 70 | 14 | 16.5 | 0.36 |
| CSF25-XRB | 85 | 20 | 18.5 | 0.65 |
| CSF32-XRB | 112 | 26 | 22.5 | 1.1 |
| CSF40-XRB | 126 | 24/32 | 24 | 1.6 |
| CSF50-XRB | 157 | 32/40 | 31 | 3.6 |
| CSF65-XRB | 210 | 44/52 | 39 | 7.8 |
Related harmonic drive units
CSF-14-2UH
CSF-17-2UH
CSF-20-2UH
CSF-25-2UH
CSF-32-2UH
CSF-40-2UH
CSF-45-2UH
CSF-50-2UH
CSF-58-2UH
CSF-65-2UH
More info. of CSF20-XRB crossed roller bearings are available upon request.
