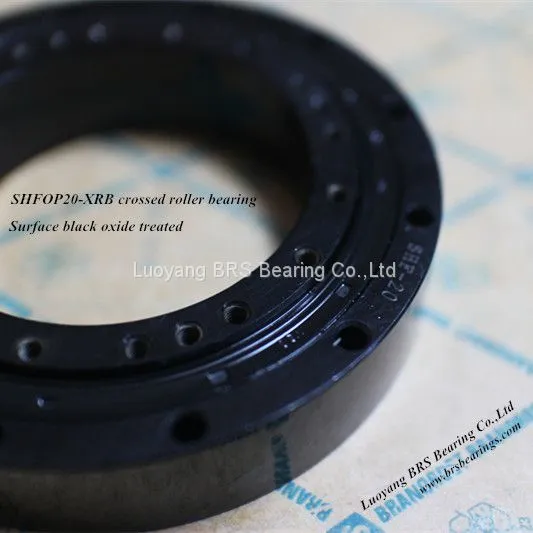

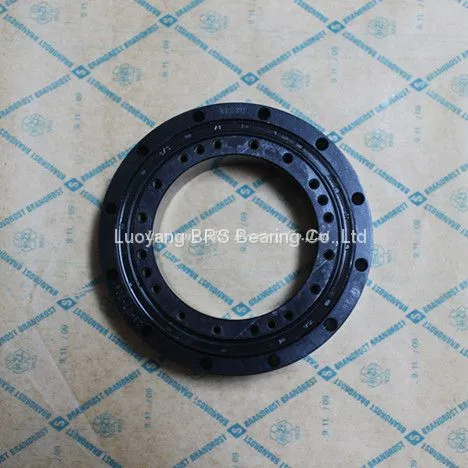

SHF-20|SHG-20 harmonic drive units crossed roller bearing
model: SHF-20/SHFOP20-XRB
structure: crossed roller bearings, integrated inner/outer ring
size: 54*90*18.5mm
mass:0.46kg
SHF series harmonic reducer output bearings are applied on SHF/SHG harmonic reducer drive units. It has the feature of high loading capacity, high rigidity and rotation accuracy. Meanwhile, it's ultra-thin and light weight, specially suited for applications like harmonic reducer output terminal, industiral robots, packaging machines, printing machines, medical equipments, etc.

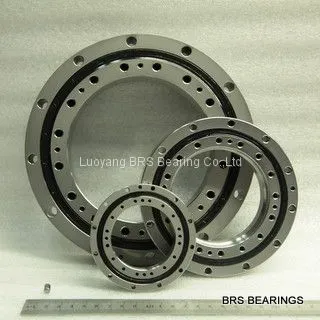

More SHF crossed roller bearing models:
| Part Number | Major Dimensions (mm) | ||
| D | d# | H | |
| SHF14-XRB | 70 | 38*5-35.6*9.6 | 15.1 |
| SHF17-XRB | 80 | 47*6.5-44.1*9.9 | 17 |
| SHF20-XRB | 90 | 54 | 18.5 |
| SHF25-XRB | 110 | 68*7.5-66*12.2 | 20.7 |
| SHF32-XRB | 142 | 88*8-84*14.5 | 24.4 |
| SHFOP40-XRB | 170 | 108*9-106*19 | 30 |
| SHFOP50-XRB | 214 | 135 | 36 |
Related harmonic drive units
SHF/SHG-14-2UH
SHF/SHG-17-2UH
SHF/SHG-20-2UH
SHF/SHG-25-2UH
SHF/SHG-32-2UH
SHF/SHG-40-2UH
SHF/SHG-50-2UH
More info. of SHF-20/SHG-20 harmonic drive units bearings are available upon request.
