GP Relay

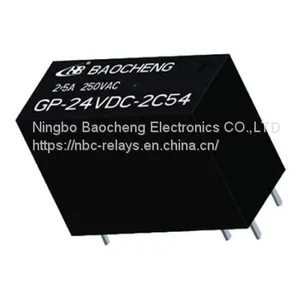

GP Relay thumbnail-1

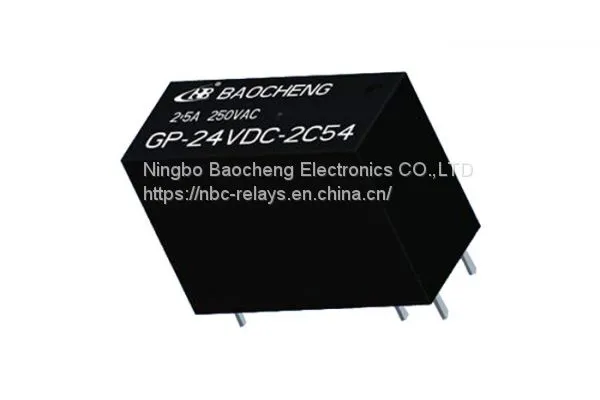

GP Relay photo-1
US$ 1 - 1 MOQ: 600 Pieces
Key Specifications
Get Latest Price
Brand Name:
BAOCHENG,NBC
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Ningbo Baocheng Electronics CO.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO，SHANGHAI，GUANGZHOU
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BAOCHENG,NBC
Place of Origin China

RELAY TYPE: GP Relay

· 16A switching capability

· Standard PCB layout

· Dielectric strength between coil and contact 5KV

· Various of contact forms available

· Option for sealed and flux-tight type

· UL insulation grade：Class F

· Environmental friendly product

Power Relays, High Power Relays, Power Relays Factory, China

Contact Ratings

Contact Form:

1A, 1C; 2A, 2C

Contact Material:

AgCdO, AgSnO2

Contact Load Capacity:

1A,1C:16A/250VAC

2A,2C:5A/250VAC

Max. Switching Current:

16A

Max. Switching Power:

4000VA

Mechanical Endurance:

1*107OPS

Electrical Endurance:

1*105OPS

· Outline dimension: 29 x 12.6 x 20.6mm



Technical Ratings

Insulation Resistance:

1000MΩ

Dielectric Strength(Between coil&contact):

5000VAC

Operate Time (Max.):

15ms

Release Time (Max.):

5ms

Ambient Temperature:

-40℃ ~ 70℃

Terminal Type:

THT





Coil Ratings

Nominal Voltage

(5-48)VDC

Nominal Coil Power

0.54W,0.72W


Product Tags: GP Relay , Relay
