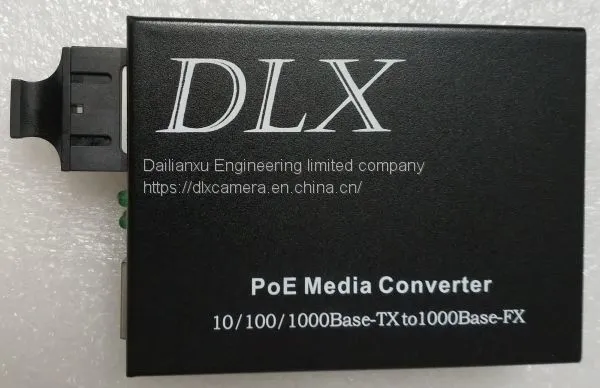

Help CenterPOE IP Camera to Fiber Converter 10/100M/1000M POE IP Fiber Optical Transmitter and Receiver Single Por POE Fiber Conver
Related Products
-
POE IP Camera to Fiber Converter Gigabit POE IP Fiber Optical Transmitter and Receiver Single Por POE Fiber Media ConverUS$ 60 - 70MOQ: 1 Piece -
HD IP Camera to Fiber Converter Gigabit Ethernet Fiber Optic Transmitter and Receiver Single Port Fiber Media ConverterNegotiableMOQ: 1 Piece
-
HD IP Camera to Fiber Converter Gigabit Ethernet Fiber Optic Transmitter and Receiver Single Port Fiber Media ConverterUS$ 60 - 70MOQ: 1 Piece
-
Hotsale Megapixel 720P WIFI Smart Doorbell With Indoor Ring Support 32G SD Remote Watch by APP of Mobile Two Ways VoiceUS$ 39 - 45MOQ: 1 Piece
-
Outdoor Water-proof 2Mp 1920x1080p P2P Wireless IP Camera Built-in Micro and Speaker SD Card Two Way Voice HD WIFI CamerNegotiableMOQ: 1 Piece
BRIEF INTRODUCTION

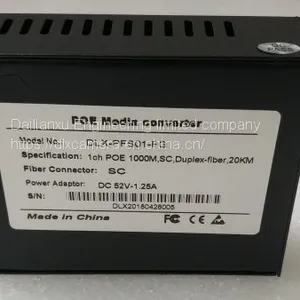

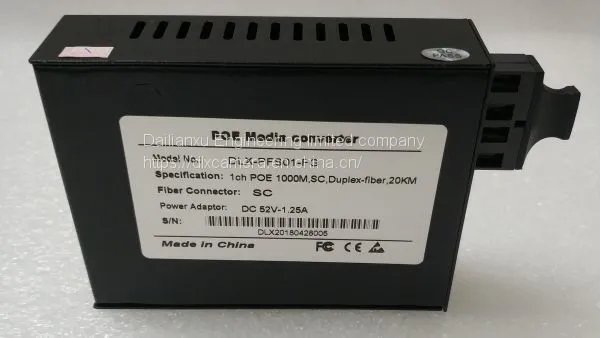

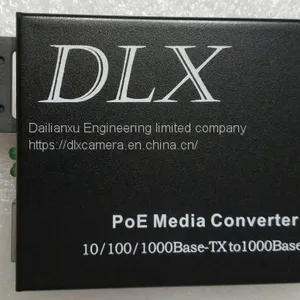

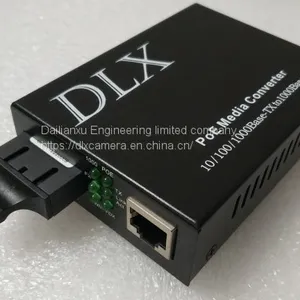

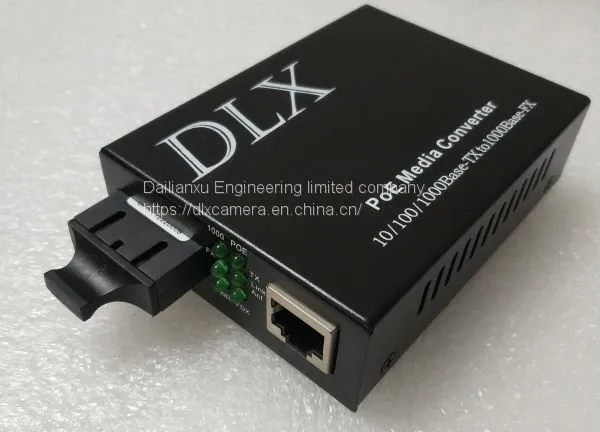

DLX-PFS01-FG series 10/100M/1000M EthernetFiber Switch is included one 1000M fiberoptical port and one POE 10/100M/1000MEthernetports. It has the function of photoelectricity switchover between 1channel 10/100M/1000MEthernet ports and 1000M optical port. Adopts single port full-powertechnology, and single port supports Max.30W and feeds enough power to Array IRCCTV cameras.Auto-detect and recognizeIEEE 802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it.Supports smart power management, if the power of PD over 53W, the system willstop feeds low-priority devices. Has smart POE auto-recognized system toprotect devices from overflow current and over -voltage etc. AdoptsAuto-standby mode and cable distance detection management to ensure the switchhas excellent energy saving capability. Using imported original industrialcomponents and Gold-plated PCB. All RJ45 ports adopt advanced Self-healingmulti-stage lightning protection design, have high-level lightning, surge andESD protection.
APPLICATIONS
●High-definitionIP video surveillance and power supply
●HighWay& Road surveillance system, Capture system
●Video-surveillancesystem of large factories and mines systems
●IPNetwork Multi-function system
●High Way& Toll Station Surveillance
●PublicSecurity Surveillance
●Surveillanceand cable TV system
●Intelligenttraffic monitoring system
●HighQuality Video Conference
●Broadcastand TV program transmission
●Long-distancemultimedia teaching
●IndustrialClosed Circuit Television Surveillance
FEATURES
●Adoptsimport industry PSE chip and Taiwan YDS transformer
●Singleport full-power technology, and single port supports Max.30W
●SupportsIEEE802.3AF and IEEE802.3AT protocol, Auto-detect and recognize IEEE802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it
●Supportssmart power management, if the power of PD over 53W, the system will stop feedslow-priority devices
●SupportsAuto-standby mode and cable distance detection management, if no devices beenconnected, then auto-standby to save energy, if cable distance less than10meters,then will use Lower transmission power
●SmartPOE auto-recognized system to protect devices from overflow current and over-voltage etc.
●2K MACaddress
●1/2/3/6 lines or 4/5/7/8 lines power supply optional, supportsall PD devices
●Anti-lightningand ESD protection for all Ethernetports, power ports.
●Immersiongold PCB board, Industry grade components
●Multi-servicesFlexible Configuration on the Same Platform
●Auto-negotiateto NIC/HUB and MDI/MDI-X
●SupportVLAN Network isolation and BSTM broadcast storm-control setting

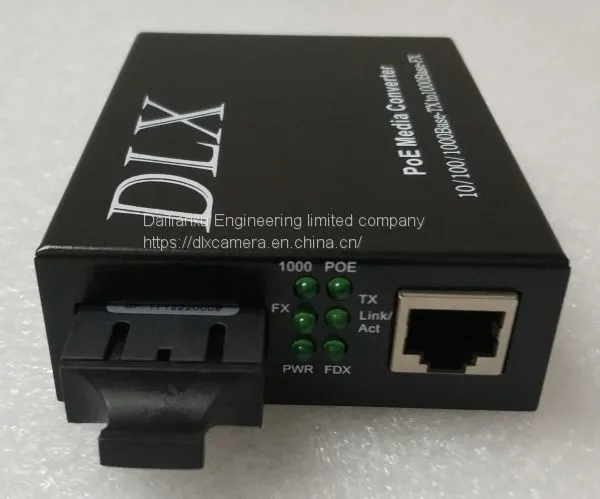

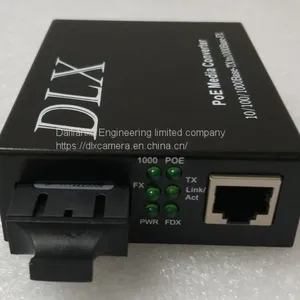

●Indicatorsfor Power Supply, Ethernet etc.
●Supportsline speed switching of all ports and in 64~1536 frame length can reach line speed
●Standard:Full-duplex adopts IEEE 802.3x standard, Half-duplex adopts Back pressurestandard
●Wallmounted installation
●Transmissiondistance: 2km(multi-mode),20km,40km,60km,80KM,100km,120km optional(Single-mode)
