Product Introduction

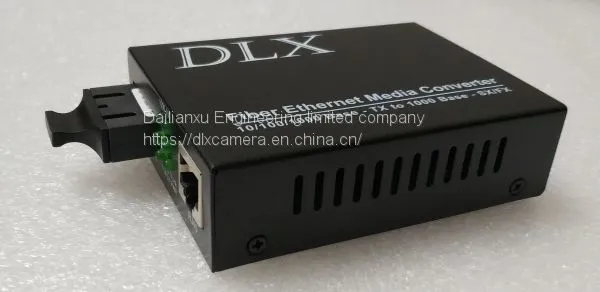

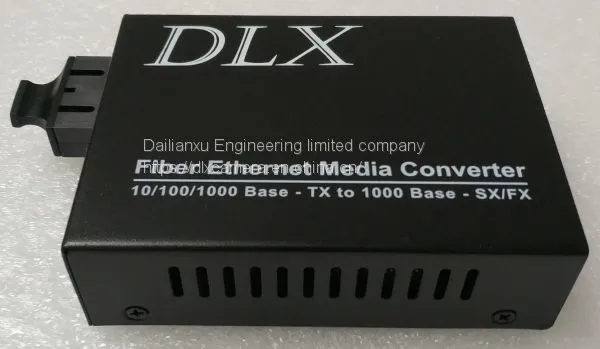

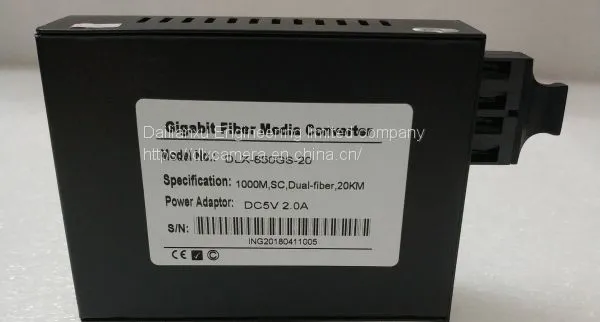

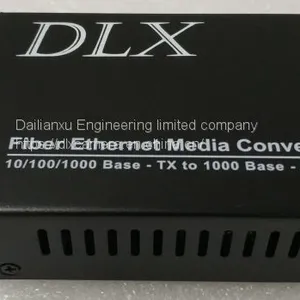

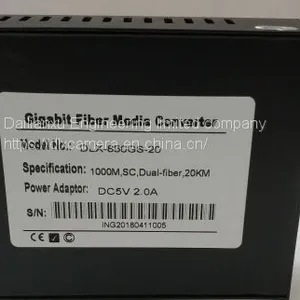

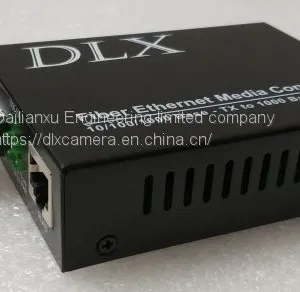

DLXseries 10/100M/Ethernet Fiber Media Converter is a kind of stand-alonetype media converter thatincludes one main board of fiber converter and different kinds shell and can becentralized control by chassis. It is used to translatethe data between 10Base-T twisted-pair and 10Base-FL optical cable or between 100Base-TX twisted-pair and 100Base-FXoptical cable or between 1000Base-T twisted-pair and 1000Base-FX optical cable.And this equipment can extend the transmission distance fromtovia the quick Ethernet Fiber Optical. It adaptsto the connection of optical fiber of backbone and is a kindEthernet Fiber Media Converter of finequality and low price. It is primarily used in broadband WAN established by data network operators as Telecast, Netcom,Unicom, or industrial broadband industrial private network of government, finance,oil, police, force, railway, power, transportation, education, etc
Product Feature
●Comply with IEEE802.3,802.3µ,802.3z ,802.3ab Standard
●Selectable optical link-lossalarm
●Supports 10//,full/halfduplex auto-negotiation

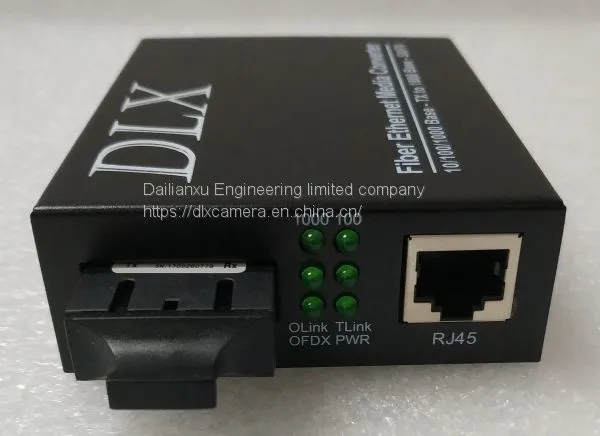

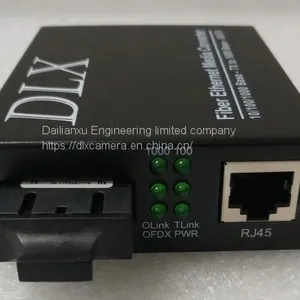

●Indicators for PowerSupply, Ethernet rate, Ethernet interface mode, Ethernet interface status and Optic-link
●Auto-negotiate andAuto-cross to NIC/HUB and MDI/MDI-X
●Supply one RJ-45electrical port
●Supports transmissiondistance up to
●Supports super jumbo frameand over-sized packets up to 1920Bytes
●Advanced optical andelectronic integration mechanism can supports good optic characteristic andelectrical characteristic, and can ensure the high quality and excellentreliability of data transmit
●Auto restart whencrashed, super heat radiation, super low power consumption(
●Main board adapts multilayer structure of circuit board, possess excellent reliability and goodanti-jamming feature
●Average working timeof fault free is more than 50,000hours,meet the standard of telecommunicationoperation
●Supports hot-swappable
●The Local end supportrack mounted
●support 12V DC
Technologies reference
●Operating temperature:~
●Storage temperature:~
●Environment humidity:5-90%(non-condensing)
●Power parameters:100V~260V AC (Inner power supply) or 5V DC (External power supply)
●Dimension:(L) x(W) x(H)
