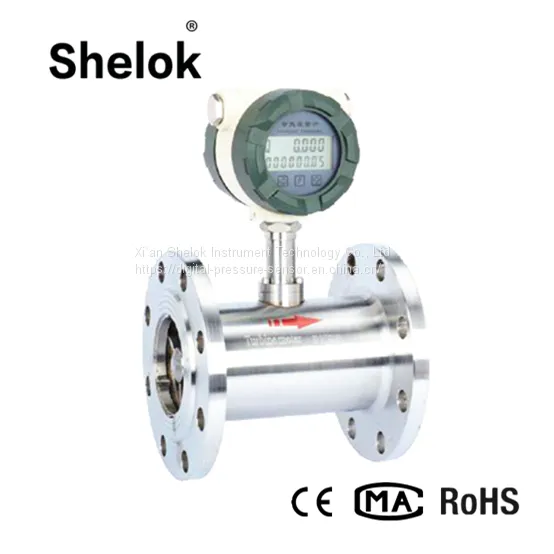

1.Description of water liquid fluid hydraulic industrial digital turbine flow meter:
This cheap china suppliers digital liquid turbine flow meter is used to detect instantaneous flow and total accumulated flow.And it converts the liquids into 4-20mA or pulse signal output.
2.Features of water liquid fluid hydraulic industrial digital turbine flow meter:
Require the media to clean, to install the filter
Advantages of the instrument
High accuracy, generally up to ± 0.5% R, ± 1.0% R
Good repeatability, short-term repeatability of up to 0.05% - 0.2%
Compact and compact, easy installation and maintenance
High pressure level
Pressure loss is small, strong circulation
Anti-vibration performance
3.Specification of water liquid fluid hydraulic industrial digital turbine flow meter:
| Model | LWGY-N | LWGY-A | LWGY-N Explosion type | LWGY-A Explosion type | LWGY-B | LWGY- C |
| Signal output | pulse | 4-20mA | pulse | 4-20mA | without | 4-20mA/pulse |
| Power supply | +24VDC±15% | +24VDC±15% | 24VDC±15% | 24VDC±15% | lithium battery | 24VDC±15% |
| Accuracy | 1.0~0.5 | 1.0~0.5 | 1.0~0.5 | |||
| Measuring range | Standard | Standard | Standard or extended | |||
| Monitor | without | without | within | |||
| Communication Interface | without | without | RS485 | |||
| Material | stainless steel | stainless steel | stainless steel | |||
| Explosion | without | ExdIIBT6 or ExiaIICT4 | ExdIIBT6 or ExiaIICT4 | |||
| Protection class | IP60 | IP65 | IP65 | |||
| Power consumption | ||||||
| Instrument pass through | DN4~DN250 | DN4~DN250 | DN4~DN250 | |||
| Medium temperature | -20ºC~120ºC | -20ºC~120ºC | -20ºC~120ºC | |||
| Ambient temperature | -30ºC~60ºC | -30ºC~60ºC | -30ºC~60ºC | |||
4.Application of water liquid fluid hydraulic industrial digital turbine flow meter:
This cheap china suppliers digital turbine flow meter is designed to measure the fluid velocity of the city water,pure water,deionized,water,ethyl alcohol,kerosene,gasoline,lubricating oil,etc.And the housing material is stainless which can be widely used in pharmaceutical and food industry.
