Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > X36BA Knee Type Milling Machine

X36BA Knee Type Milling Machine

Name: X36BA Knee Type Milling Machine
Brand: Sanmore
SKU: 158936714

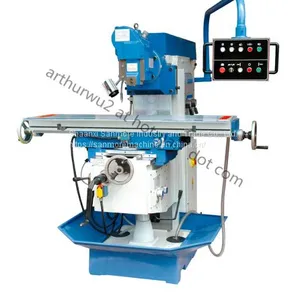

X36BA Knee Type Milling Machine thumbnail-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Sanmore

Place of Origin:

China

Model Number:

X36BA

Contact Supplier Request Quote Chat Now

Shaanxi Sanmore Industry And Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or other China port

Delivery Detail:

50 days

Product Details
Company Profile
Contact Us

Brand Name Sanmore

Place of Origin China

Model Number X36BA

Type Vertical

After-sales Service Provided Engineers available to service machinery overseas

Condition New

CNC or Not Normal

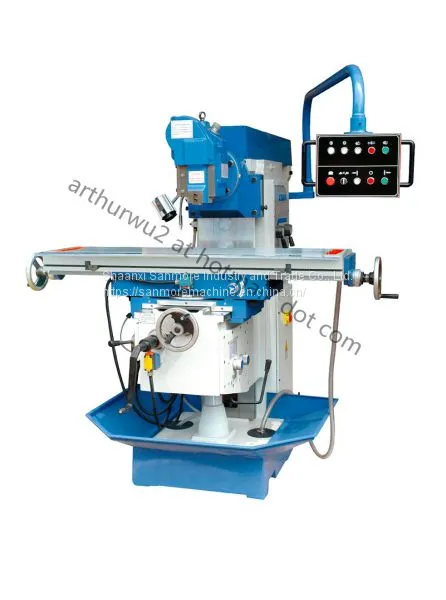

X36BA milling machine is based on the X36B knee type milling machine, installation of rotary table 45 degrees, can be achieved shaped pieces of processing.

Rectangular guideways on table and Z axis high stability and rigidity, hardened on X, Y, Z axes.

Model		X36BA
Milling vertical shaft inner cone hole		ISO40
Difference from spindle axis to guideway (mm)		345
Slotting maximum travelling range (mm)		105
Inserts works as extreme as extreme breadth		16
Slotting stroke number of times (/minutes)		≤80
Stroke number of times and transformation progression		With variable speed and milling horizontal axis series are the same
Horizontal axis turning		Positive rotation
Tool rest rotation angle (^o)		±90^o
Slotting tool cutter bar center to milling machine guide rail distance		525
The installation dimensions	With milling machine main axle joint taper	ISO50
	The mill subscribes the vertical guide rail angle	55^o dovetailed way, rectangular guideway
	Milling machine vertical guide rail width	260, 280, 300, 320,360
Horizontal axis center altitude		0-480
Table size (mm)		360×1500
Table travel(mm)		900×400
Over dimensions (mm)		2300×2000×2000
Main motor power (KW)		4
Feeding motor (KW)		1.5
Feeding speed		190, 350, 630
Spindle speed range		60-1800
Horizontal axis hole		ISO50
