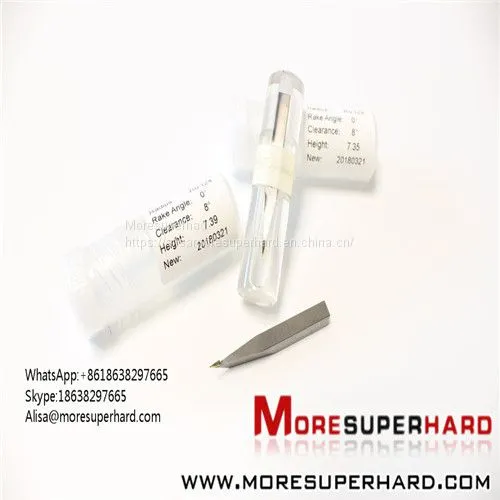

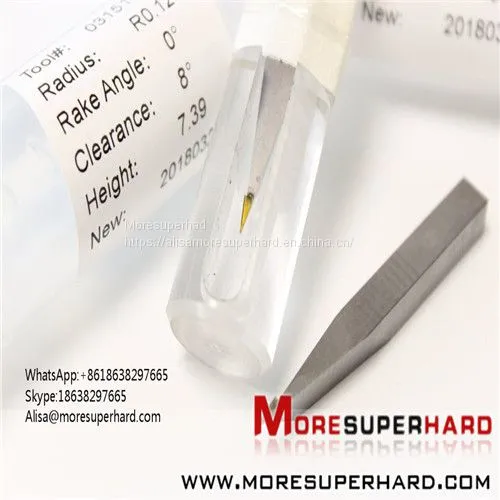

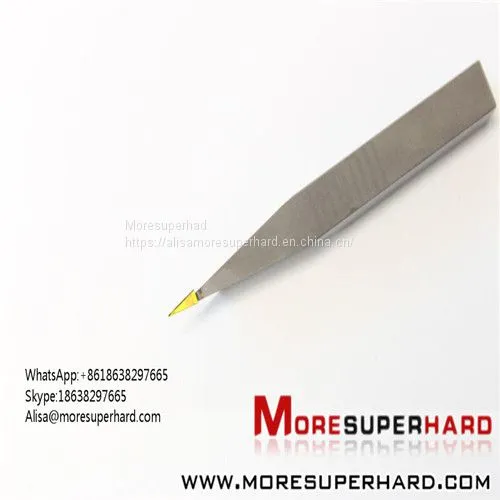

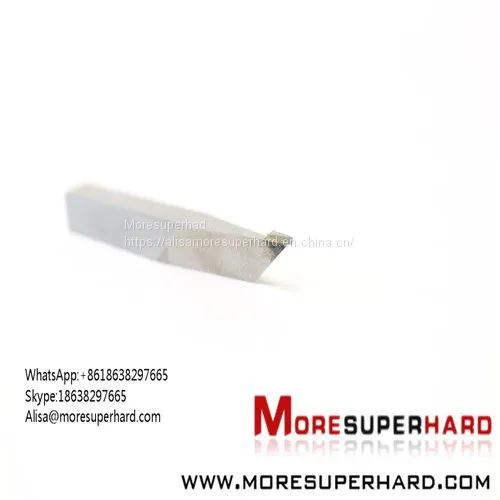

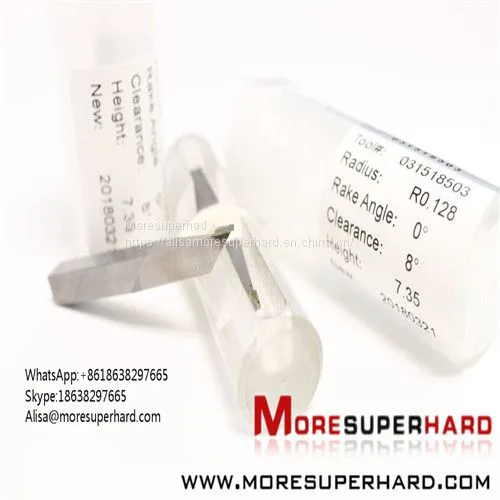

The mono-crystal diamond tools can achieve excellent cutting edge by grinding . And the surface finish can reach 0.025 micron or higher. Mono-crystal diamond tools are often used for machining high - precision parts with mirror finish.After processing, generally do not need to grinding,polishing and other subsequent processes.
Advantages of MCD cutting tools :1.High hardness and wear resistance
2.It will be not easily sticking the cutter
3.High efficiency and low cost
4.To obtain a higher surface finish
Types of Mono crystal diamond cutting tools:Application of single crystal diamond toolsWhen processing non-ferrous materials (such as silicon-aluminum alloy), it is generally not processed by single crystal diamond tools (SCD), but processed by a high life polycrystalline diamond tool (PCD).
However, in some cases, when the surface roughness parameters are required to be severe, the single crystal diamond tool (SCD) should be used for processing. For example, when a polycrystalline diamond tool (PCD) is used to turn an aluminum piston, the surface roughness Ra can reach 15 to 50 μm, and the surface roughness can be up to Ra4 μm by using a single crystal diamond tool (SCD).
in addition, the use of SCD tools can save processing time, such as processing aluminum wheels, used to be roughed with PCD tools, and then polished, instead of SCD instead of PCD tool processing, the workpiece can achieve the surface roughness of the mirror, eliminating the need for polishing Process.
Why choose our product
|
Our product’s advantages: 1.High grinding efficiency |
2.Wonderful edge quality |
3.Long service life |
4.High polishing efficiency |
5.Large Exports |
6.Considerable after-sell service |
7.Amazing performance |
8.Various types and sizes available |
9.Direct Factory Manufacturer |
10.Backing/substrate material: Aluminum |
11.Abrasive layer: diamond |
12.Bond: vitrified |
13.Excellent cutting edges |
14.Reduced cycle times |
15.Custom Engineered |
