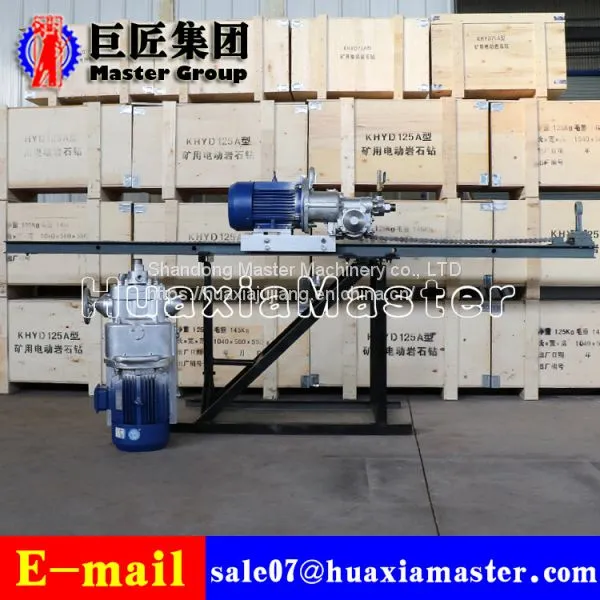

The brief introduction of KHYD125 rock electric drill
a.Drilling rigs can be fitted with drilling rigs, and can be drilled horizontally or
inclined upward or upward.
b.In order to prolong the service life of the drill bit and improve the working conditions of the operator, wet drilled water can be used to discharge the powder and screw blade drills can also be used for dry draining.
c.In drilling operations, we only need to operate the hand wheel, and we can advance and return quickly.
The parameter of KHYD125 rock electric drilling rig
Model |
Unit |
KHYD125 |
Rated output power of motor |
kw |
7.5 |
Rated voltage of motor |
v |
380/660 |
Rated frequency of motor |
hz |
50 |
Rated current of motor |
a |
15.4 |
Motor speed |
r/min |
1440 |
Motor phase number |
three phase communication |
|
Rated working mode |
continuity |
|
Drilling speed |
mm/min |
280 |
Rig return speed |
m/min |
|
Borehole diameter |
mm |
42-80（rock stratum） |
The rigs can be applied to the range of rock hardness |
(pri hardness coefficient） |
f |
Drilling rig's maximum drilling depth |
m |
25（rock stratum） |
The weight of drilling rig (excluding runways, drill pipes, drills) |
kg |
125 |
External size (length *width *height) |
mm |
950*460*430 |
