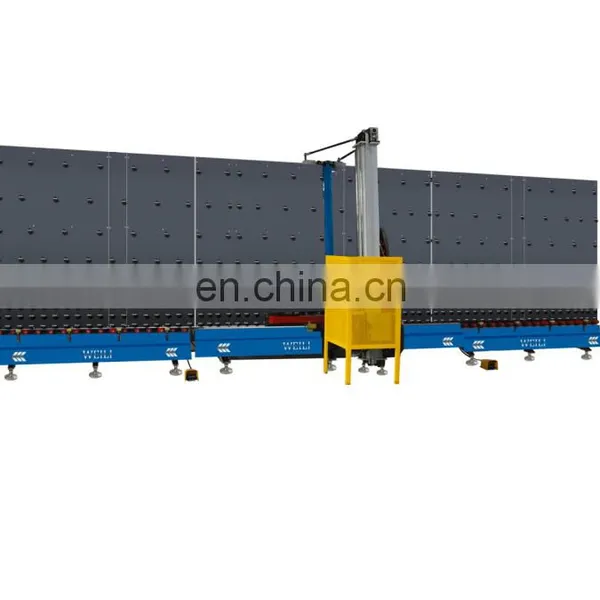

Vertical Low-e Glass Delete Coating Machine

Vertical Low-e Glass Delete Coating Machine thumbnail-1
Vertical Low-e Glass Delete Coating Machine thumbnail-2
Vertical Low-e Glass Delete Coating Machine thumbnail-3
Vertical Low-e Glass Delete Coating Machine thumbnail-4
Vertical Low-e Glass Delete Coating Machine thumbnail-5
Vertical Low-e Glass Delete Coating Machine thumbnail-6
Vertical Low-e Glass Delete Coating Machine thumbnail-7
Vertical Low-e Glass Delete Coating Machine photo-1
Vertical Low-e Glass Delete Coating Machine photo-2
Vertical Low-e Glass Delete Coating Machine photo-3
Vertical Low-e Glass Delete Coating Machine photo-4
Vertical Low-e Glass Delete Coating Machine photo-5
Vertical Low-e Glass Delete Coating Machine photo-6
Vertical Low-e Glass Delete Coating Machine photo-7
US$ 22,131 - 27,049 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
weili
Place of Origin:
Shandong, China
Certification:
CE&BV&SGS
Contact Supplier Request Quote Chat Now
Qingdao Yuntai Industry Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name weili
Place of Origin Shandong, China
Warranty 1 Year
Weight 3500KG
Dimension(L*W*H) 8000*2500*3400mm
Production Capacity 15sets/month
Condition New
Voltage 380V
Power(W) 15000W
Machine Type Glass Coating Machine

                     Coating Deletion Machine(WLCM2500)

 Main feature and function

1. Four axis servo control system

2. Two-way glass input

3. Auto detect glass size

4. Abrasive wheel contact surface pressure auto adjustment system

5. Auto dedusting function

6. Auto abrasive wheel modification function

7. Control system intelligently memorize batch processing function

8. Linear guider location mechanism

9. Safety protection device

10. Abnormal shape glass coating deleting function (optional)





 Technical parameter

Max. glass processing size                 2500*3000mm

Min. glass processing size                350*500mm

Glass thickness                                     3-19mm

Edge deleting width                              10-50mm

Glass conveyor speed                          30m/min

Edge deleting speed                            0-15m/min

Abrasive wheel width                            10/12/15mm

Air supply Flow                                   0.2m³ /min, Air pressure ≥ 0.8Mpa

Total Power                                      3P 380V 50HZ 3.35 KW

Dimension                                      8000*2500*3400mm (L*W*H)



Product Description

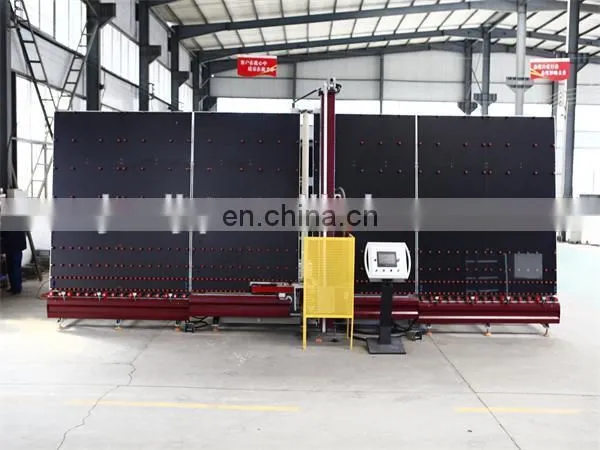

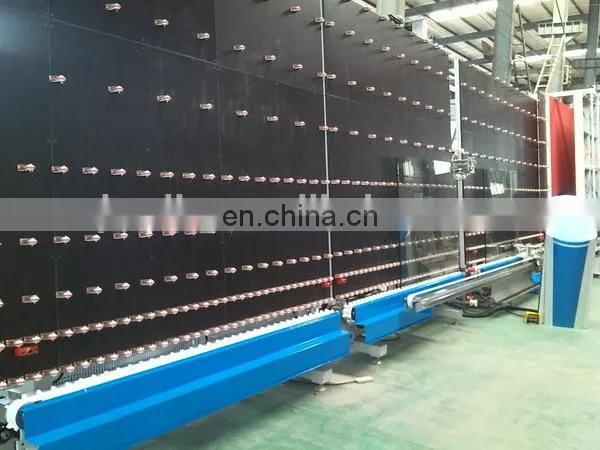

vertical low-e glass delete coating machine

vertical low-e glass delete coating machine

 vertical low-e glass delete coating machine

vertical low-e glass delete coating machine

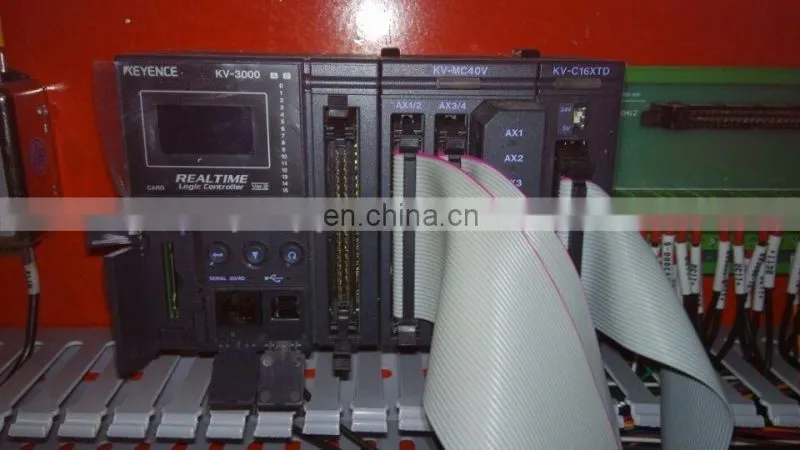

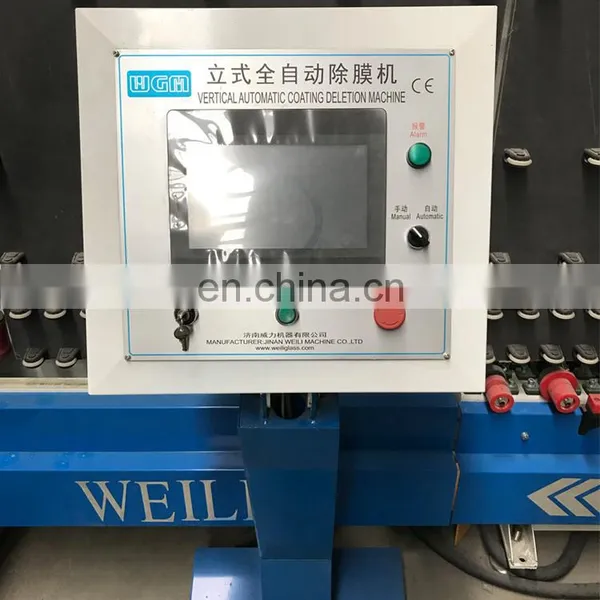

                                                         KEYENCE PLC





vertical low-e glass delete coating machinevertical low-e glass delete coating machine

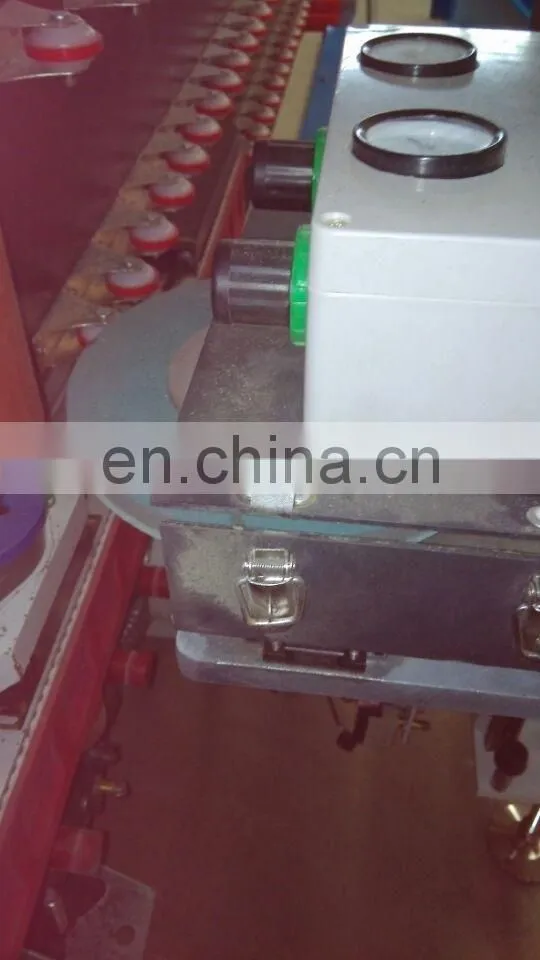

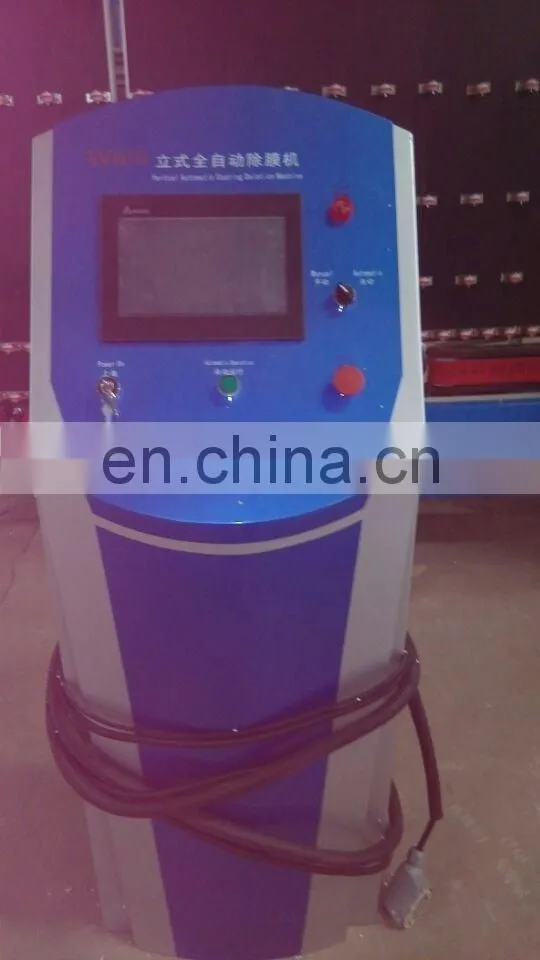

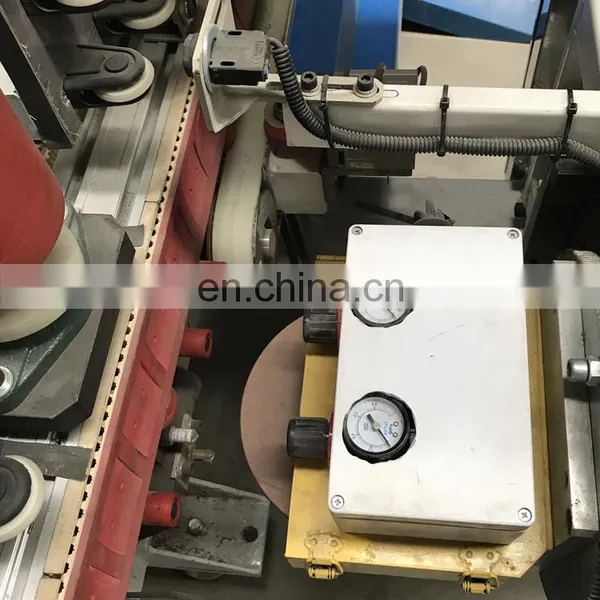

                    grind wheels                                                                                   operation computer

Packaging & Shipping

 vertical low-e glass delete coating machine



Company Information

 vertical low-e glass delete coating machine
