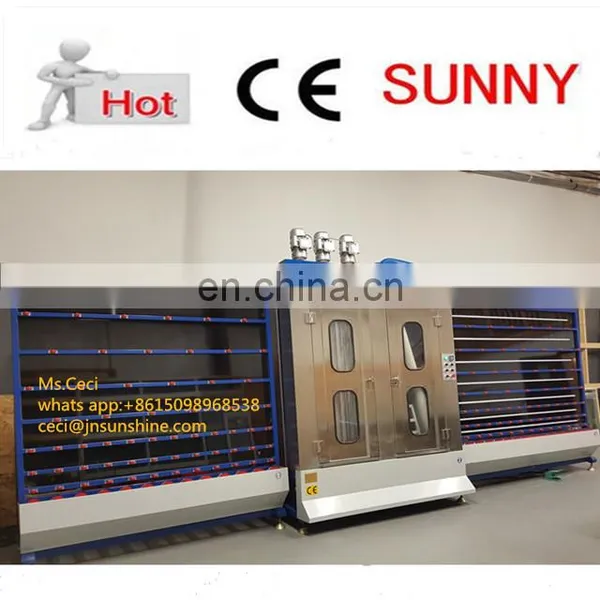

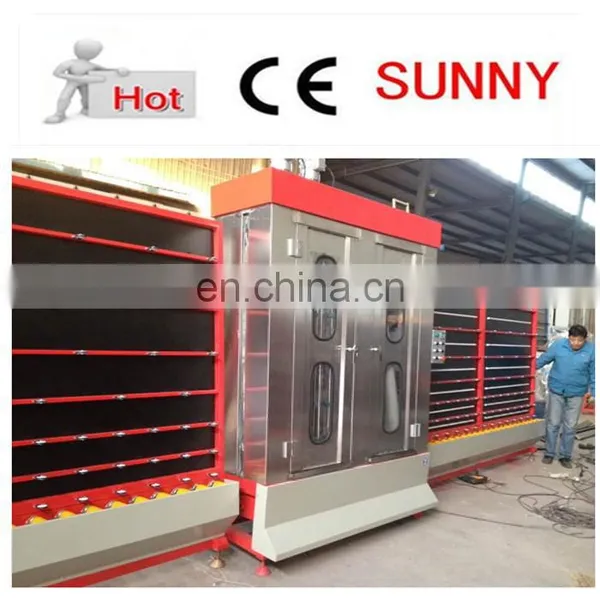

2500 vertical insulating glass washing machine
Two kinds of glass washing we have : one kind is vertical glass washing machine ,another kind is horizontal glass washing machine .
1. Vertical glass washing machine
Advanced Germany technology,main components adopts international famous brand, reliable performance, Power function can produce double unit,LOW-E unit ,extended unit ,Shaped unit , stepped unit , triple and so on
Note: we can supply according to the max glass size you want to process, as following:
Power supply: |
380V 50Hz |
Air consumption: |
200L/min |
Max. process glass: |
1600X2000mm, 1800x2500mm, 2200x3000mm, 2500x3000mm |
Min. process dimension: |
200×200mm |
Thickness of glass sheet: |
3-19mm |
Max. process speed: |
50m/min |
Main Features:
1. Glass washing & drying section:
A. Glass washing & drying section is made of 304# stainless steel.
B. Washing speed is 12m/min, equipped with water heating system. SKF Oil-free bearing avoid the oil molecular pollution to glass.

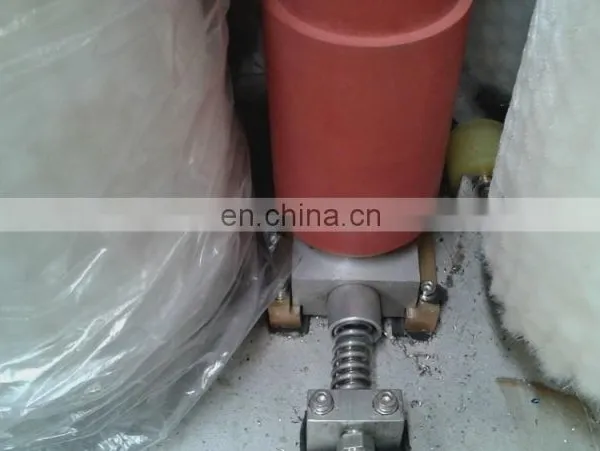

C. Six delivery solid rollers, are acid-proof, alkali-proof and anticorrosive. The distance is adjustable automatically.
D.NC bending rhombic air knife. Circle wind saves energy and avoid the wind pollution. Sponge down the noise.
E. Four level clearance: three pairs of brushes and one pair of sponge rail, guarantee the washing quality.
Six high- temperature nylon brushes, diameter is 180mm. The first two are hard brushes.
Power supply: |
380V 50Hz |
Air consumption: |
200L/min |
Power: |
14kW |
Max. process glass height |
1600mm*2400mm |
Min. process dimension: |
200×450mm |
Thickness of glass sheet: |
3~19mm |
Max. process speed: |
50m/min |
2. Horizontal glass washing machine
Main feature:
1.It is for glass washing and drying.
2.The machine is combined of glass washing section, sponge absorption section and heating air drying section
3.Glass washing section is made of stainless steel.
4.Washing sections operation speed is frequency changeable.
5.Adopts 3 pairs of brushes, 2 pairs of Sponge Roll, fully guarantees the glass washing effect.
Main technical parameter:
Type |
BX1600 |
Voltage: |
380V 50HZ |
Total power: |
18.5KW |
Max work speed: |
12m/min |
Cleaning speed: |
0-12m/min |
Max glass size: |
1600*2500mm |
Min glass size: |
450*200mm |
Cleaning glass thickness: |
3-12mm |
Size of shape: |
4000*2250*1100mm |
Payment Method:
30% of machine value as deposit is paid by T/T, 70% Pay the balance before shipment.
Delivery Item:
20 days after our company received the first payment that our customer give me.
Service Item:
The manufacturer will send technician(s) to buyer’s factory for providing
installation and commissioning and train service.
Warranty period:
1 year since the date of B/L, in warranty period, the manufacturer can provide free
charge of replace spare parts because of machine itself quality problem.
Contact person: Miss Ceci
Skype: missliu106
TM:1000395095
Tel:86-15098968538
