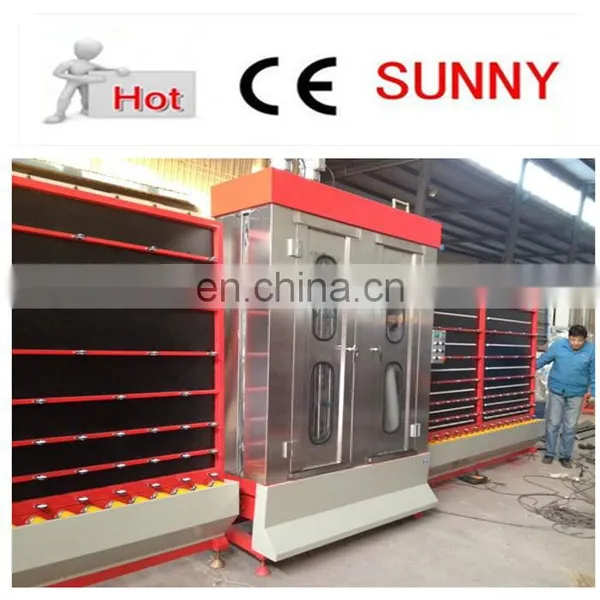

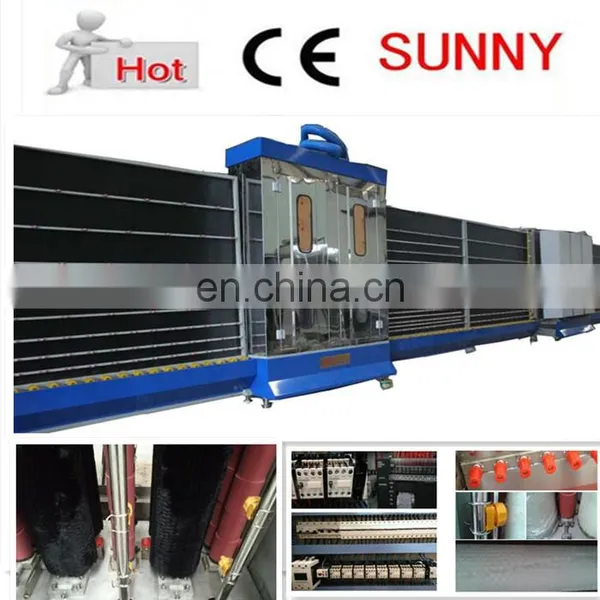

Vertical glass washing and drying machine (LBW2500)
Technique parameter
| Max. glass size | 2500x3000mm |
| Min. glass size | 300x500mm |
| Thickness of washing glass | 3-12mm |
| Max.Insulating Glass Thickness | UP to 50mm |
| Max.in washing section | 20m/min |

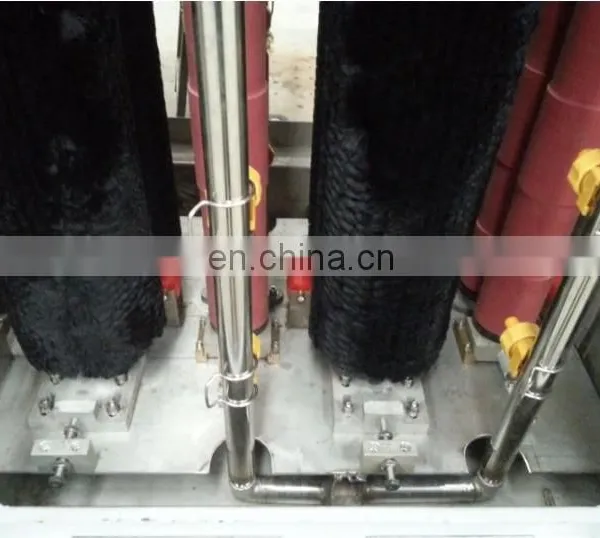

| Brush | 3 Pairs(Low-e) |
| Power voltage | 380V/50-60hz |
| Size of line | 9000x2350x3200mm |
| Power rate | 20kw |
PERFORMANCE:
1.Glass washing machine adopts PLC control,cleaning machine are using digital control system,the equipment operation more humanized,high automation degree,easy operation.
2.Man-machine interface using touch screen control,automatic conversion.Operation single section
with display function.Can accurately show the machine running and fault condition,then convenient repair.
3.Automatic recognize file of coated glass and low-e glass
4.The body of washing machine are all made of industrial stainless steel
5.Cleaning machine can clean coating and low-e glass,the machine have function of automatic alarm and
stop when have error.
6.Washing machine adopt bearing of waterproof and lubrication
7.Unique Design for automatic spraying system,Spraying angle can be any adjust,Cleaning and maintenance is convenient and fast.the tank of washing machine have heating system.Room temperature ≤7°C,Recommended that to use it.
8.The blower adopt take the wind from outside and to circulation.to sure the clear air(Power:11kw),can ensure that the glass clean completely dry.Fan is equipped with air heating system,Room temperature ≤7°C,Recommended that to use it.
9.Drying area adopts bottom roller wheel driving method, coating or low-e glass surface without the rubber roller extrusion scratches which can effectively prevent to take off the film phenomenon
10.Transfer plate adopts high strength plate of polycarbonate,
11.The transfer wheel adopt Nylon axis core,PU wheel.
12.The rolling wheel adopt PU .
Main Components:
NO. |
Part |
Brand |
From |
1 |
Air switch |
OMRON |
Japan |
2 |
A.C. contactor |
OMRON |
Japan |
3 |
Fiber-optic switch |
OMRON |
Japan |
4 |
Optoelectronic switch |
OMRON |
Japan |
5 |
Programmable controller PLC |
OMRON |
Japan |
6 |
Frequency Transformer |
OMRON |
Japan |
7 |
Temperature controlled switch |
OMRON |
Japan |
8 |
Human-computer surface |
OMRON |
Japan |
9 |
Bearing |
SKF |
SWEDEN
|
Other Mainly model we have :
LBZ2500 (2500x3000MM)
LBZ2200(2200X3000MM)
LBZ2000(2000X3000MM)
LBZ1800(1800X3000MM)
Remarks:
A. Pkg: for long time transportation
B. Terms: Freight On Board (FOB Qingdao)
C. From Qingdao, China
D. Delivery Time: During 15 Days After We Receive Your First Payment.
E. Payment: Telex Transfer (T/T), 30% be Paid as deposit, and the rest 70% is paid before delivery the machine.
F. Guarantee period: 1 year from the date of customer receiving the machines.
