Aluminum Windows Doors Machine (Corner Crimping Machine)
US$ 20,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SUNNY, sunny
Place of Origin:
Shandong, China
Model Number:
LJJZ4-100x1800x3000, LJJZ4-100x1800x3000
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Aluminum Profile Double Head Cutting Saw Machine / LJZ2-500x4200 Aluminum Cutting Saw MachineUS$ 10,000 - 15,000MOQ: 1 Set -
Aluminum Window and Door Machine/ Aluminum Profile Frame Cutting SawUS$ 10,000 - 15,000MOQ: 1 Set
-
Cutting Saw Machine/ Double Head Cutting Saw for Aluminum Windows and DoorsUS$ 3,000 - 5,000MOQ: 1 Set
-
Corner Combining Machine-Aluminum Window MachineryUS$ 1,800 - 2,000MOQ: 1 Set
-
End-milling Machinery for Aluminum Window and DoorUS$ 1 - 1,000MOQ: 1 Set
Brand Name
SUNNY, sunny
Place of Origin
Shandong, China
Model Number
LJJZ4-100x1800x3000, LJJZ4-100x1800x3000

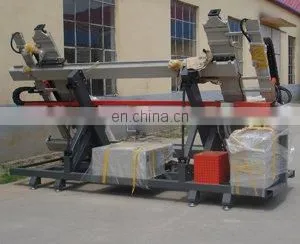

CNC Four-head Corner Crimping Machine[ LJJZ4-100x1800x3000]/
Aluminum Windows and Doors Machine
Features:
- Used for crimping four corners at one time.
- Utilizes low-pressure preset and hi-pressure impact riveting with precise positioning and high precision
- Featuring easy operation, adjustable space between punch rivet jar and slide assures high quality efficiency and stability.
- Adjustable position of pressing device, positioning device and punching rivet knives make it able to crimp corners of different profiles.
- The sturdiness of this machine makes it superior to the ordinary four-point crimping machines. Stable running, simple semi-automatic operation with high efficiency.
- Wide processing scope, can accommodate 400x400mm materials.
Technical Parameters:
- Power supply: 380V/50Hz
- Air pressure: 0.4~0.6Mpa
- Air consumption: 0.45L/Min
- Input power: 3.5Kw
- Hydraulic system pressure: 18Mpa
- Max.dimension of profile section: 100×100(mm)
- dow size: 1800×3000(mm)
- dow size: 450×4500(mm)
- Joint error: ≤0.15(mm)
- Overall dimensions: 4700x2450x1180(mm)
Advantage of our Products:
Good Quality, Competitive Price, Perfect Service!
No matter what question you have, we will answer you straight away!
Product:
Customers visit our factory:
