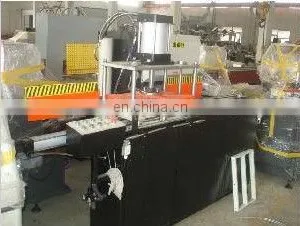

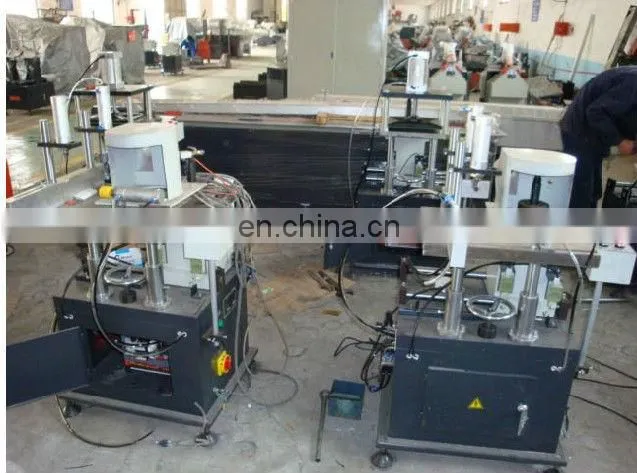

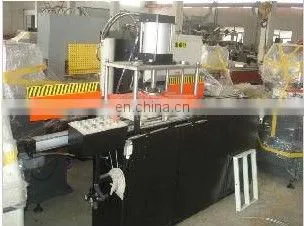

end-milling machinery for aluminum window and door
model |
LXD-250B -02 |
power supply |
380v 50HZ |
input power |
8.8KW |
Air pressure: |
0.5-.0.8Mpa |
Air consumption |
150L/min |
motor speed |
2800r/min |
main shaft diameter |
32mm |
milling cutter diameter |
250mm |
outer dimension |
2400*970*1450mm |
weight |
600kg |
Products details:
1.Type: Aluminum Profile End-milling Machine, Aluminum Profile End-milling Equipment, Aluminum Milling Machine for Window Door
2.Application: Used for aluminum profile end processing, suitable for various profiles fitting.
3.Machine Features: With a large work bench and long cutting stroke,it can mill 6-10 profiles with one operation.With adjustable cutting tools,it is unnecessary to replace multiple cutting tools in case of changing the product so as to save the production period and cost of cutting tools.Multiple sets of cutting tools can work simultaneously or separately based on different profiles.With bigger diameter of cutting tools,the quality of machining surface is better.The hydraulic damping cylinder is used to push the feed of cutting tools to enable more stable operation.The thickened clamping plate can prevent the profiles from deforming.
Used for processing aluminum profile s end slot and step face. The end slot and step face processed can be vertical with the profile or have a certain angle.
4.Related Aluminum profile configuration machines
Name |
Model |
Single head Corner combining machine |
LZJ-02 |
Double head corner combining machine |
ZJ-100X3000/1800 |
CNC- double head cutting saw |
LJZ-CNC-500X4200 |
Double-head precision cutting saw |
LJZB-500X4200 |
Double-head precision cutting saw |
LJZY-500x4200 |
Double-head cutting saw |
LJZ2-450X3700 |
End-milling machine |
LXD-250 |
End-milling machine |
LXD02-200 |
End-milling machine |
LXD-200 |
Bending machine for aluminum profile |
LW-100 |
Corner connector automatic cutting saw |
LJJ-140 |
Punching machine for aluminum profile |
LY-63 |
Punching machine for aluminum profile |
LY-30 |
