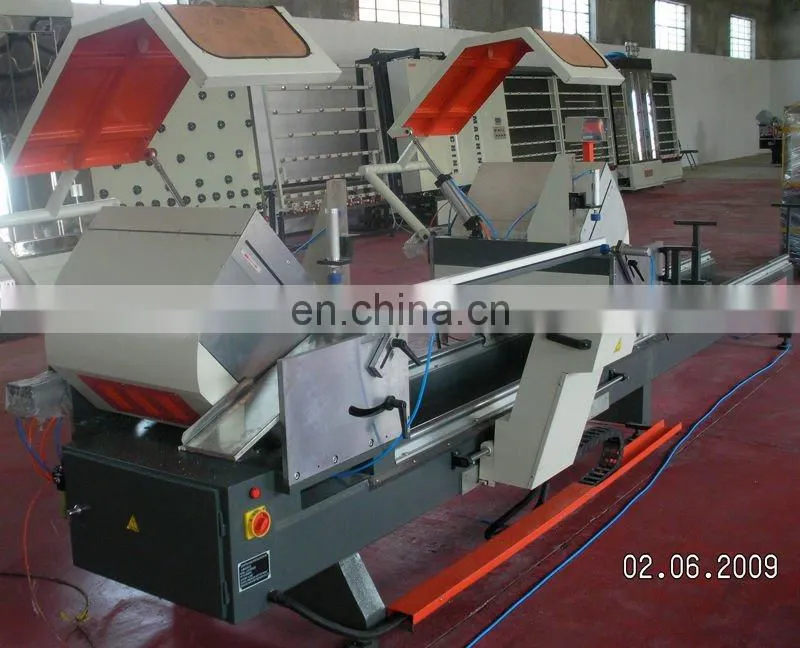

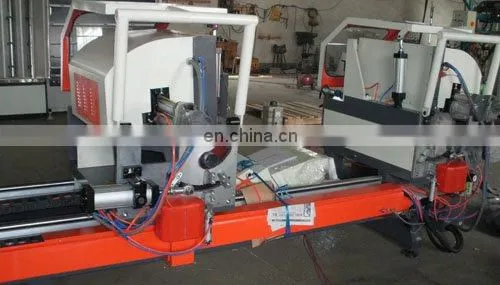

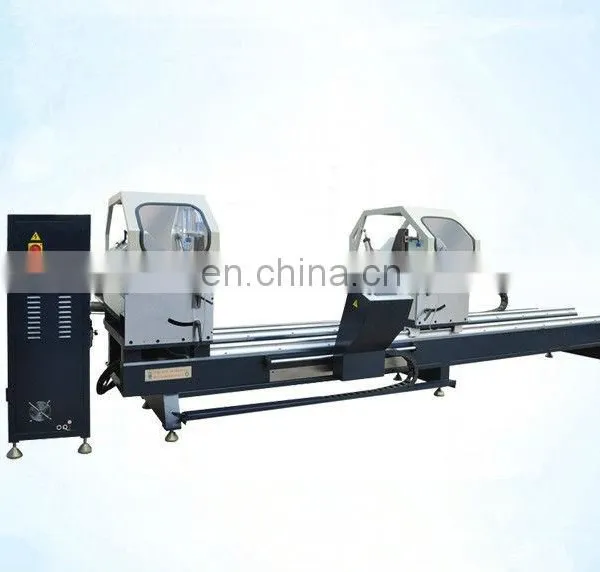

Aluminium CNC-Control Double Heads Cutting Saw Machine
Main Features
The imported numerical control system with numerically controlled cut length ensures precise dimensions, the imported ball screw shaft drives the machine head to move horizontally with high precision of repeated positoning. A series of optimal length data can be inputted at the same time to realize continuous cutting in series, the machine adopts imported specialized saw blades for stiff alloys, imported linear guide rail pairs as cutting feed guide rails, and hydraulic damping cylinder to drive the feed of saw blades, The processing range is wide, with cut length up to 4200 mm,and cut angles of 90º,45º,22.5º,The switchover between three angles is automatic.
Technique Parameter
Model number |
LJZ-CNC-500*4200 |
Working Air Pressure |
0.5~0.8Mpa |
Power supply |
380V 50Hz |
Input power |
6.5Kw |
Blade rotational speed |
3100r/min |
Saw blade dimension |
D=500mm,d=30mm |
Cutting length |
Min380mm Max4200mm |
Cutting angles |
90°,67.5°,45°,22.5° |
Outside dimension |
5700*1750x1990mm |
weight |
1900kg |
Other Related Machines for Aluminum Profiles
CNC Double Head Precision Cutting Saw
Digital Display Double Head Precision Cutting Saw
Lock Hole Groove Processing Machine
End Milling Machine
Single Head Corner Combining Machine
Corner Connector Cutting Saw
