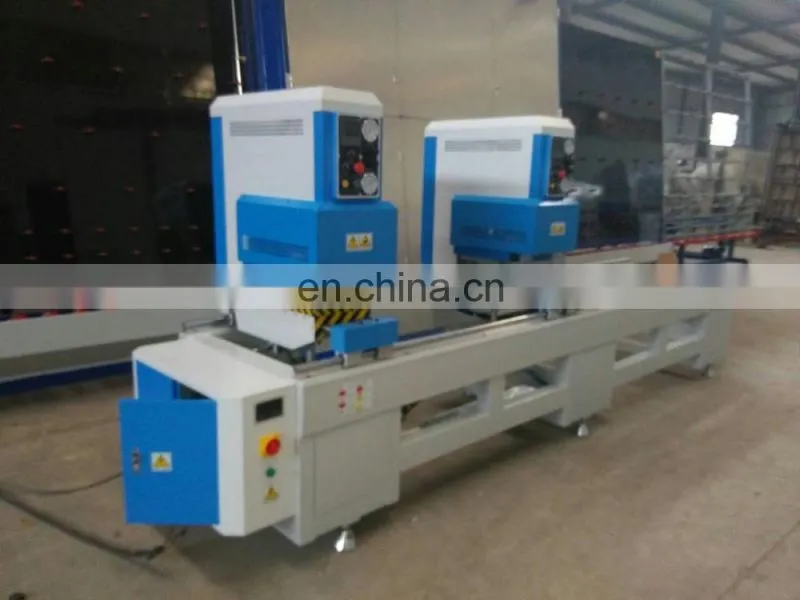

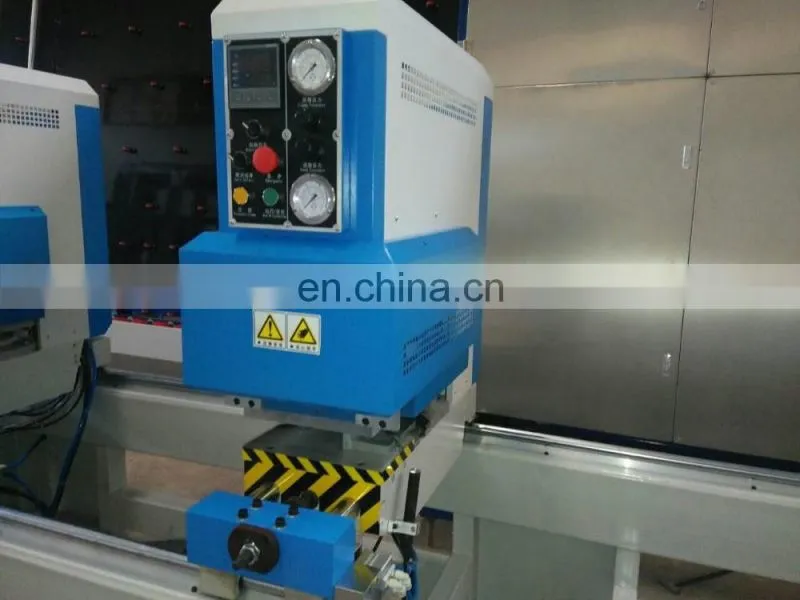

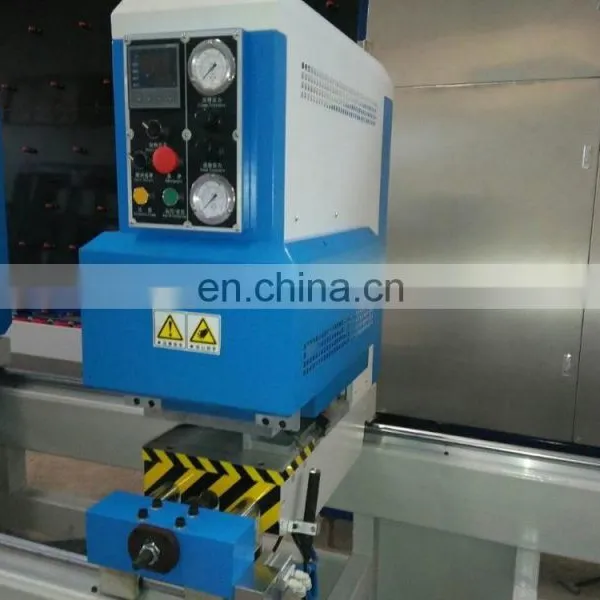

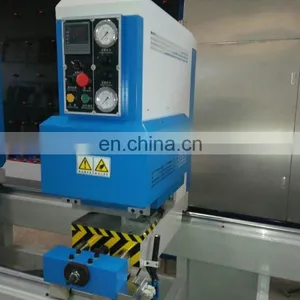

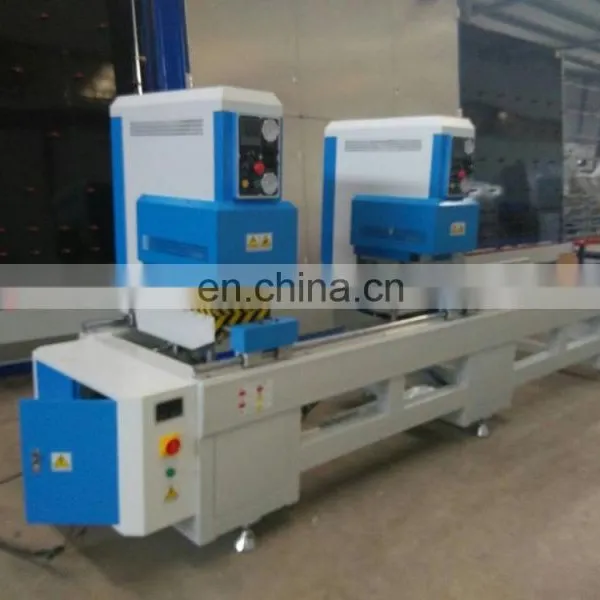

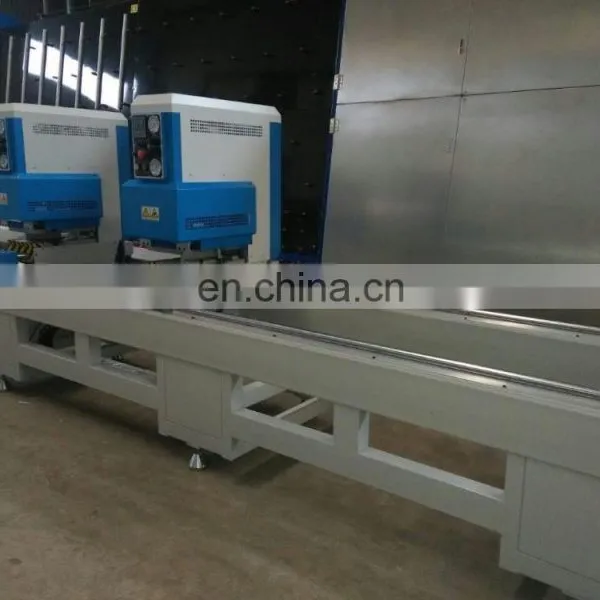

Double head Seamless Welding Machine
1. Equipment Features:
- Suitable for welding colored / special PVC profile.
- All the clamper jaw with blades can realize the seamless welding function.
- Adopt programmable controller (PLC) ensures the machine running more steady and reliable.
- Double pressing function ensures higher welding strength.
- Professional mould configuration can be designed according to the different profiles so that ensure the corners welding and cleaning in good condition.
- Front and back clamp pressure regulation device, realize the clamp pressure independent adjustment which can improve the smoothness of the welding angle.
- The heads can be used individually, combinatively or jointly as well as be combined at will.
2 . Main specification and technical parameter:
Power supply |
380V 50 Hz |
Total Power |
3.5 Kw |
Working air pressure |
0.4-0.8 Mpa |
Air consumption |
200 L/min |
Height of welded profile (max) |
20-100 mm |
Width of welded profile (max) |
0-120 mm |
Welding Range |
400-3300 mm |
Dimenion |
4300*1000*1700 mm |
Weight |
1300 kg |
Remarks:

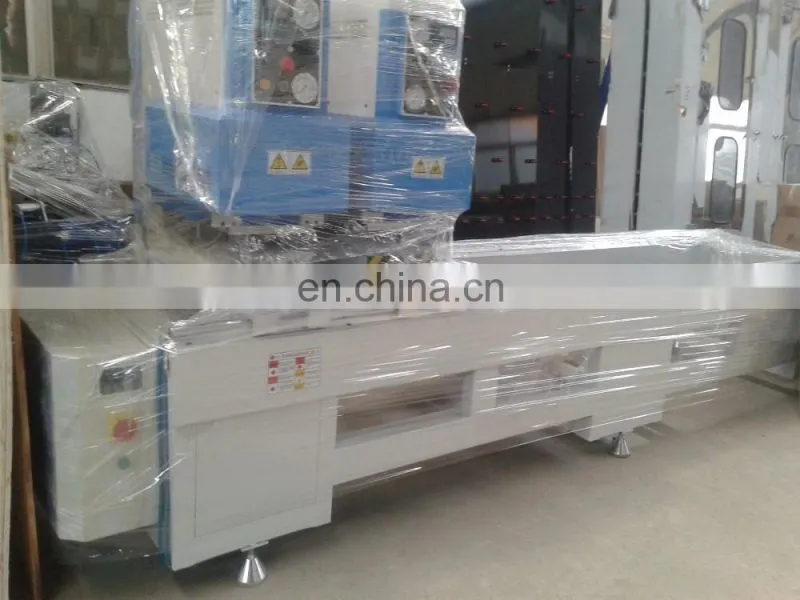

A. Pkg: for long time transportation
B. Terms: Freight On Board (FOB Qingdao)
C. From Qingdao, China
D. Delivery Time: During 15 Days After We Receive Your First Payment.
E. Payment: Telex Transfer (T/T), 30% be Paid as deposit, and the rest 70% is paid before delivery the
machine.
F. Guarantee period: 1 year from the date of customer receiving the machines.
Contact ----- Ms Ceci Liu
Mobile:0086-15098968538
Trade manager: cn1000395095
Skype: missliu106
