hydraulic olive oil press machine, palm oil press machine ship to Surabaya

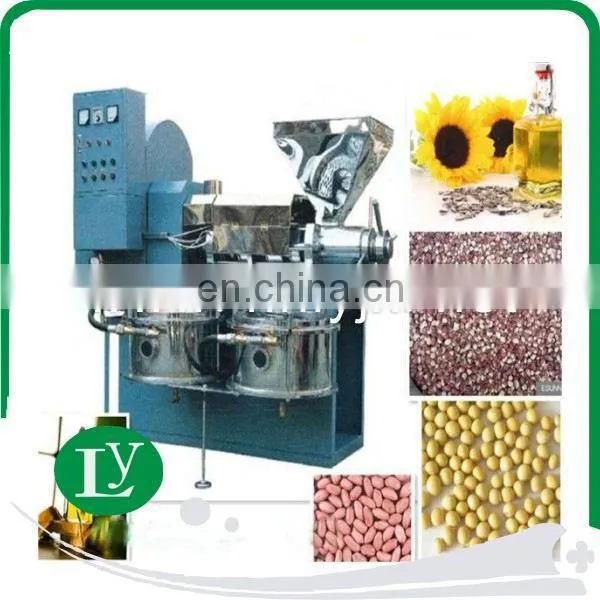

The main fuction of the small palm oil press machine introduction:
Small palm oil press machine structure is reasonable. It is easy to operate and maintain. The small palm oil press machine can be fitted with motor or diesel engine. Each day the small palm oil press machine can produce palm oil 8-12T. It is the best selection for small capacity Palm Oil producingcustomers. The final oil is edible red oil. You can refinery or directly for edible.We also could supply bigger capacity palm fruit oil press machine for whole line palm oil processing plant.
specification:
Motor: 4kw
Main Shaft Speed: 25-35r/min
Boiling Time: 2h(100 degree steam or water)
Weight (kg): 260kg
Packed Size(mm):1500*800*1200
the advantages of our products:
Comparative advantages of rapeseed oil press machine:
High oil extraction rate - compared to the old equipment, the oil extraction rate can be 4-8 percent higher than the normal, and there will be more 6-10 pounds per hundred pounds of rapeseed processing on average. The annual economic benefits are substantial.
Energy saving - equivalent production saves 40% electric power. With savings of 6 kWh per hour an average, the production can save 30 RMB electricity every day.
Labor saving - equivalent production saves 60% labor. 1-2 persons can organize to produce. The daily labor savings is about 40 RMB.
Wide usage - a machine can be multifunction for pressing tea seed, peanuts, flax, sesame, sunflower, cottonseed, soybean, tung seed and other 30 kinds of oil crops. One time finishes five grades pressing.
Pure oil - vacuum filters residue to keep the oil clean, meeting the hygienic standards.
Small occupation of land- 10-20 square meters’ oil mill will be able to meet the needs of the machine.

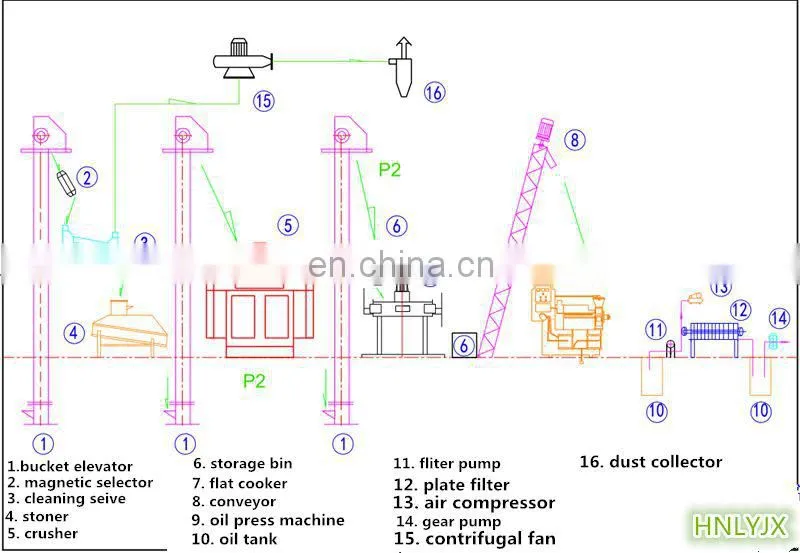

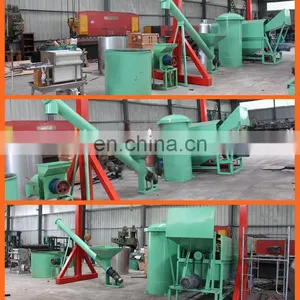

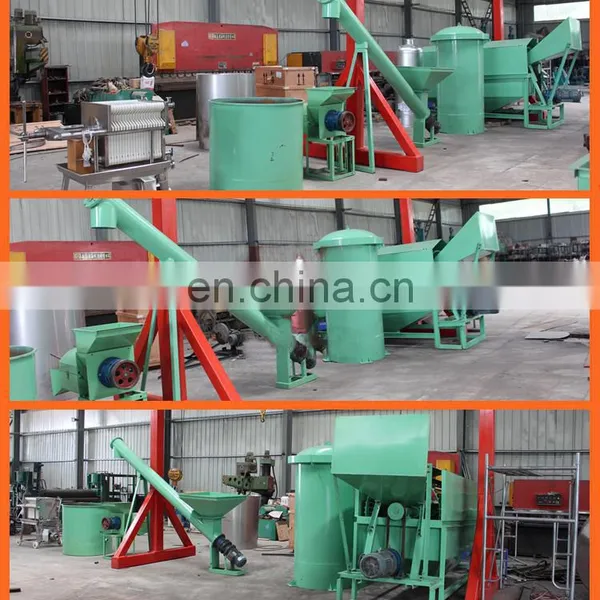

the pretreatment equipments in the palm oil production line
Pretreatment production line is for cleaning and adjusting texture of the materials , it can improve oil yield rate, reducing breakdown of the machines. General speaking, the pretreatment machines include Magnetic drum, Cleaning sieves , sheller , Crusher , Flaking roll, Cooker, Softening pot , Puffing machine, and plate type drier. We usually accord to the customers' materials to collocate proper pretreatment production line.
Main parts of oil seeds pretreatment line :
|
A.Magnetic drum |
A. Magnetic drum: It is making using of the magnetic power to remove the metal impurities, such as the iron nail and small steel , it can avoid these impurities to destroy the machines in follow steps. |
|
B.Cleaning sieves |
B. Cleaning sieves :There is some mud, leaves and other pellets in oil seed, we need to using the cleaning sieve to remove them . The frequency movement can improve the efficiency of cleaning, the light dust is removed by the suction system. Its processing capacity is large, it is usually adopted by the middle and large scale oil factory. |
|
C. Teeth roll sheller unit |
C. Teeth roll sheller unit:It is making using of the movement power of a pair of toothed roller to break the shells of the oil seeds .Why we need must move the shells? Because there is very little oil content in the shells , if we don't remove it , it will absorb away the oil from the kernel. It is usually used for processing peanut , sunflower seeds , etc. |
|
D.Crusher |
D. Crusher: It is used for crush the big size kernel to several pieces by external power . About the soybean, peanut kernel, before prepressing , the crushing section is required , because it is making preparation for flaking. |
|
|
E. Flaking roll : It is the process of making use of the mechanical action to flake the kernel into flakiness. After flaking, the materials is becoming thiner thank before, it is good for absorb moisture and heat in cooking process , and it is much easier for getting oil in the oil press process. |
|
F.Cooker |
F. Cooker: The main function of this part is wetting , heating, cooking and drying the the flakiness, the effectiveness of the cooking will affect on the oil out rate and the quality of the meal. |
|
G. Softening pot |
G. Softening pot : It is usually used for processing the soybean. Its main function is conditioning the moisture and temperature of materials , increasing its plasticity .This process also can be effectively prevent powder overmuch and roll banding in follow processes. |
|
H. Bulking machine |
H. Bulking machine: It is usually used for processing rice bran in oil field . The high temperature and pressure to make the materials into graininess. During this process, the materials are puffing sharply , the internal moisture was evaporated quickly and formed into loose structure , it is good for solvent extracting oil out. |
|
I. Plate type dryer |
I. Plate type dryer: It is used for drying the moisture in the materials . After puffing , the moisture content is about 11%-13% , it is too high , it is not suitable for solvent extracting , so we need to dry moisture to 7%-9%. |
Application:
package
