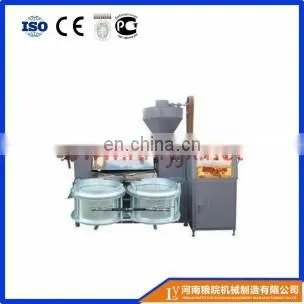

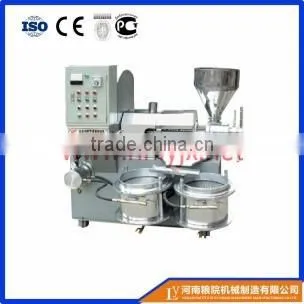

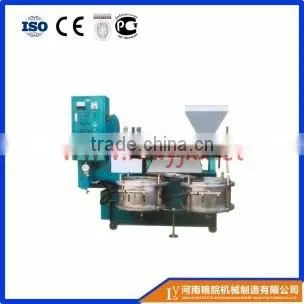

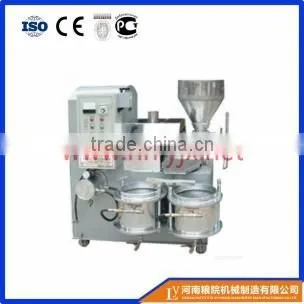

China latest technology olive oil press / engine oil refining machine
Features of oil press machine
1.Can be used for both hot press and cold press.
2. High oil yield and good condition oil cake.
Raw Material |
Output Rate (%) |
Oil left in cake after pressed (%) |
Rape seeds |
30-38% |
≤6 |
Peanut |
35-45% |
≤6 |
Soybean |
10-16% |
≤6 |
Sesame |
44-47% |
≤6 |
Cotton seeds |
10-14% |
≤6 |
corn embryo |
25-35% |
≤6 |
Sunflower seeds |
36-42% |
≤6 |
flax seeds |
35-38% |
≤6 |
castor seeds |
35-42% |
≤6 |
tea-seeds |
28-35% |
≤6 |
Temperature Regulator Chart | |
Raw Materials |
Temperature Range |
seasame |
180~230 |
peanuts,vegetable seed, soybean, sunflower seed,okra etc |
140~190 |
tea seed |
150~190 |
Available oil press models for reference:
Model |
LY-230 |
LY-410 |
LY-460 |
LY-460-2 |
LY-460-3 |
LY-460-4 |
LY-500 |
Working pressure |
50MPa |
45MPa |
40MPa |
40MPa |
40MPa |
40MPa |
40Mpa |
Push power |
120t |
120t |
150t |
210t |
150t |
210t |
300t |
Diameter of squeezing tube |
230mm |
410mm |
460mm |
460mm |
460mm |
460mm |
500mm |
Stroke of piston |
500mm |
500mm |
500mm |
500mm |
700mm |
700mm |
700mm |
Volume of tube squeezing tube |
10kg |
80kg |
110kg |
110kg |
150kg |
150kg |
200kg |
Average productivity |
200kg/8h |
700kg/8h |
900kg/8h |
900kg/8h |
1200kg/h |
1200kg/h |
1500kg/8h |
Main power |
1.5kw |
1.5kw |
2.2kw |
3kw |
3kw |
3kw |
4kw |
Ribbon heater power |
4kw |
4kw |
4kw |
4kw |
4kw |
4kw |
4kw |
Prepressing oil cylinder |
10MPa |
10MPa |
10MPa |
10MPa |
10MPa |
10MPa |
10Mpa |
weight |
1300kg |
1500kg |
1800kg |
1800kg |
2300kg |
2400kg |
2800kg |
Application of Oil Press machine:
Packaging
Packaging:all machines covered by plastic film firstly and then packed in wooden case to best protect the machine during long time transportation.
shipping
Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
Our service
1. One year quality warranty for the machine and spare parts
2. Overseas engineers service for installation
3. Whole-life after-sales service and free consultation
4. Customized requirements available
5. Technician guide at the site.
6. 24Hr online service
1.About us
Henan Institute Of Grain Machinery Manufacturing Co., Ltd. is established driven by the academy of Henan University of Technology. As a large joint-stock enterprise integrating technology, manufacture and sales, our company is specializing in the production of grain and oil machinery, agricultural and sideline machinery. Cooperating with Henan Mechanical Design and Research Institute and Henna University of Technology (Former Zhengzhou Grain College), Henan Institute Of Grain Machinery Manufacturing Co., Ltd. has carried out the research and application of oil machinery, food machinery, grain machinery, construction machinery, and feed machinery, etc.
we provide a turnkey project of our machinery,including special design,installation, commissioning and training workers.
2.Why choose us
---Advanced equipments,good quality
---Professional skills,all-related services
---High quality and efficiency technology
---Complete production line,quick delivery
---The biggest grain and oil machine manufacturer and exporter in China
---Exporting to more than 30 countries and regions
FAQ
1.Q :Are you the factory?
A:Yes, We are a professional manufacturer for several years.
2.Q: Where is your factory located?
A:Our factory is located in Jiaozuo, Henan Province.
3.Q:How about the INSTALLATION?
A:Engineers available to service machinery overseas,including installation,commission and training,etc.
4.Q:Can your company accept the customized product?
A:Yes,OEM &ODM service is available.We can make the products according to your size,design,color, It will be better if you can send us the product pictures for our reference.
5.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Any questions, please don't hesitate to contact us!
