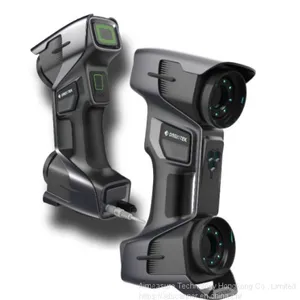

INNO-SCAN Handheld 3D Scanner
INNO-SCAN as one of Dreidtek's products, is characterized by mature technology, portable, easy to operate, high precision and scanning efficiency. Being extensively applied to varied industries, it offers quick 3D scanning and 3D surface inspection, and immediately delivers an inspection report which compares the deviation between CAD and parts. Both software and hardware takes into full account ergonomic design and can be easily applied in multiple complicated environments and working sites. During scanning, both the objects and scanner can move freely without affecting accuracy.
Benefits
Portable: It comes with a specially made suitcase which makes it easy to carry, protects instruments and ensures accuracy stable;

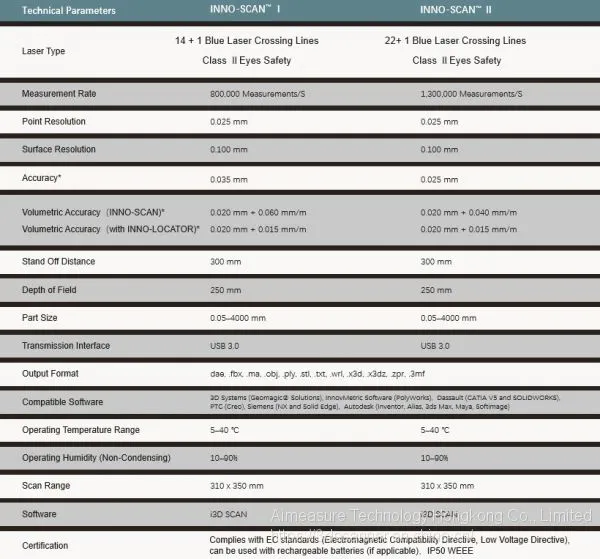

Accurate: Industrial CCD with high resolution makes measurement and inspection as accurate as up to 0.025mm, guarantee the clear details.
High speed: 23 crossed blue laser lines bring about quick scanning speed with a measurement rate of up to 1,300,000 measurements/s. Quick installation, Plug and Run. Smoothly scanning and real-time display.
Easy to use: Simple and convenient ergonomics interface allows you to easily operate it within 30 minutes. You will have nothing to worry with our cost-effective software and the hardware upgrade program.
Multi-functional: It can be used together with other instruments and software to generate more powerful functions so that it can be applied to more fields. It can be combined with robot arm to accomplish online automatic scanning and inspection, remaining the accuracy.

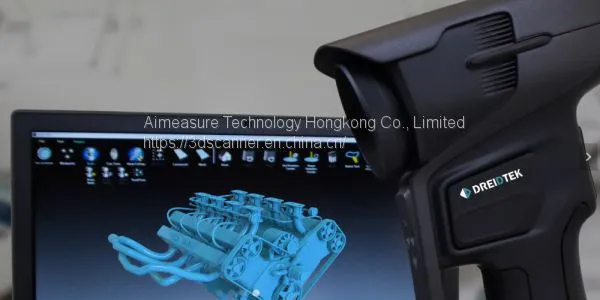

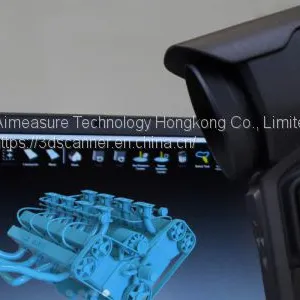

i3D Scan

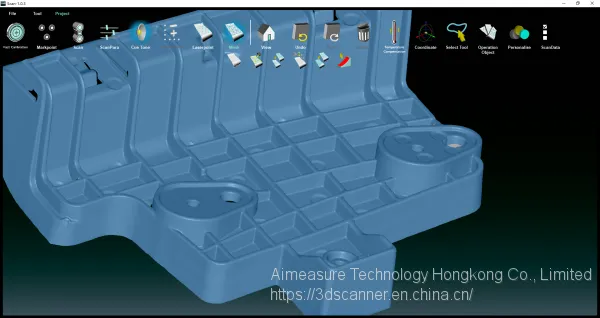

i3D-Scan software is equipped with INNO-SCAN hand-held 3D scanner. Its clear and easy to operate windows enable operators to easily complete the scanning measurement tasks.
- Two modules of scanning point cloud and physical triangle grid;
- Change the resolution at any time;
- Optimize targets point and mesh;
- Simple and convenient calibration;
- Multiple measurement and coordinate alignment;
- Multiple data ouput formats;
- Compatible with varied third-party software (industrial and non-industrial software);
- SDK interface software kit (custom-made).
Industrial Application:
- Product development and design;
- Reverse engineering;
- CAD to Parts comparision;
- Automatic online inspection;
- Assembly inspection;
- NDT testing;
- Crash and scratch inspection;
- Engineering services (design and measurement);
- 3D skill and knowledge training
Automobile / Aerospace / Shipbuilding / Transportation / Engineering Mechanics / Petroleum Machinery and Pipelines / Packaging
Non-industrial application:
- Education: Training, scientific research;
- Medical: Rehabilitation and correction, therapy analysis;

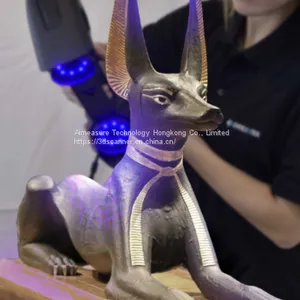

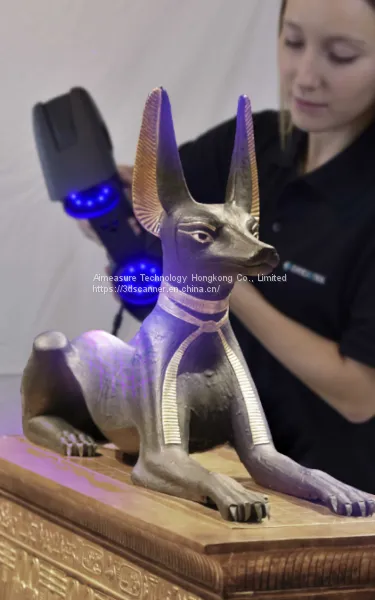

- Cultural relic and museum: Cultural relic repair, data documentation, archaeology and digital museum;
- Cultural and creation: Artistic modeling, sculpture, re-creation and 3D display;
- Home: Virtual showroom, carving processing, furniture and design processing;
- 3D printing: Model;
- Consumer goods: Product design, 3D human body measurement;
- Multimedia and Game: Props and special effects.
