Handheld 3D Scanner HSCAN771
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SCANTECH
Place of Origin:
China
Model Number:
HSCAN771
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IReal 2S Handheld Color 3D Scanner Body ScanUS$ 13500 - 15000MOQ: 1 Set -
TrackScan-P22 Tracking 3D Scanning SystemNegotiableMOQ: 1 Set
-
Handheld 3D Scanner INNOSCANNegotiableMOQ: 1 Set
-
Handheld 3D Scanner KSCAN20NegotiableMOQ: 1 Set
-
DreidTEK Desktop 3D Metal PrinterUS$ 200000 - 250000MOQ: 1 Set
Brand Name
SCANTECH
Place of Origin
China
Model Number
HSCAN771

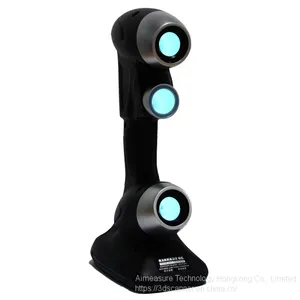

HSCAN771 Handheld 3D Scanner

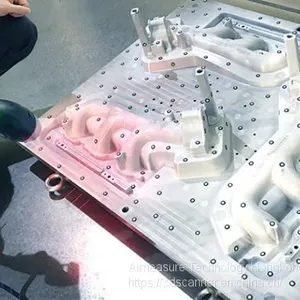

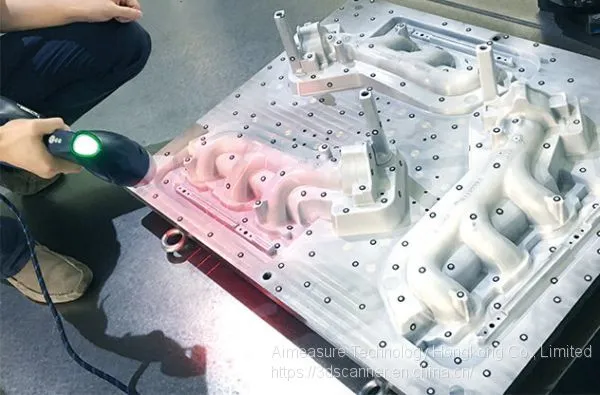

HSCAN is metrology 3D scanner, adopts multiple beam lasers to obtain 3D point cloud from object surface and friendly-use to operator. It can work with photogrammetry system (MSCAN) while scanning large volume to improve volumetric accuracy.

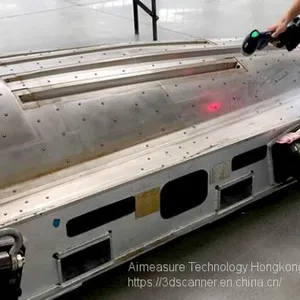

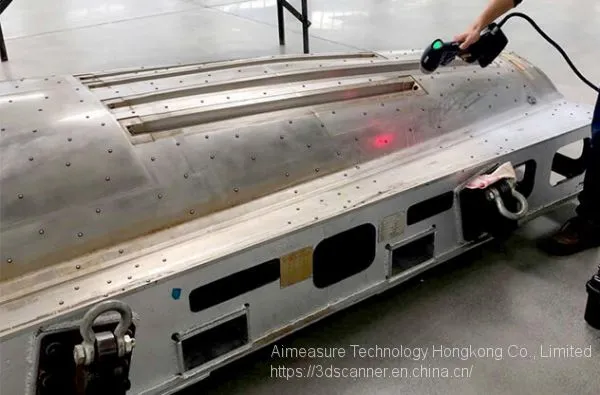

The scanner can be conveniently carried to workshop and stable in different environment to perform high accurate 3D scanning.
Tech Specs
| Type | HSCAN771 |
|---|---|
| Weight | 0.9kg |
| Dimension | 315*165*105mm |
| Laser source | 7 red laser crosses (+1 extra red laser) |
| Scan deep hole | support |
| Hyperfine scan | support |
| Measurement rate | 480,000 measures/s |
| Scan area | 275mm×250mm |
| Laser class | CLASS Ⅱ（eye safe） |
| Resolution | 0.05mm |
| Accuracy | Up to 0.03mm |
| Volumetric accuracy | 0.02mm+0.06mm/m |
| Volumetric accuracy (with MSCAN) |
0.02mm+0.025mm/m |
| Stand-off distance | 300mm |
| Depth of field | 250mm |
| Output format | . ply、.xyz、.dae、.fbx、.ma、.obj、.asc、.stl or customized |
| Work temperature | -10~40℃ |
| Interface mode | Gigabit Lan |
| Rapid calibration | Complete calibration within 60s |
| PC requirements | CPU：i7-6820HQ RAM：32G，2133MHzDDR4 GPU：NVIDIA Quadro M1000M 2GB GDDR5 Operating system：Windows 7-64 bit, Windows 8 |
| Patents | CN204902790U, CN206905709U, CN107202554, CN204902785U, CN106403845, WO2018049843, CN106500627, WO2018072434, CN106500628, WO2018072433, CN206132003U, CN104501740, US10309770B2 |
