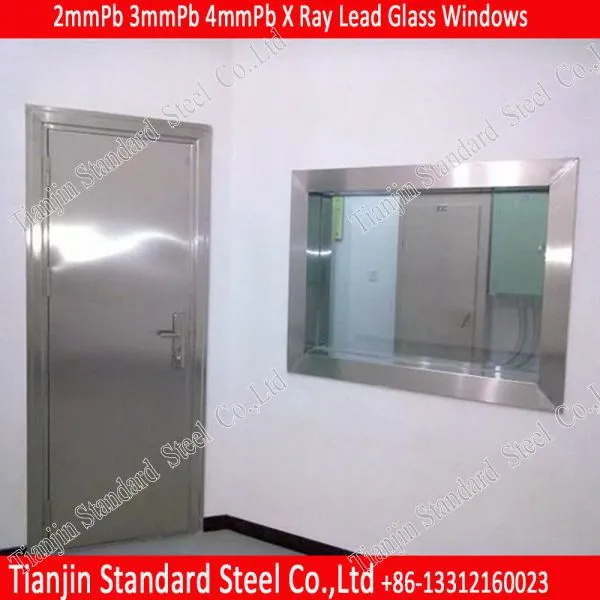

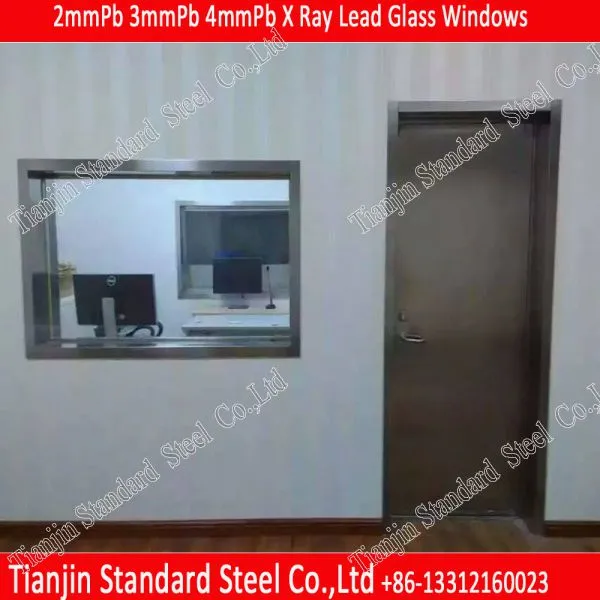

Nuclear Station 3mmPb 4mmPb 5mmPB Lead Glass Observation Window
Anti- radiation ZF2 ZF3 ZF6 ZF7 Lead glass windows are an important feature for any scanning room , safely allowing the operator to view their patient in a protective environment.
Thickness : 8mm / 10mm / 12mm / 13mm / 15mm / 18mm / 20mm / 22mm / 25mm / 30mm
Pb Equivalent : 0.22mmPb / 0.24mmPb / 0.26mmPb / 0.32mm Pb
Size : 300 x 300mm , 400x 400mm , 300 x 400mm , 500 x 600mm , 600 x 900mm , 900 x 1200mm ,
Depending on your requirements, lead glass windows can be provided at any size , and thelead material used in the glass can vary depending on the strength of protection needed.
1) Specification of X-ray Lead Glass
Model |
Refractive index |
Density(G/cm3) |
Lead Equivalent |
Sio2 (%) |
Pb3O4 (%) |
Others (%) |
Transparency |
ZF2 |
1.6725 |
4.2 |
0.21 |
39.1 |
55.41 |
5.49 |
90% |
ZF3 |
1.7172 |
4.46 |
0.24 |
33.88 |
61.05 |
5.07 |
85% |
ZF6 |
1.755 |
4.76 |
0.27 |
30.96 |
65.06 |
3.98 |
75% |
ZF7 |
1.06 |
5.2 |
0.33 |
27.27 |
70.93 |
1.8 |
70% |
2) Size of Lead glass Windows
| Dimension of Lead Glass Windows | |||||
| Length x Width x Thickness ( MM ) | |||||
| 1 | 1800*1200*20 | 13 | 1200*900*18 | 25 | 600*800*18 |
| 2 | 1800*1200*15 | 14 | 1200*900*15 | 26 | 600*800*15 |
| 3 | 1800*1200*12 | 15 | 1200*900*12 | 27 | 600*800*12 |
| 4 | 1500*1000*20 | 16 | 1200*800*20 | 28 | 400*600*20 |
| 5 | 1500*1000*18 | 17 | 1200*800*18 | 29 | 400*600*18 |
| 6 | 1500*1000*15 | 18 | 1200*800*15 | 30 | 400*600*15 |
| 7 | 1500*1000*12 | 19 | 1200*800*12 | 31 | 400*600*12 |
| 8 | 1500*900*20 | 20 | 1000*800*20 | 32 | 300*400*20 |
| 9 | 1500*900*18 | 21 | 1000*800*18 | 33 | 300*400*18 |
| 10 | 1500*900*15 | 22 | 1000*800*15 | 34 | 300*400*15 |
| 11 | 1500*900*12 | 23 | 1000*80*12 | 35 | 300*400*12 |
| 12 | 1200*900*20 | 24 | 600*800*20 | 36 | 200*300*12 |
Above size is always available in our stock , if need other sizes , please contact us freely , we can produce as per your requirement .
3) Used for Radiation Shield
·X-ray shielding in hospitals
··X-ray rooms MRI scanning
··observations windows
··door glazing
··nuclear medicine application
·· special mitre joint and lamination with float glass allow extended window sizes, creating better observation environments
·multiple glazing units providing shaped observation solutions
2. Terms of medical X ray lead glass windows:
Payment: TT
Delivery time: Abt 3 days after your payment
Packing: Foams and wooden case
Shipping: Tianjin Xingang port.
We are known for the superior production of standard medical X ray lead glass window;
