Radiation Shielding Window For X-ray / CT Scan / Fluoroscopy / and P.E.T. Imaging.

Radiation Shielding Window For X-ray / CT Scan / Fluoroscopy / and P.E.T. Imaging. thumbnail-1
Radiation Shielding Window For X-ray / CT Scan / Fluoroscopy / and P.E.T. Imaging. thumbnail-2
Radiation Shielding Window For X-ray / CT Scan / Fluoroscopy / and P.E.T. Imaging. thumbnail-3
Radiation Shielding Window For X-ray / CT Scan / Fluoroscopy / and P.E.T. Imaging. thumbnail-4
Radiation Shielding Window For X-ray / CT Scan / Fluoroscopy / and P.E.T. Imaging. thumbnail-5
Radiation Shielding Window For X-ray / CT Scan / Fluoroscopy / and P.E.T. Imaging. photo-1
Radiation Shielding Window For X-ray / CT Scan / Fluoroscopy / and P.E.T. Imaging. photo-2
Radiation Shielding Window For X-ray / CT Scan / Fluoroscopy / and P.E.T. Imaging. photo-3
Radiation Shielding Window For X-ray / CT Scan / Fluoroscopy / and P.E.T. Imaging. photo-4
Radiation Shielding Window For X-ray / CT Scan / Fluoroscopy / and P.E.T. Imaging. photo-5
US$ 199 - 999 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Standard Metal
Place of Origin:
China
Model Number:
2mmPb / 3mmPb / 4mmPb / 5mmPb
Contact Supplier Request Quote Chat Now
Shandong Standard Metal Products CO.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port / Qingdao Port / Shanghai Port
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Standard Metal
Place of Origin China
Model Number 2mmPb / 3mmPb / 4mmPb / 5mmPb
Properties Medical-Ray Protective Products

Radiation Shielding Window For x-ray / CT Scan / Fluoroscopy  / and P.E.T. imaging.

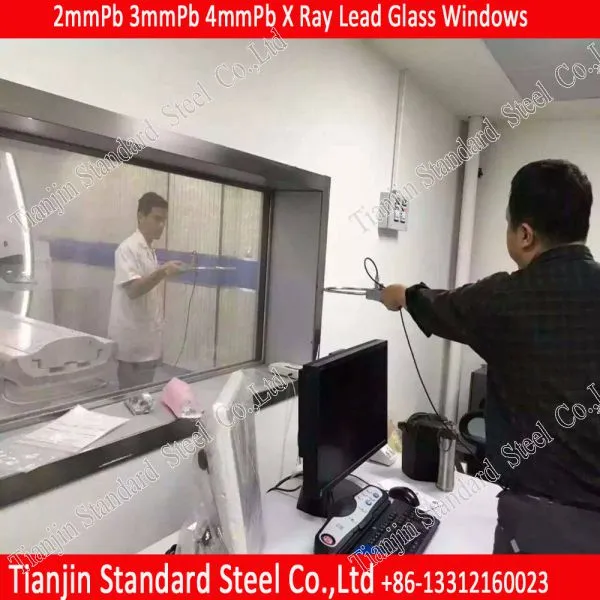

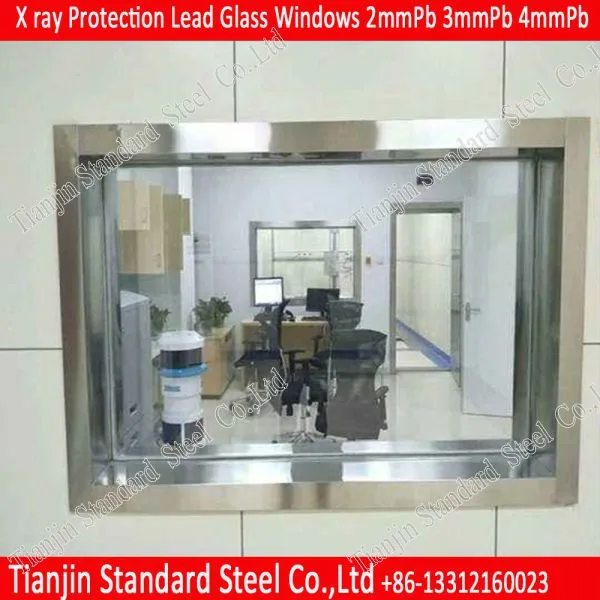

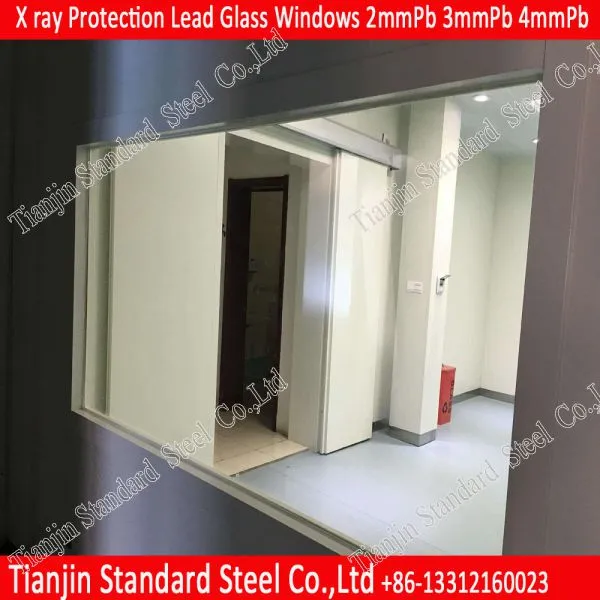

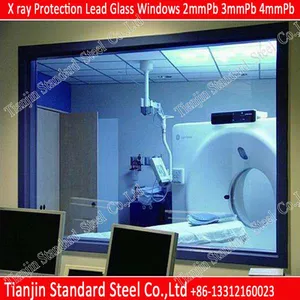

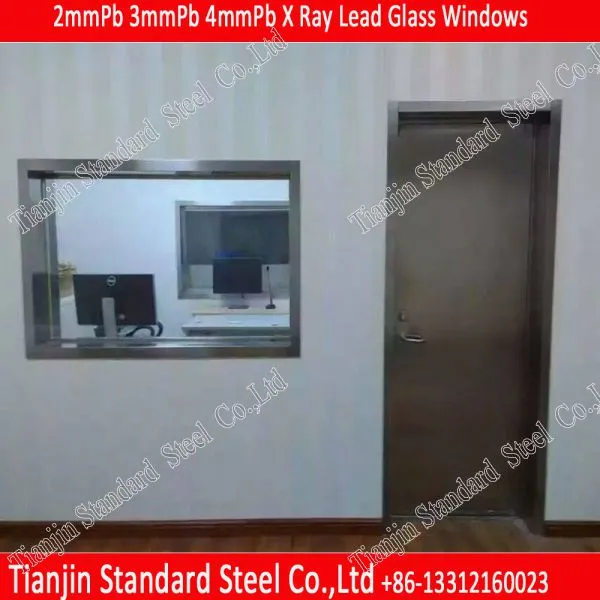

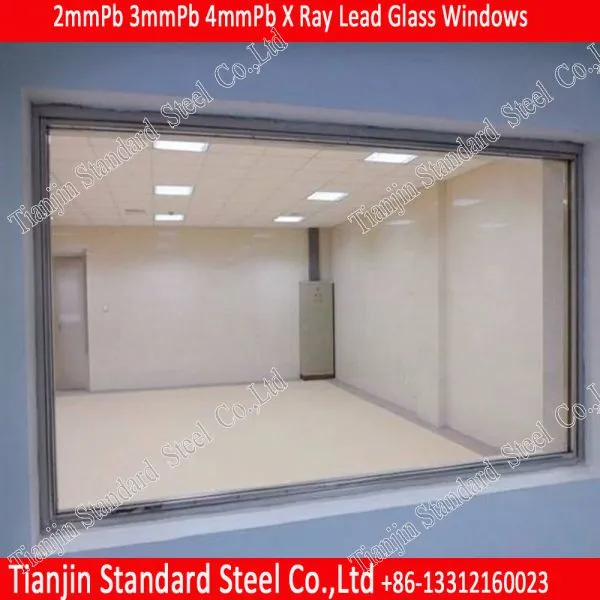

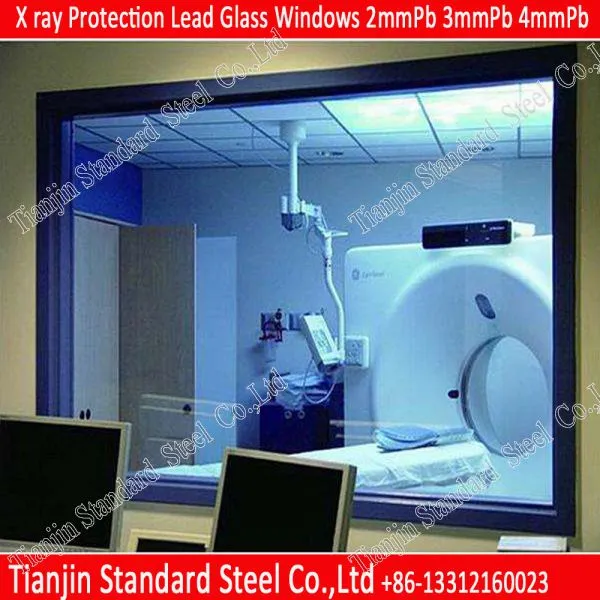

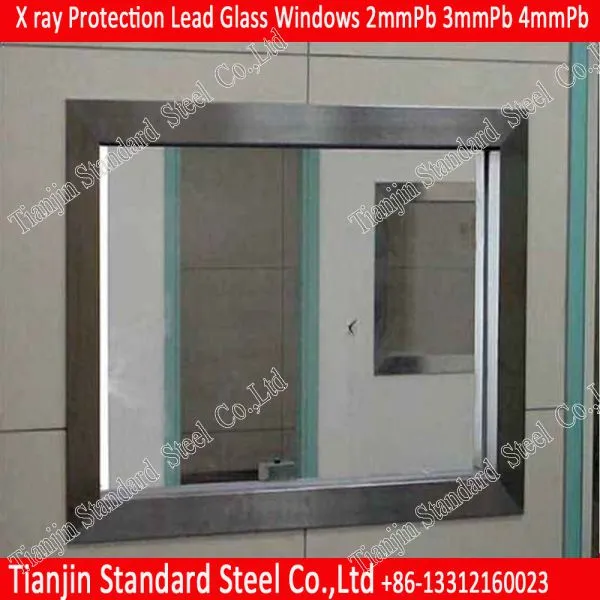

Radiation Shielding ZF2 ZF3 ZF6 ZF7 Lead glass windows  are  an  important  feature  for  any  scanning room ,  safely  allowing  the  operator  to view  their  patient  in  a  protective  environment.
Thickness : 8mm / 10mm / 12mm /  13mm /  15mm / 18mm / 20mm / 22mm / 25mm / 30mm

Pb Equivalent : 0.22mmPb / 0.24mmPb / 0.26mmPb / 0.32mm Pb

Size : 300 x 300mm , 400x 400mm , 300 x 400mm , 500 x 600mm , 600 x 900mm , 900 x 1200mm ,

Frame : Stainless Steel and Aluminum
Depending on your requirements, lead glass windows can be provided at any size ,  and  thelead material used in the glass can vary depending on the strength of protection needed.

1) Specification of X-ray Lead Glass

Model

Refractive  index

Density(G/cm3)

Lead Equivalent

Sio2 (%)

Pb3O4 (%)

Others (%)

Transparency

ZF2

1.6725

4.2

0.21

39.1

55.41

5.49

90%

ZF3

1.7172

4.46

0.24

33.88

61.05

5.07

85%

ZF6

1.755

4.76

0.27

30.96

65.06

3.98

75%

ZF7

1.06

5.2

0.33

27.27

70.93

1.8

70%

2) Size of Lead glass Windows

Dimension of  Lead  Glass  Windows
Length x Width x Thickness ( MM )
1 1800*1200*20 13 1200*900*18 25 600*800*18
2 1800*1200*15 14 1200*900*15 26 600*800*15
3 1800*1200*12 15 1200*900*12 27 600*800*12
4 1500*1000*20 16 1200*800*20 28 400*600*20
5 1500*1000*18 17 1200*800*18 29 400*600*18
6 1500*1000*15 18 1200*800*15 30 400*600*15
7 1500*1000*12 19 1200*800*12 31 400*600*12
8 1500*900*20 20 1000*800*20 32 300*400*20
9 1500*900*18 21 1000*800*18 33 300*400*18
10 1500*900*15 22 1000*800*15 34 300*400*15
11 1500*900*12 23 1000*80*12 35 300*400*12
12 1200*900*20 24 600*800*20 36 200*300*12

Above size is always available in our stock , if need other sizes , please contact us freely , we can produce as per your requirement .
3) Used for Radiation Shield

·X-ray shielding in hospitals

··X-ray rooms MRI scanning

··observations windows

··door glazing

··nuclear medicine application

·· special mitre joint and lamination with float glass allow extended window sizes, creating better observation environments

·multiple glazing units providing shaped observation solutions


2. Terms of medical X ray lead glass windows:

Payment: TT
Delivery time: Abt 3 days after your payment
Packing: Foams and wooden case
Shipping: Tianjin Xingang port.

8mm 10mm 12mm 18mm 20mm 22mm Pb X-ray Radiation Safety Protection Lead Glass
8mm 10mm 12mm 18mm 20mm 22mm Pb X-ray Radiation Safety Protection Lead Glass

We are known for the superior production of standard medical X ray lead glass window;


Product Tags: Lead Glass Window , 15mm Lead Glass Window , 20mm Lead Glass Window , Lead Glass Observation Window , 4mmpb Lead Glass Window , 20mm lead glass
