1. Overview
n HUR4031XAC is designed as HGU (Home Gateway Unit) in deferent FTTH solutions by HDV, The carrier-class FTTH application provides data service access USB storage and VOIP service.
n HUR4031XAC is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT.
n HUR4031XAC adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0 and GPON Standard of ITU-TG.984.X
n HUR4031XAC is designed by Realtek chipset 9607C
2. Functional Feature
n Support EPON/GPON mode and switch mode automatically
n Support ONU auto-discovery/Link detection/remote upgrade of software
n WAN connections support Route and Bridge mode
n Route mode supports PPPoE/DHCP/ static IP
n Support QoS and DBA
n Support port Isolation and port vlan configuration
n Support Firewall function and IGMP snooping multicast feature
n Support LAN IP and DHCP Server configuration
n Support Port Forwarding and Loop-Detect
n Support TR069 remote configuration and maintenance
n Support WIFI 2.4G and WIFI 5G
n Support MIMO, 2T2R, 5dBi external antenna, rate up to 300Mbps 11n, 867Mbps 11ac
n Specialized design for system breakdown prevention to maintain stable system
3. Hardware Specification
Technical item |
Details |
PON Interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) |
Receiving sensitivity: ≤-27dBm | |
Transmitting optical power: 0~+4dBm | |
Transmission distance: 20KM | |
Wavelength |
TX: 1310nm, RX: 1490nm |
Optical Interface |
SC/UPC Connector |
LAN Interface |
1 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
Pots |
Sip voip service |
LED |
9 LED, For Status of PWR,LOS,PON,LAN1-4,2.4G,5.8G |
Push-Button |
2 ,For Function of Reset and WPS |
WIFI interface |
Compliant with IEEE802.11b/g/n/ac |
2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz | |
Support MIMO, 2T2R,5dBi external antenna, rate up to 687Mbps | |
Support: multiple SSID | |
TX power: 11n--22dBm/11ac--24dBm | |
Operating Condition |
Temperature: 0℃~+50℃ |
Humidity: 10%~90%(non-condensing) | |
Storing Condition |
Temperature: -30℃~+60℃ |
Humidity: 10%~90%(non-condensing) | |
Power Supply |
DC 12V/1A |
Power Consumption |
≤6W |
Dimension |
155mm×92mm×34mm(L×W×H) |
Net Weight |
0.24Kg |

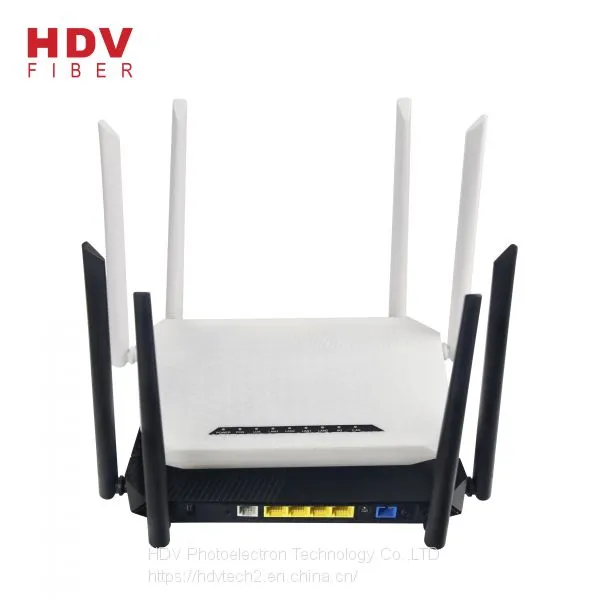

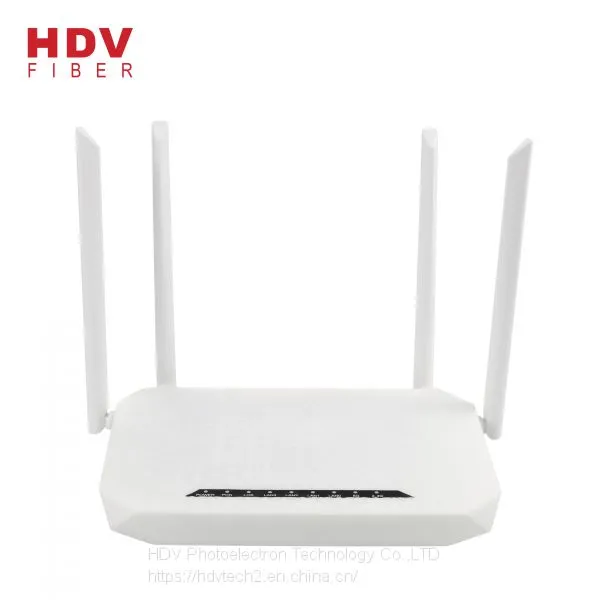

4. Panel lights Introduction
Pilot led |
Status |
Description |
PWR |
On |
The device is powered up. |
Off |
The device is powered down. |
|
LOS |
Blink |
The device doses not receive optical signals. |
Off |
The device has received optical signal. |
|
PON |
On |
The device has registered to the PON system. |
Blink |
The device is registering the PON system. |
|
Off |
The device registration is incorrect. |
|
LAN1-4 |
On |
Port (LAN1-4) is connected properly (LINK). |
Blink |
Port (LAN1-4) is sending or/and receiving data (ACT). |
|
Off |
Port (LAN1-4) connection exception or not connected. |
|
2.4G |
On |
2.4G WIFI interface up |
Blink |
2.4G WIFI is sending or/and receiving data (ACT). |
|
Off |
2.4G WIFI interface down |
|
5G |
On |
5G WIFI interface up |
Blink |
5G WIFI is sending or/and receiving data (ACT). |
|
Off |
5G WIFI interface down |
5. Application
n Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)
n Typical Business:INTERNET,AC WIFI,VoIP etc
Figure: HUR4031XAC Application Diagram
6. Ordering information
Product Name |
Product Model |
Descriptions |
BOB Type XPON ONU |
4GE+AC+VOIP |
1x10/100/1000Mbps Ethernet , 1 SC/UPC Connector, Plastic Casing, External power supply adapter ,AC WIFI, pots port |
