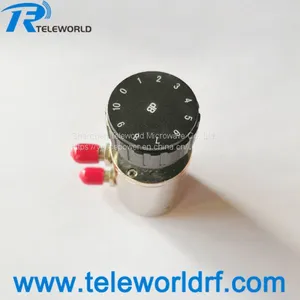

2W SMA Rotary Variable Attenuator 3GHz 6GHz 1dB 10dB 60dB 90dB
US$ 85 - 85
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2009
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Adjustable Attenuator 5W N Step Attenuator 90db Male to FemaleUS$ 85 - 85MOQ: 10 Pieces -
2W SMA Attenuator 3dB,6db, 10db,15db,20db,30db 6GHz 8Ghz 10GHz 12Ghz 18GHz 26.5GHz 50ohmUS$ 6 - 6MOQ: 10 Pieces
-
2W RF Dummy Load Termination 6GHzUS$ 5 - 5MOQ: 50 Pieces
-
200W N /DIN/4.3-10 High Voltage DC Block 3000V 3GHz 50OhmUS$ 70 - 70MOQ: 10 Pieces
-
2W Sma dc Block dc Blocking 50V 6ghzUS$ 10 - 10MOQ: 10 Pieces
Step attenuators are very much similar to fixed attenuators. The only difference is that one can select an attenuation value in a step attenuator by using digital control or manually by push-buttons or by a rotary switch.
Variable attenuators are used in laboratories, when it is necessary to obtain small value of voltage or current for testing purposes.
| Model No. | Frequency(GHz) | Attenuation Step Size |
Max VSWR | Insertion loss(dB) | Attenuation Accuracy(dB) |
| TWVASm-1-0.1-3G | DC-3 | 0-1dB in 0.1dB steps | 1.3 | ≤0.5 | ±0.3 |
| TWVASm-1-0.1-6G | DC-6 | 1.4 | ≤1.0 | ±0.3 | |
| TWVASm-10-1-3G | DC-3 | 0-10dB in 1dB steps | 1.3 | ≤0.5 | ±0.5 |
| TWVASm-10-1-6G | DC-6 | 1.4 | ≤1.0 | ±0.5 | |
| TWVASm-60-1-3G | DC-3 | 0-60dB in 1dB steps | 1.3 | ≤0.5 | ±0.5(±0.8 or ±3% (≥50dB) |
| TWVASm-60-1-6G | DC-6 | 1.4 | ≤1.0 | ||
| TWVASm-90-10-3G | DC-3 | 0-90dB in 10dB 10dB steps | 1.3 | ≤0.5 | ±0.5( |
| ±3.5%(≥50dB) |
