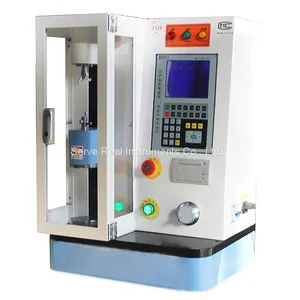

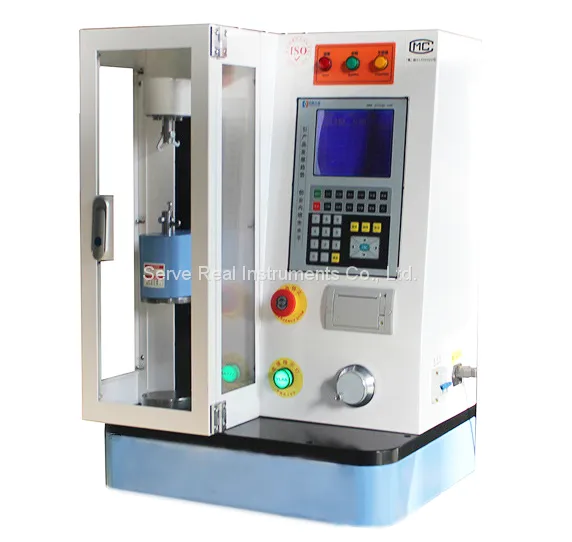

Help Center500N Electronic Spring Tester JIS B7738-2001
Related Products
-
5KN Electronic Spring Tester JIS B7738 Spring Testing MachineUS$ 3000 - 4000MOQ: 1 Set -
1000kn/2000kn Digital Compression Testing MachineUS$ 2000 - 2500MOQ: 1 Set
-
Digital Display Hydraulic Universal Testing Machine 300KN 600KN 1000KNUS$ 2000 - 2500MOQ: 1 Set
-
Computer Display Hydraulic Universal Testing Machine 300KN 600KN 1000KNUS$ 10000 - 15000MOQ: 1 Set
-
Servo Hydraulic Universal Testing Machine 300KN 600KN 1000KNUS$ 12000 - 17000MOQ: 1 Set
Standards: JB/T 7796,JIS B7738-2001,JJF1134-2005
It’s a precision spring testing equipment, specially suitable for testing of precise spring, shrapnel, and elastomer in laboratory.
Technical specifications
General accuracy and repeatability: ±0.5%
Loading range: 0-500N
load min. Resolution: 0.001N
Load unit: N,KN, gf, kgf,lbf, kip
Load min resolution: 0.001mm
Data acquisition frequency: 1000Hz
Handle wheel adjustment: 0.001mm/step(adjustable)
Displacement measure error: better than ±(50+0.151）um
Measure range: 0.4-100%FS
Test space: 190mm
Plate size: 30/60mm
Test rate: 0.01-500mm/min
Test space: 190mm
Machine overall size: 480*380*655mm
Net weight: 60kg
Power supply: AC 220V±10%/50HZ
Features
Large screen operation interface
Nice appearance
Highly automated, higher test efficiency
Electronic handle wheel loading, enable min 1microstrain deformation movement
Touch screen operation
Self-adapted test curve, the data change process is reviewed
Detailed test data for analysis, including test point, result, allowed upper and lower limit, sectional stiffness, average stiffness, average flexibility, free height
Built-in 20pcs sample type
Test data automatic saving, can store up to 100 units data, data can be reviewed, printed, output.
