Order clarification:
The price for the battery tester above only for reference, pls contact me.
About the measurement:According to the different range of voltage and current for each type batteries, pls contact me.
About the clamps:Based on the type of the batteries

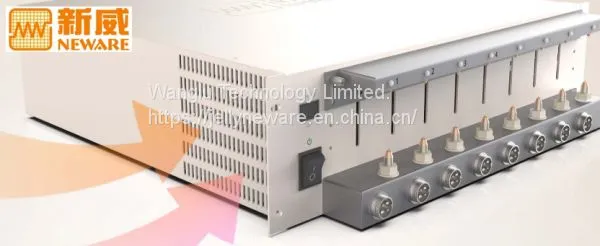

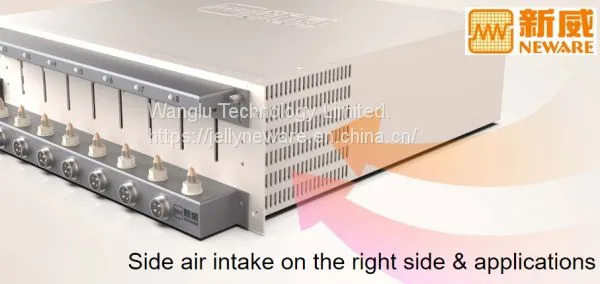

BTS-5V6A is an eight-channel battery analyzer to analyze small coin cells and cylindrical batteries from 30 mA to 6A, up to 5V.
Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.
This system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing, etc.
Technical Specification:
BTS4000-5V6A Battery testing system | |||||||||||
Model: |
BTS4000- |
5 |
V |
6 |
A |
Battery Testing System |
SN: |
CT-4008T |
-5V6A |
-S1/164 |
|
Items |
Values |
||||||||||
Input AC |
AC 220V/110V ±10% / 50Hz |
||||||||||
Input power |
425 W |
||||||||||
Resolution |
AD:16bit; DA:16bit |
||||||||||
Input impedance |
≥1MΩ |
||||||||||
|
Voltage |
CV output range |
25mV~5V |
|||||||||
Min discharge voltage |
1V for universal holder,1.5V for 2m cable |
||||||||||
Accuracy |
± 0.05% FS |
||||||||||
Stability |
± 0.05% FS |
||||||||||
|
Current |
Output range/channel |
Range1: 0.5mA-0.1A; Range2: 0.1A-3A; Range3: 3A-6A |
|||||||||
Accuracy |
± 0.05% FS |
||||||||||
CV cut-off current |
Range1: 0.2mA; Range2: 6mA; Range3: 12mA |
||||||||||
Stability |
± 0.05% FS |
||||||||||
|
Power |
Output power/channel |
30 |
W |
||||||||
Stability |
± 0.1% FS |
||||||||||
|
Time |
Current response time |
1ms (10% FS~90% FS) |
|||||||||
Working step time |
≤(365*24)h/step Timeformat-00:00:00.000(h, m, s, ms) |
||||||||||
|
Data record |
Data record conditions
|
Min data record interval:100ms |
|||||||||
Min voltage change: 10mV |
|||||||||||
Min current change: 0.2mA; 6mA; 12mA |
|||||||||||
Frequency |
10Hz |
||||||||||
|
Charge |
Charge modes |
CC, CV, CCCV, CP |
|||||||||
Cut-off condition |
Voltage, Current, Time, Capacity, Energy, -△V |
||||||||||
|
Discharge |
Discharge modes |
CC, CV, CCCV, CP, CR |
|||||||||
Cut-off condition |
Voltage, Current, Time, Capacity, Energy |
||||||||||
Warraty: 1 year
Delivery: 7days after deposit
