Pneumatic mechanical load tester / Solar panel force deformation testing machine / Pressure intensity testing equipment
Standard
According to IEC 61215, UL1703, IEC62782 standard requirement
Purpose
This test is to determine the ability of the module to withstand wind , snow , static or ice loads
Technical specifications
1,The machine table appearance dimension:L 280 × D 180 × H 195 cm
2,Test Positive load 5400Pa, reverse load :2400Pa (Pressure can setting)
3,Cycle times :free setting
4,Dynamic load test frequency:7s±3s
5,Dynamic load:1000Pa,1000tims
6,Pressure control accurate:5%
7,Pneumatic and force value feedback ways :low friction force cylinder,tensile pressure
sensor(accurate 0.1N)
8,Aluminum profile structure feature:platform and support frame aren’t deformation under the suffer force situation
9,The maximum test dimension:2000mm×1000mm (can according to customer’s requirement to customized)
10,Customization test platform fixture, according to determinand install ways to do the adjust
11,Current continuity system :DC power, DC 150V/2A, real-time monitor module inner current continuity

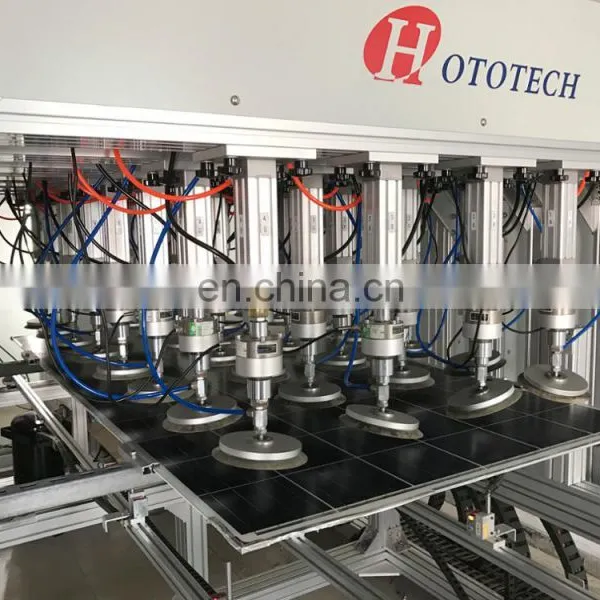

12,Cylinder: 4 groups , in total 8 pieces
Single the maximum output > 200 kg
Telescopic stroke:125mm
13,Sucker:8 groups , in total 32 pieces
Sucker diameter:120mm
Sucker(with cylinder) space horizontal and vertical≤200mm
Sucker can rotation angle ≥15°
14,Operate system
14.1,Computer control software research and development by HOTOTECH , easy operate and stability
14.2,Software with Chinese and English language , can change each other

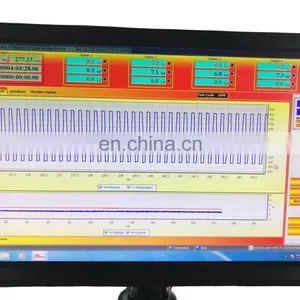

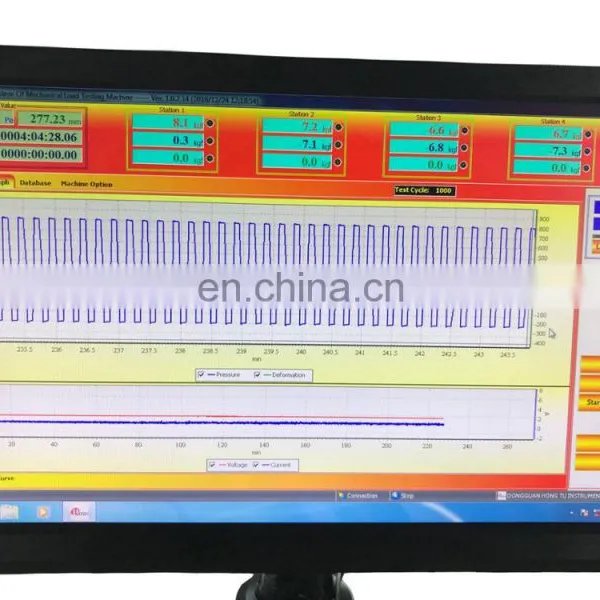

14.3,real-time show pressure, deformation, test time, cycle times , current continuity
14.4,Real-time draw and show pressure and deformation value

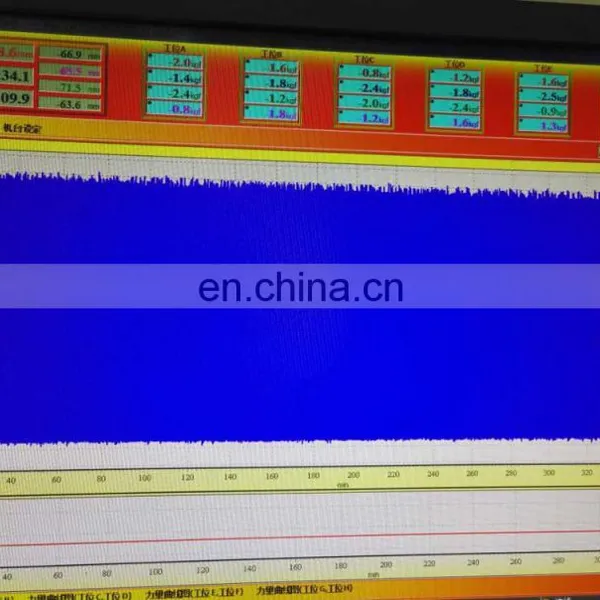

14.5,Real-time show every cylinder force value and draw force value curve
14.6,Testing data real-time save, inquiry and print
14.7,Testing data export is World, Excel, PDF , JPG etc format
14.8,Fault alarm function

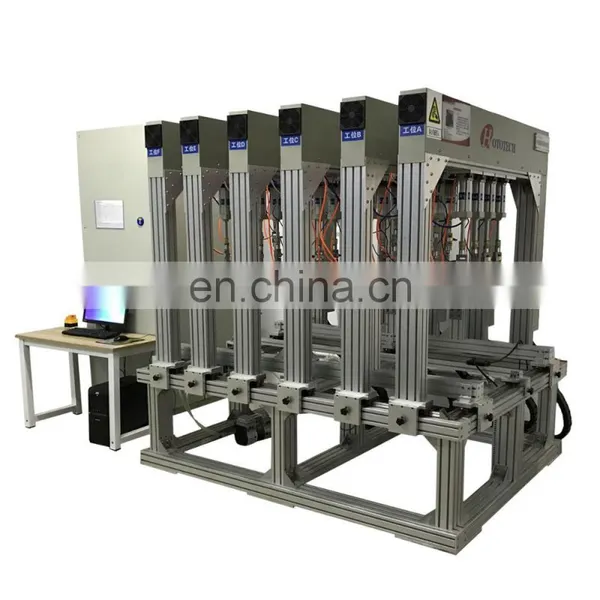

Product image show
