Introduction&Application:

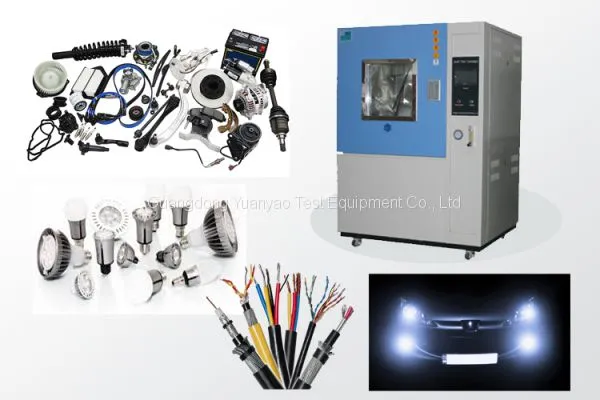

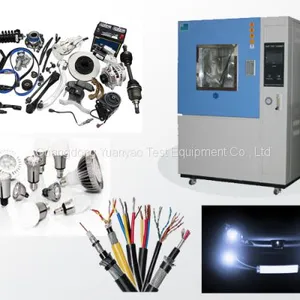

IP grade dust and sand proof experimental test instruments simulates the environment of dust filled atmospher to test products sealing
and dust proof test properties. It is used to auto parts, electroncs, electrics and other industries.
Feature:
1 Test products dust resistance and sealing, widely applied to electronics, electric, auto parts, etc.
2 Provide a ready-made solution to common dust tests for automotive and electronic industry requirements.
3 Suspension dust-proof test.
4 Using large transparent acrylic window, convenient and direct observation internal test condition.
5 Dust data conform to JIS-DD0207-F2 standard.
6 Digital setting, easy operation and maintenance.
7 Best after sales service: One year free parts maintenance.
8 Meet international test standards.
9 Customization is available & welcomed.
Technical parameters:
Please see the label.
Except Floating dust proof test chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester,
Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber,
Burn-in test equipment, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
| Specification | ||||||
| Model | YDT-1000-F | YDT-1000-C(IEC-529) | ||||
| Internal Dim.WHD(mm) | 1000×1000×1000 | 1000×1000×1000 | ||||
| External Dim.WHD(mm) | 1350×1950×1350 | 1350×1950×1350 | ||||
| Testing Type | F1 | F2 | F3 | IEC60529 | ||
| C1 | C2 | |||||
| Concentration of dust (mg/m3) | ≥60000 | ≥3000 | ≥100 | ≥5000 | ≥100 | |
| Testing Temp. | 20ºC±15ºC | |||||
| Humidity Range | 45%RH--85%RH | |||||
| Flow rate of test (m/s) | No Iimited | 5m/s | 10m/s | |||
| Testing Time | Swiring time | 5s/other | No |
|||
| Rest time | 15Mins/other | |||||
| Total time | 5H | 8H | 8H | 2H | 6H | |
| Material | Exterior | SUS#304+Powder Coated | ||||
| Interior | SUS#304 | |||||
| Other Components | Chamber lamp,Wiper,Casters with adjusters. | |||||
| Power Source[K.W] | AC 1Ψ 220V 60/50Hz 4KW | |||||
| Comply with CHS D3069, IE529. | ||||||
