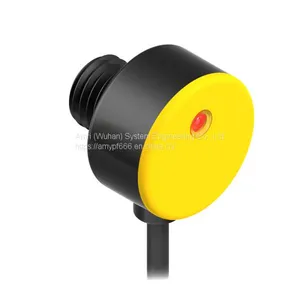

Thermoplastic Opposed Mode sensor T86EVQ
T8 Series: Opposed Mode
Range: 2000 mm; Input: 10-30V dc
Output: Not Applicable - No Outputs
Threaded 3-Pin Pico-Style Pigtail QD Connector
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Emitter
Housing Style Barrel
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 2000
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M8 (Pico)
Sensing Beam Visible Red LED
Operation N/A
Min Op. Temp. (°C) -20
Max Op. Temp. (°C) 55
Output response time (ms) 1 ON/0.5 OFF
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 100
Number of Pins 3
IP Rating IP67
NEMA Rating NEMA 6
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) 8
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
DeviceNet No
