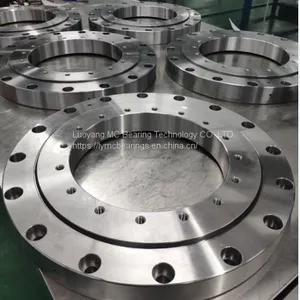

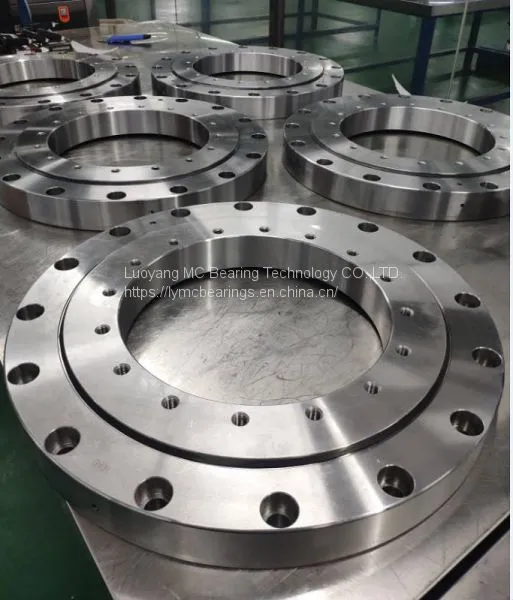

Precision Roller Slewing Rings Made in China RU178/ RU178G With Size 115X240X28mm
US$ 20 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
LYMC
Place of Origin:
China
Model Number:
RU 178/ RU 178G
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai,Qingdao
Delivery Detail:
3 days
Related Products
-
Precision Roller Slewing Rings Made in China RU66/ CRBF3515AT With Size 35X95X15mmUS$ 20 - 50MOQ: 1 Piece -
Precision Roller Slewing Rings Made in China XU120222 With Size 140X300X36mmUS$ 20 - 50MOQ: 1 Piece
-
Precision Roller Slewing Rings Made in China XU080120 With Size 69X170X30mmUS$ 20 - 50MOQ: 1 Piece
-
Precision Roller Slewing Rings Made in China XU080149 With Size 101.6X196.85X22.22mmUS$ 20 - 50MOQ: 1 Piece
-
Precision Roller Slewing Rings Made in China XU160405 With Size 336X474X46mmUS$ 20 - 50MOQ: 1 Piece
Brand Name
LYMC
Place of Origin
China
Model Number
RU 178/ RU 178G
Number of Row
Single Row
Seals Type
open
Precision Rating
P4,P5,P2
Outside Diameter
115, 240
Bore Size
,
Crossed Roller Bearing RU178/ RU178G with size 115X240X28mm information:
The outer ring diameter:240mm
The inner ring diameter:115mm
The thickness diameter:28mm
dynamic load rating C (Kn):80.3
Static load ratingCo(Kn):135
Weight:6.8kg
Seals type:double seals
Precision rating:P2 P4 P5
Material:Steel GCr15
Package:wooden box
Delivery Time: 3 days in stock
RU/XSU/XU CROSS ROLLER BEARING SERIES FEATURE:
Since the mounting holes are provided, this model does not require a presser flange or housing .In addition because it has an integrated inner/outer ring structure and is equipped with washers ,its performance is minimally affected by the mounting procedure,ensuring stable rotation accuracy and torque.This model can be used for both inner-ring rotation and outer-ring rotation.
High quality cross roller bearing
With the cross roller bearing ,cylindrical roller are arranged crosswise ,with each roller perpendicular to the adjacent roller ,in a 90°groove ,separated from each other by a spacer retainer .this design allows just one bearing to receive loads in all directions including ,radial,axial,and moment loads. Since the cross-roller ring achieves high rigidity and the precision can reach up P5 P4 P2,despite the minimum possible dimensions of the inner and outer rings,it is optimal for applications such as joints and swiveling units of industrial robots,swiveling table of machining centers .precision rotary tables,medical equipment,measuring instruments and IC manufacturing machines.
If you interesting the type cross roller slewing bearing RU178/ RU178G with size 115X240X28mm,welcome inquiry me freely.
