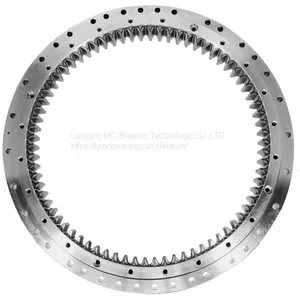

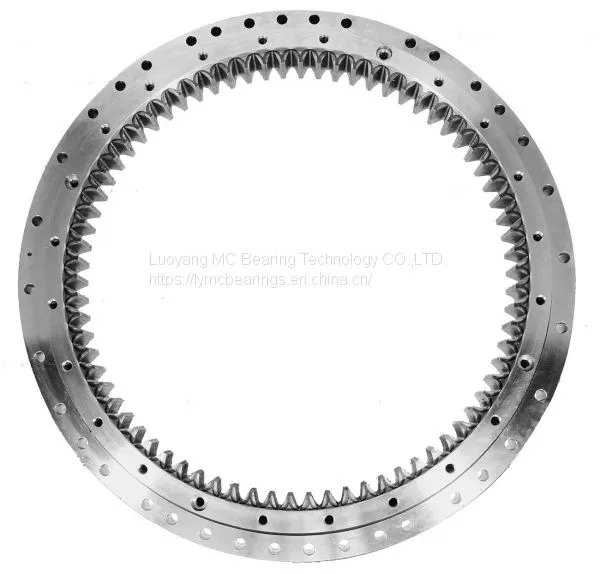

023.30.900 Slewing Ring/Slewing Bearing/Turnable Ring with internal gear 1042*758*124mm information:
The outer ring diameter:1042mm
The inner ring diameter:758mm
The thickness diameter:124mm
Static load ratingCo(Kn):258
Weight:250kg
Cage Material:Nylon/ Steel /Copper
Precision rating:P0 P2 P4
Material:50Mn/42CrMo/42CrMo4V /Customized
Package:Wooden box
Delivery Time: 3 days in stock
Slewing Bearing Type:
Single row four point contact ball slewing bearing
Single row crossed cylindrical roller slewing bearings
Double row Roller/ball combination slewing bearing
Three-Row Roller Slew Ring Bearing
023.30.900 Slewing Ring/Slewing Bearing/Turnable Ring with internal gear 1042*758*124mm
Four-point contact ball slewing turntable bearings consist of two ring seats. Compact structure, light weight, steel ball and arc track contact at four points, can bear axial force, radial force and overturning moment at the same time, has strong dynamic load.
Application:Ladle turret, Stacker crane, Bucket wheel machine, Solar heliostat Tracking System, port crane, Cabling machine, tower crane, offshore platform, ferris wheel, Palletizing robot, Rotary metallurgical furnace, can packing machine, Wind blade transporter, shield tunneling machine, tube push bench, excavator
